💡 What size of inverter do I need?
Choosing the right size depends on the power requirements of the appliances you expect to operate. Consider both continuous and surge power ratings. The inverter must handle the total load and the starting surge of all connected devices simultaneously.
🔋 Runtime Expectations
The duration depends on your total battery capacity and the load being operated.
💻 Computer Compatibility
Modified sine-wave outputs generally operate laptops and computers. However, certain monitors and laser printers specifically require pure sine wave output for stable operation.
🌡️ Temperature Management
Power generation naturally creates heat. Ensure the unit is installed in a cool, dry location with unobstructed ventilation. If the unit exceeds safe temperatures, it will automatically shut down to cool down.

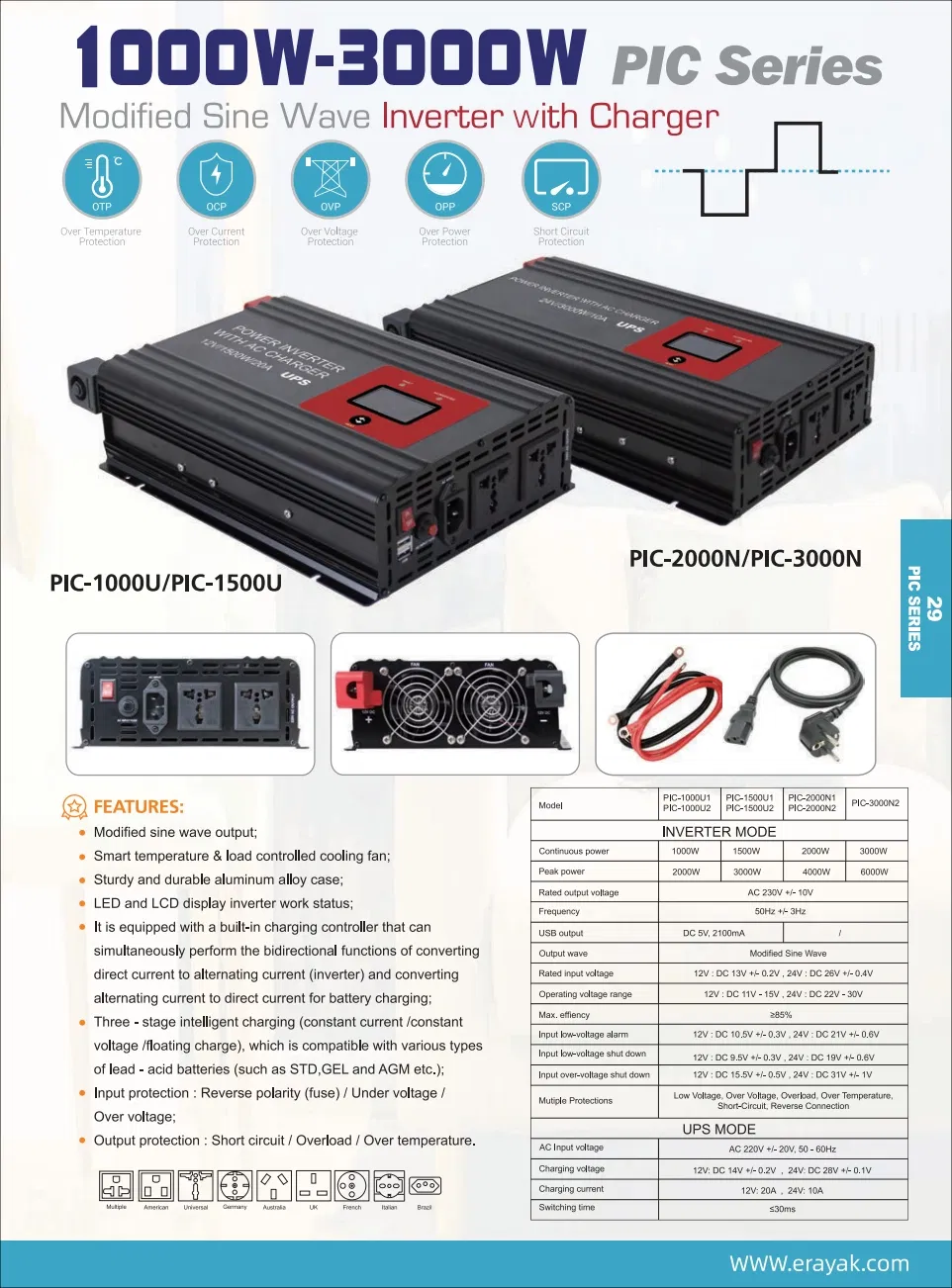

| Model Specification | PIC-1000U Series | PIC-1500U Series | |
|---|---|---|---|
| Continuous Power | 1000W | 1500W | |
| DC Voltage | 12V System | DC 13±0.2V | DC 13±0.2V |
| 24V System | DC 26±0.2V | DC 26±0.2V | |
| AC Voltage (No Load) | AC 220V-240V | AC 220V-240V | |
| Frequency | 50Hz±2Hz | 50Hz±2Hz | |
| Max Efficiency | 87% | 87% | |
| USB Output | 5V, Max 2.1A | 5V, Max 2.1A | |
| Low Voltage Alarm | DC 10.2V-10.8V (12V) | DC 10.2V-10.8V (12V) | |
| Over Load Shutdown | 1050W-1150W | 1550W-1650W | |
| Best Working Temp | 5°C - 35°C | ||
