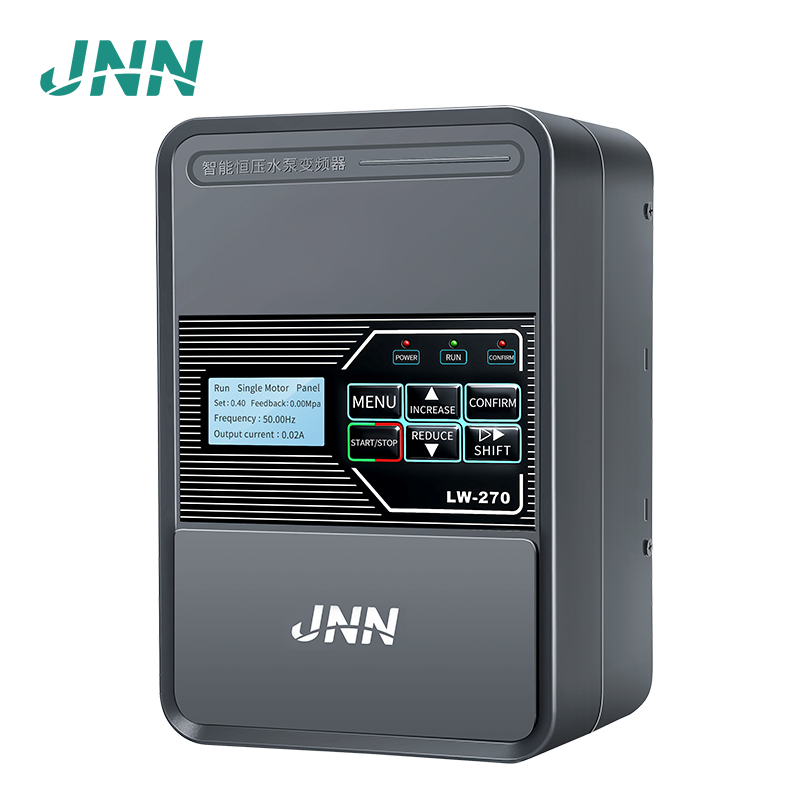

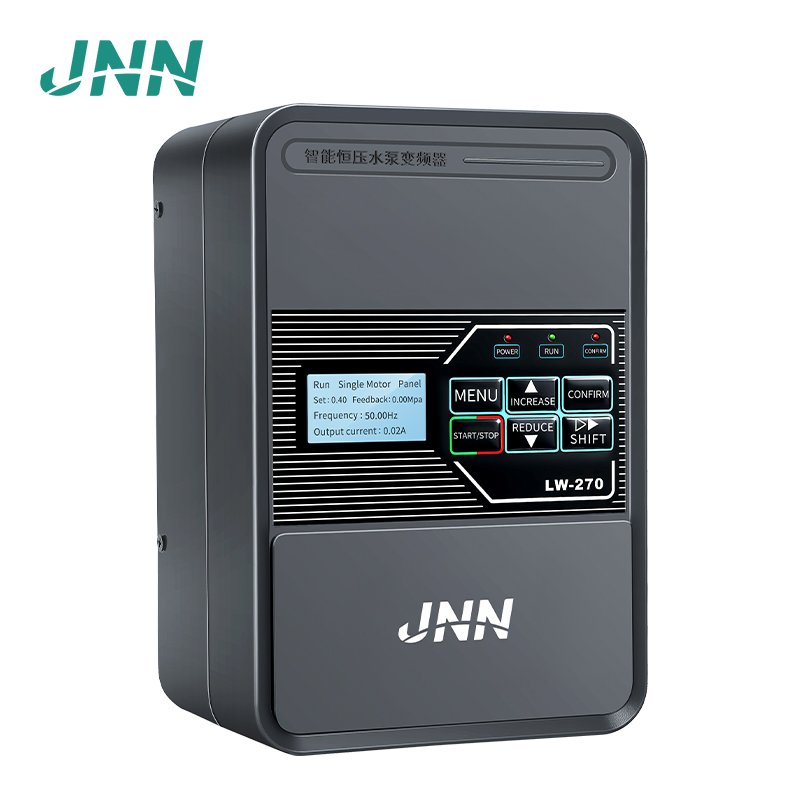

Industrial Motor Pump Frequency Converter AC Inverter VFD Variable Frequency Drive
Industrial Motor Pump Frequency Converter AC Inverter VFD Variable Frequency Drive
Industrial Motor Pump Frequency Converter AC Inverter VFD Variable Frequency Drive
Industrial Motor Pump Frequency Converter AC Inverter VFD Variable Frequency Drive
Industrial Motor Pump Frequency Converter AC Inverter VFD Variable Frequency Drive
1 / 5
Industrial Motor Pump Frequency Converter AC Inverter VFD Variable Frequency Drive
Industrial Motor Pump Frequency Converter AC Inverter VFD Variable Frequency Drive
Industrial Motor Pump Frequency Converter AC Inverter VFD Variable Frequency Drive
Industrial Motor Pump Frequency Converter AC Inverter VFD Variable Frequency Drive
Industrial Motor Pump Frequency Converter AC Inverter VFD Variable Frequency Drive

Industrial Motor Pump Frequency Converter AC Inverter VFD Variable Frequency Drive

Still deciding? Get samples of $ !
Order Sample
Send Inquiry

Product Description

ℹ

Basic Information

Model NO.:
LW-270
Principle of Work:
V/F Control Transducer
Switch Mode:
PWM Control
Main Circuit Type:
Current
Voltage:
Medium Voltage VFD
Function:
Constant Torque Universal Type
Specification:
269x182x135
Origin:
China
HS Code:
9032899099
Production Capacity:
100,000 PCS
📦

Packaging & Delivery

Package Size:
32.00cm * 25.00cm * 19.00cm
Gross Weight:
4.000kg
Transport Package:
Carton
⚙

Product Description

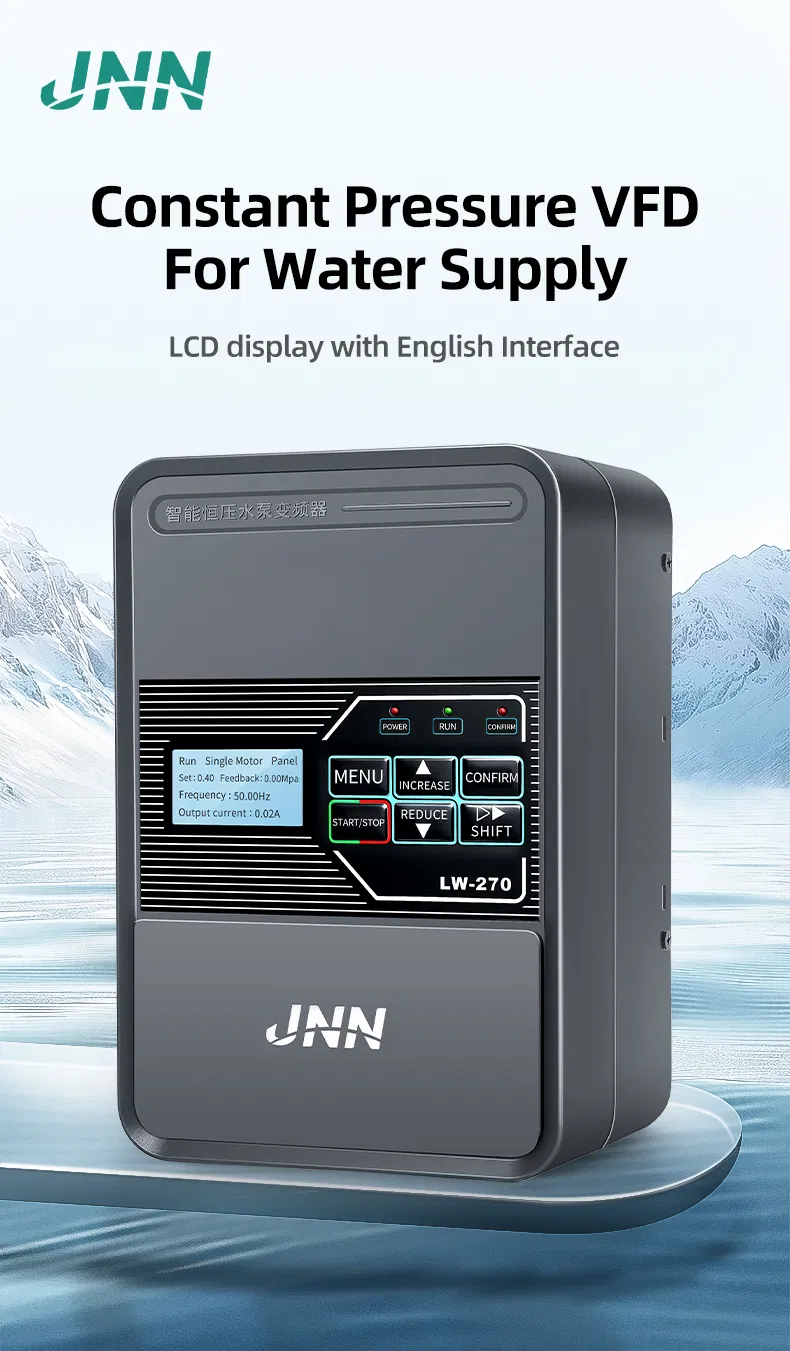

VFD Product View 1

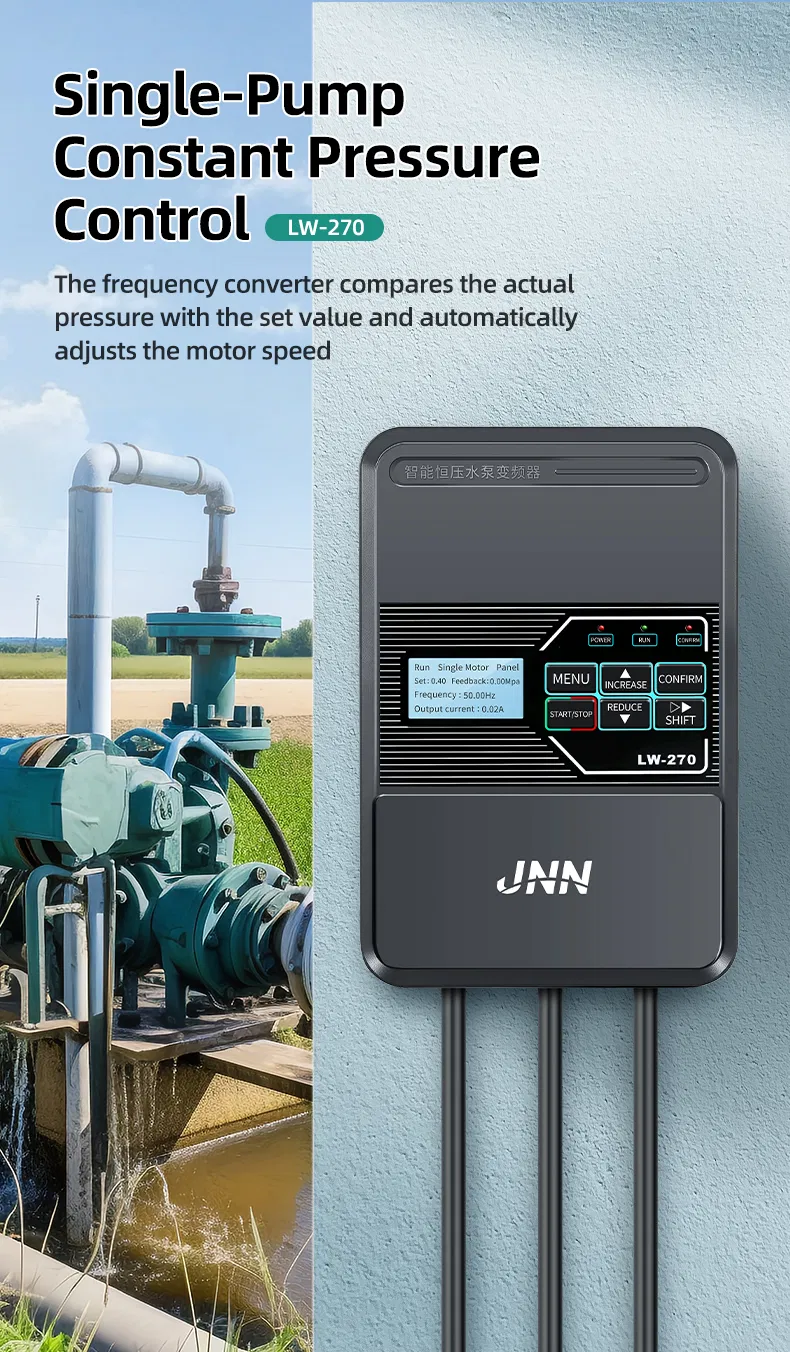

VFD Product View 2

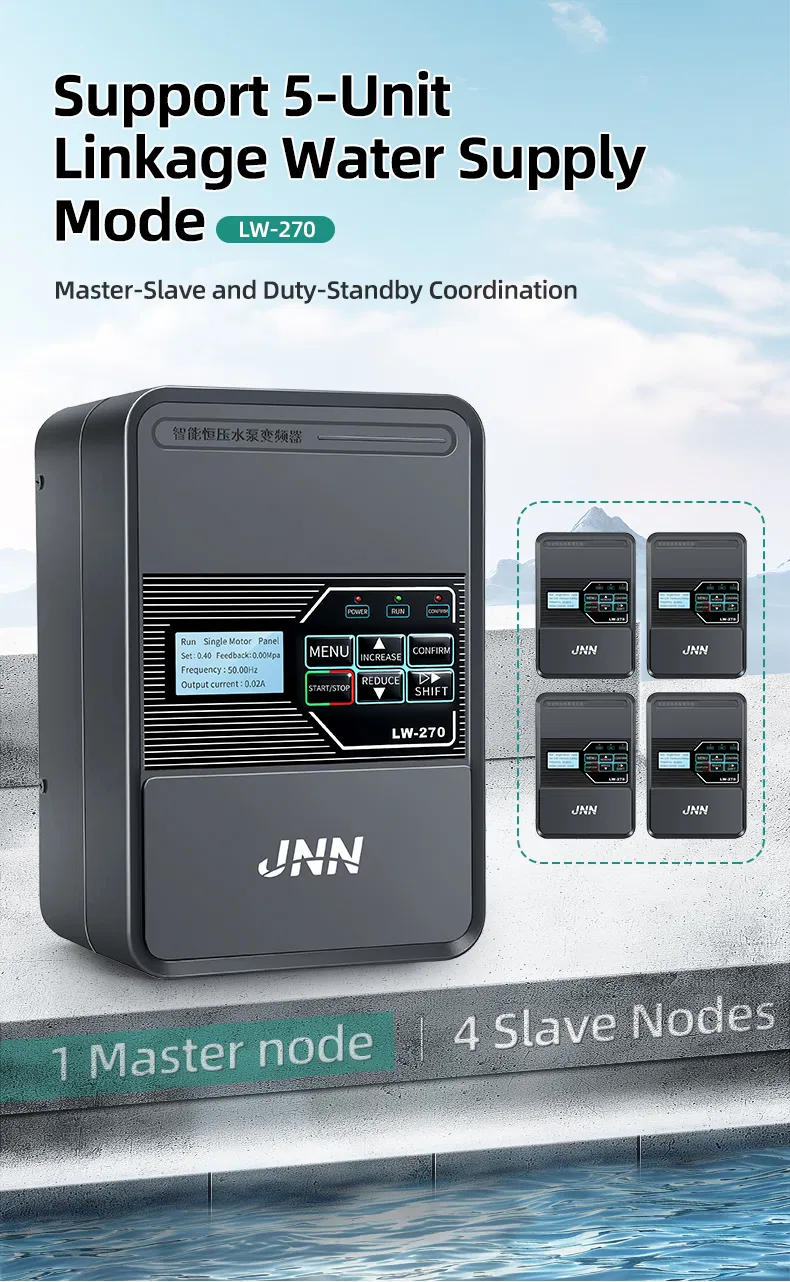

VFD Product View 3
Item Specification
Input Rated voltage/freq 3-phase: 380V 220V 50/60Hz
Voltage fluctuations +10%, -15%
Freq fluctuations ±5%
I/O Interface Digital input 3-channel optocoupler isolated input
Analog input AVI: 0V-10V / ACI: 4-20mA
Relay output 1 normally open contact, 5A 30VDC/250VAC
Communication 2-channel: RS485 MODBUS
Functions Output frequency 0.00-600.00Hz
Start stop mode Keyboard, External terminal (X1-COM), 485 Communication
Protection Conventional Overvoltage, low voltage, overcurrent, overload, overheating, phase loss
System Water shortage protection, outlet overpressure, sensor abnormalities
Environment Temperature -10°C to +40°C (Up to 50°C with derating)
Humidity 5—95RH (No condensation)
Vibration Below 5.9 m/s² (0.6g)
VFD Technical Detail 1
VFD Technical Detail 2

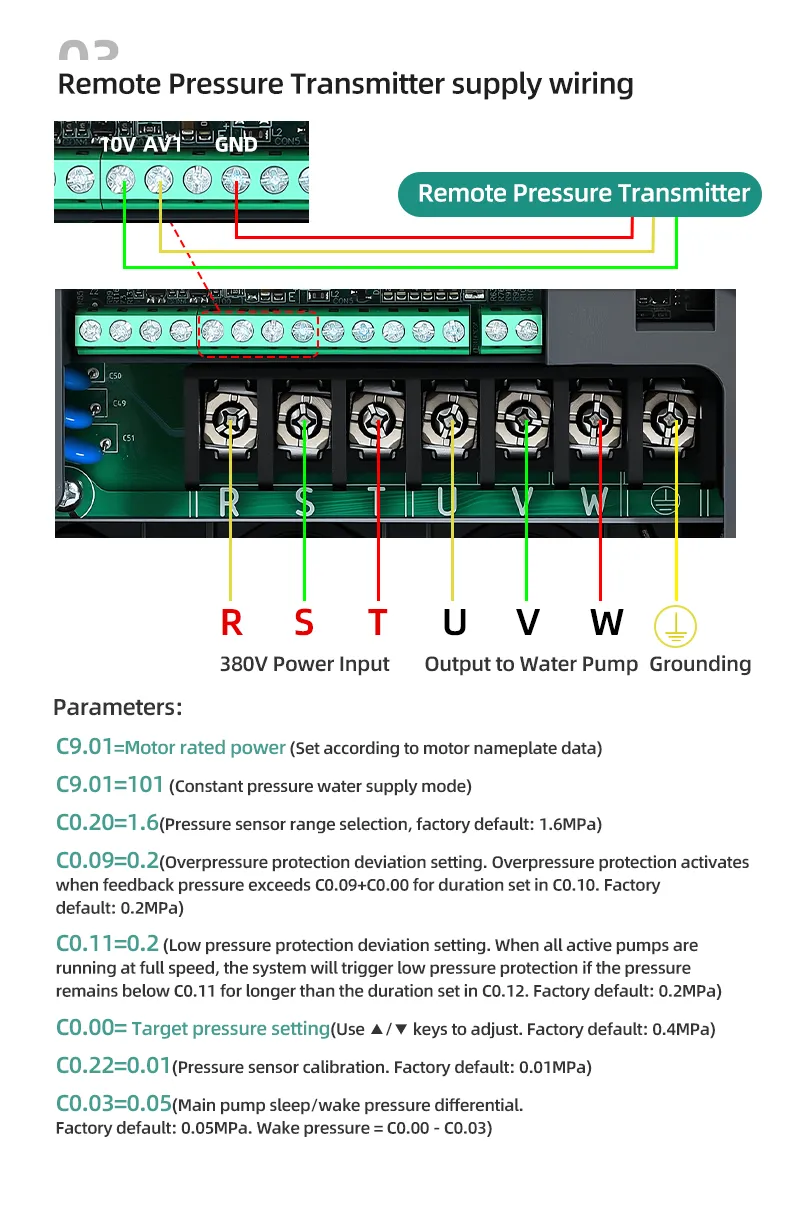

VFD Technical Detail 3
VFD Application
VFD Dimensions

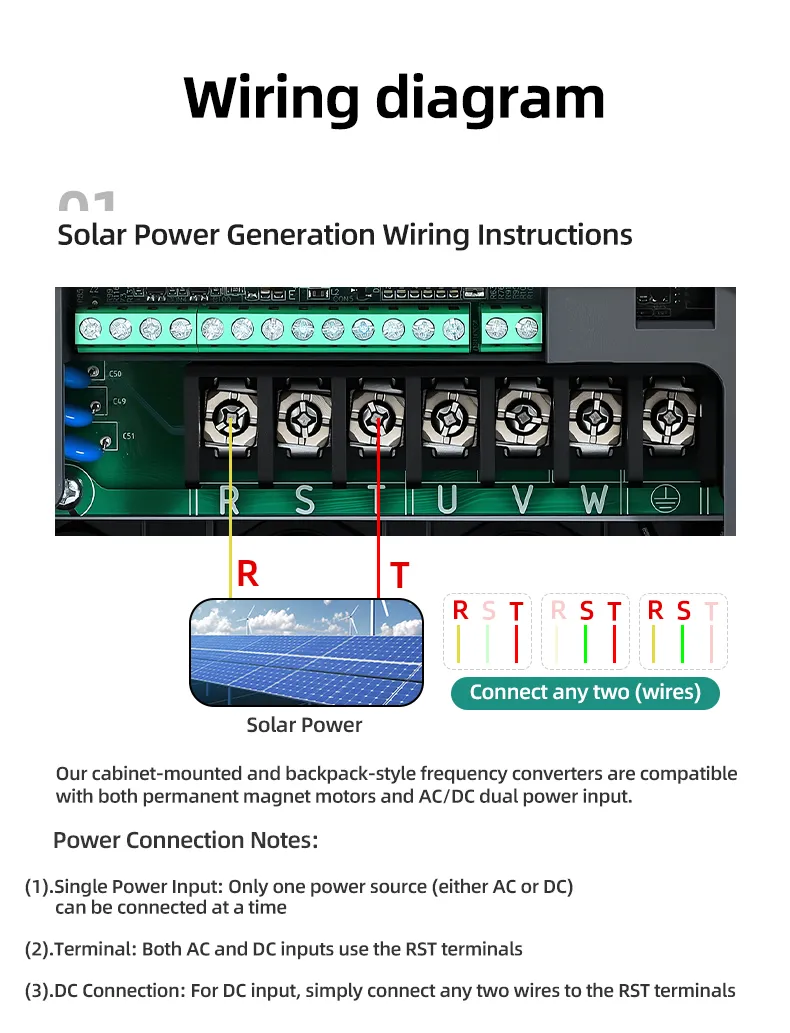

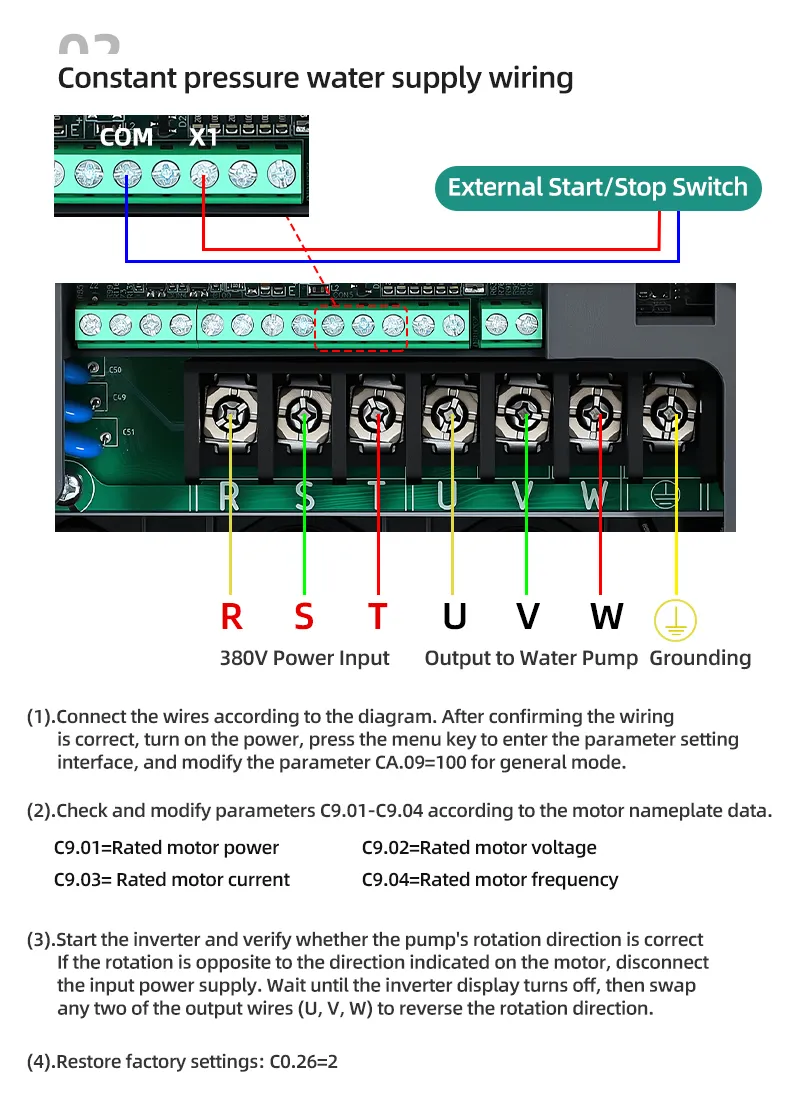

VFD Wiring
Industrial Usage
Control Panel

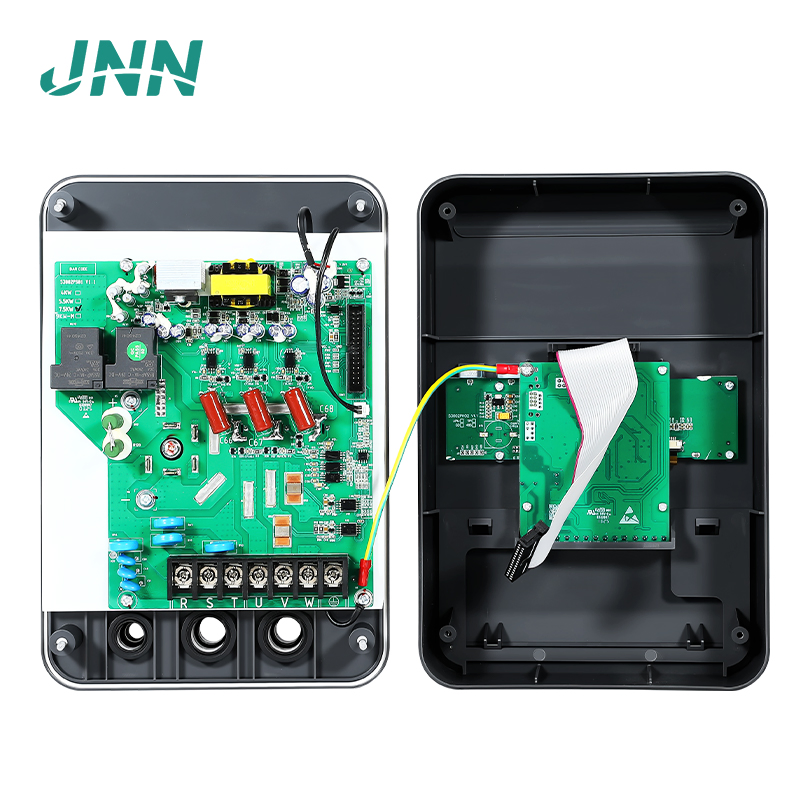

Internal Structure
❓

Frequently Asked Questions

What is the output frequency range of the LW-270 VFD?
The LW-270 supports an output frequency range from 0.00Hz up to 600.00Hz, making it suitable for high-speed motor control.
What types of motors are compatible with this frequency converter?
It is designed for three-phase induction asynchronous motors and three-phase AC permanent magnet synchronous motors.
Does the device include built-in protection features?
Yes, it features comprehensive protection including overvoltage, low voltage, overcurrent, overload, overheating, and phase loss protection.
How can the VFD be started or stopped?
It supports three modes: Operation keyboard control, External terminal (X1-COM) control, and RS485 MODBUS communication control.
What are the environmental requirements for installation?
It should be installed in a location without direct sunlight, corrosive gases, or oil mist, with a temperature range between -10°C and +40°C.
Does it support remote monitoring?
Yes, the device is equipped with a 2-channel RS485 MODBUS communication interface for remote control and system integration.
ac inverter, pump inverter, frequency drive, vfd inverter, ac frequency converter, three phase inverter, motor driver, ac motor driver, water pump inverter, solar pump inverter, constant pressure pump control, variable speed driver, industrial controls vfd.
