220V off-Grid Industrial Frequency Solar Inverter 5kw Solar Power Inverter 1kw 4kw 8kw 10kw Built-in WiFi

1 / 5

220V off-Grid Industrial Frequency Solar Inverter 5kw Solar Power Inverter 1kw 4kw 8kw 10kw Built-in WiFi

Customization:	Available
After-sales Service:	1 Year
Warranty:	1 Year

Send Inquiry

Product Description

Basic Information

Model NO.

ISP

Nature of Source

Active Inverter

Phase

Single

Output Power

>1000W

Certification

SAA, CE, ISO9001, CCC

Type

DC/AC Inverters

Power Source

Solar Power

Circuit Topologies

Full-Bridge Type

Wave String

Sine Wave Inverter

HS Code

8504403090

Capacity

60,000PCS/Year

Origin

China

★

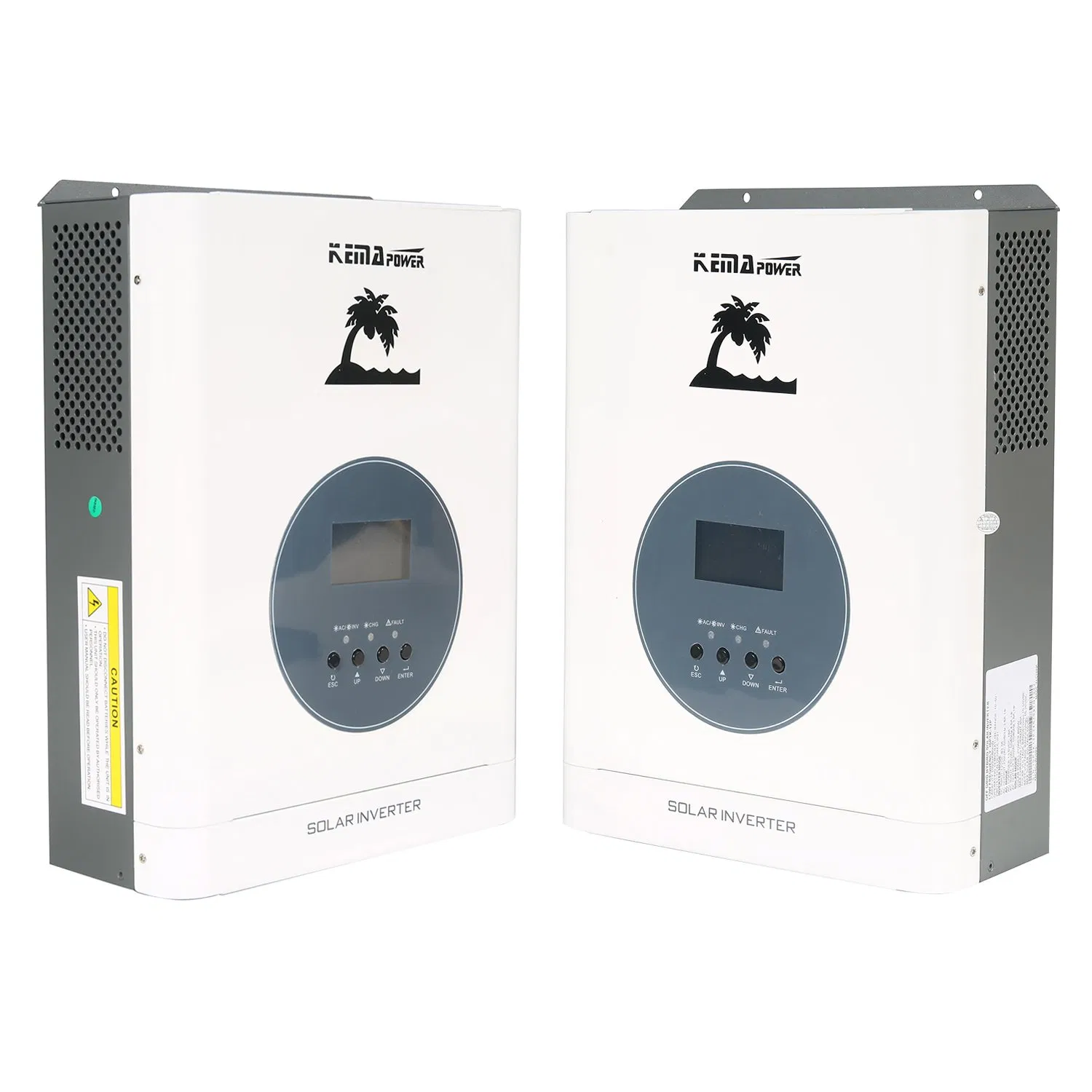

Off Grid Hybrid Solar Inverter ISP 1KVA-12.5KVA

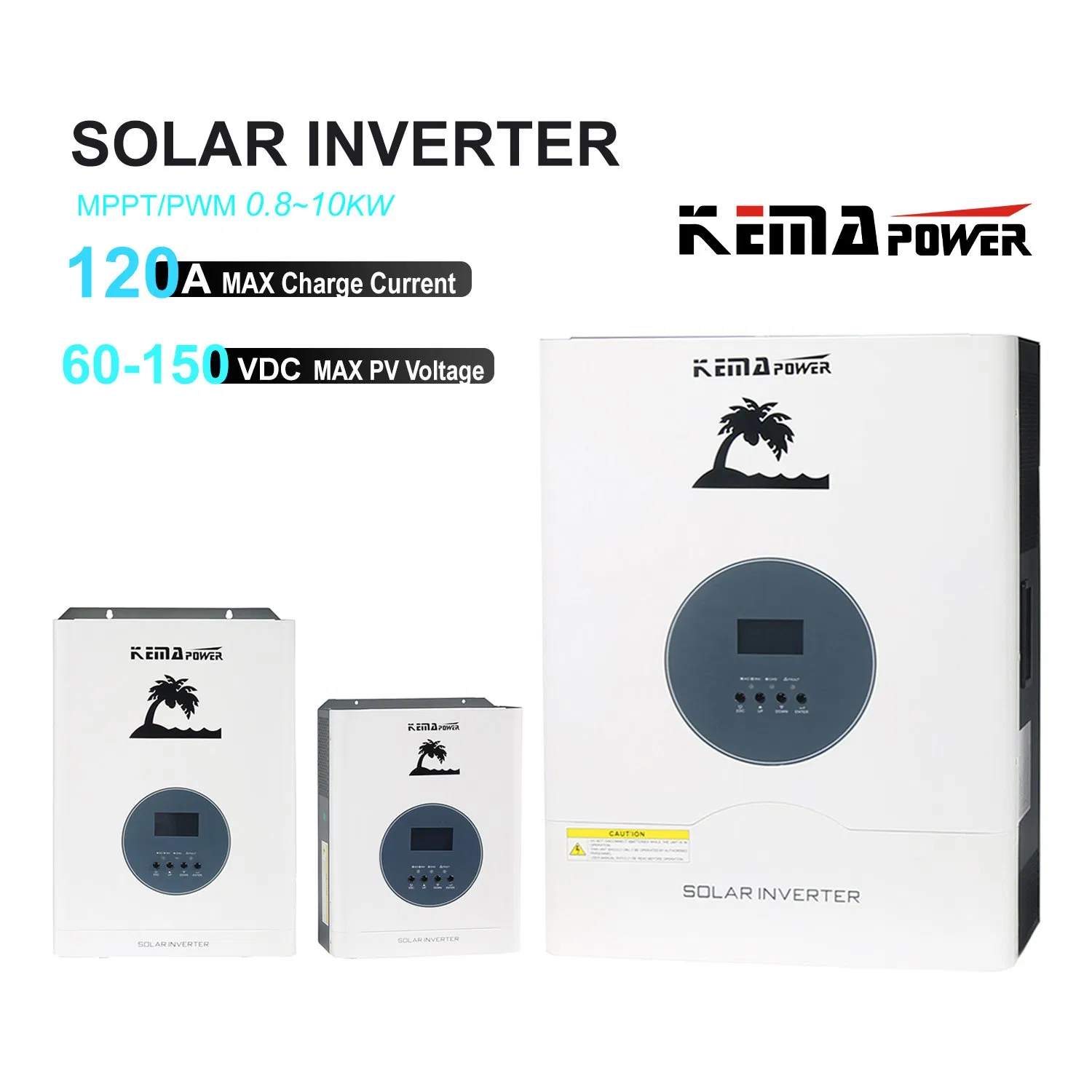

Low frequency off grid hybrid solar Inverter 1KVA 0.8KW to 12.5KVA 10KW
3 in 1: Power Inverter + Grid Charger + PWM or MPPT controller
Toroidal transformer, static consumption 50% less than high frequency design

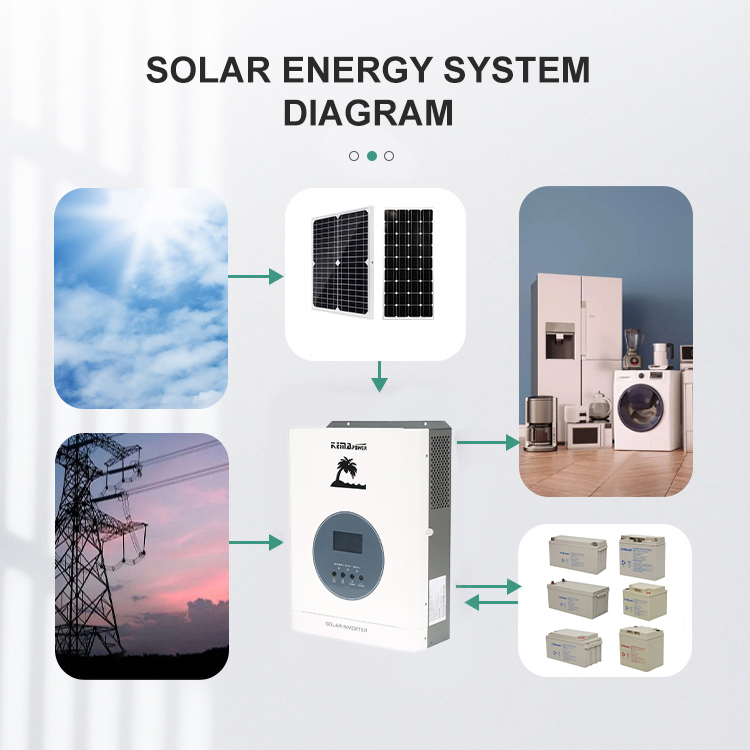

Selectable Utility, Solar or Battery priority, Power Saver Modes
Adjustable Charge Current & Voltage, selectable Lead acid / Lithium battery
Support inverter and Lifepo4 BMS communication (2-12.5KVA)

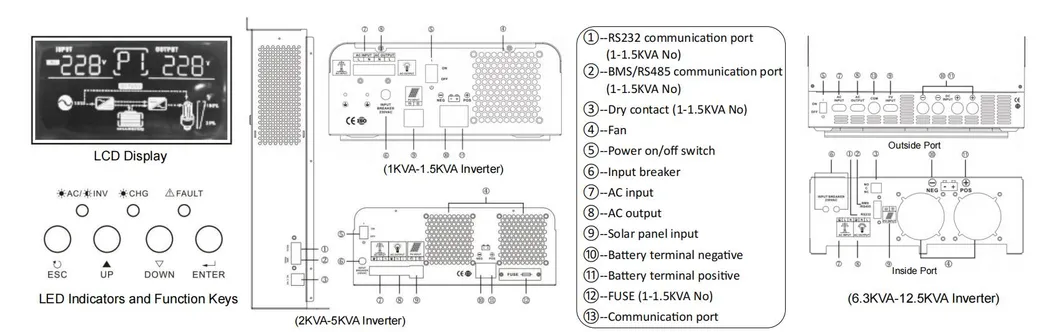

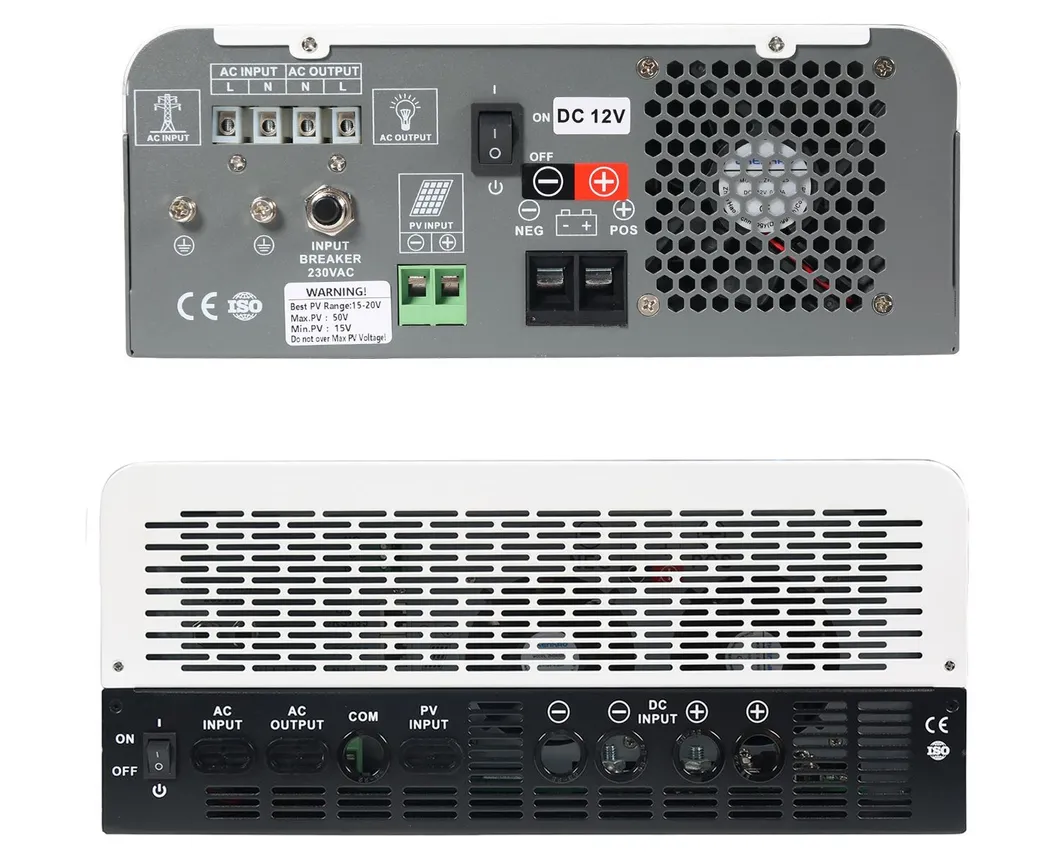

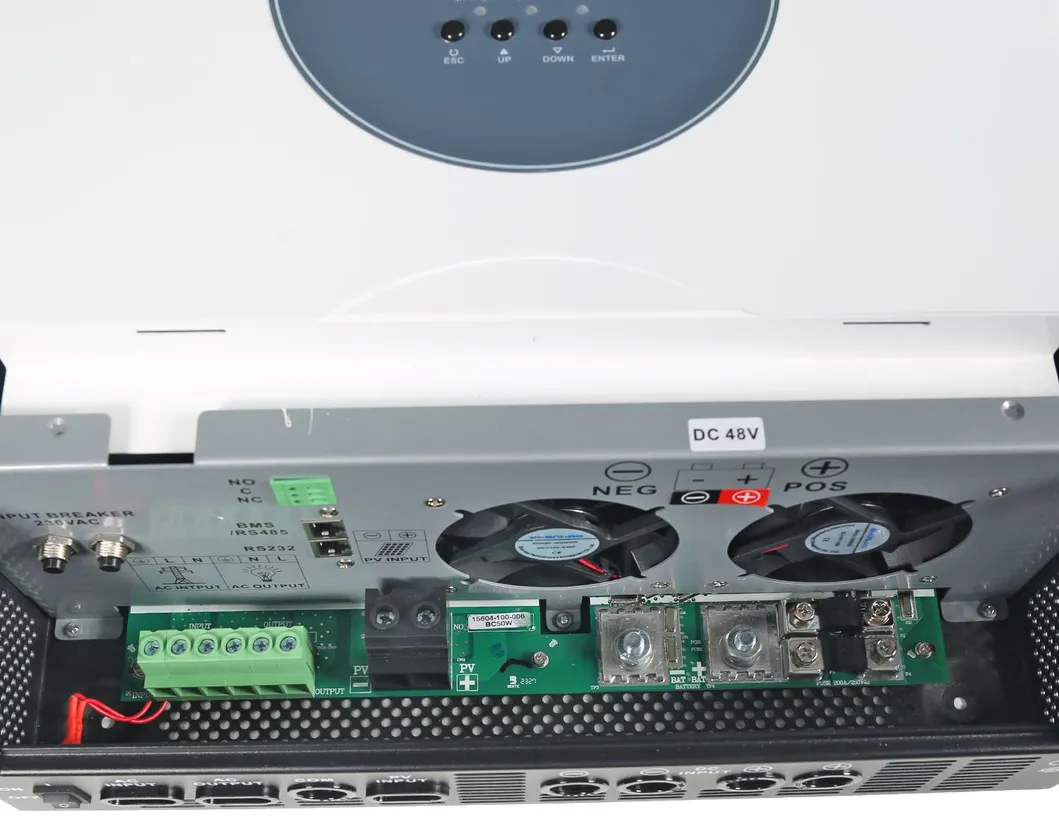

RS232, BMS/RS485, Dry Connector Communication (2-12.5K)
WiFi Plug Option for Mobile App, Automatic generator station option
Unattended function, Auto restart by grid resume or Battery

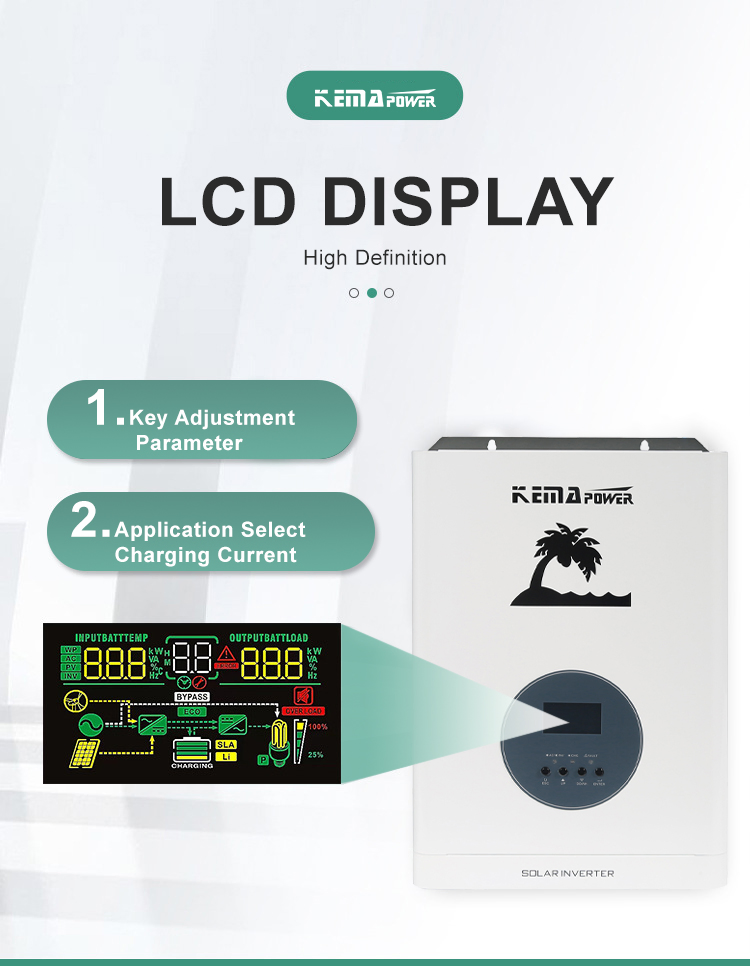

Display and setup parameters by LCD with UPS design (10ms transfer)
Comprehensive protection for overload, short-circuit, battery low and more

⚙

Technical Specifications

Model Name		ISP1K-12A	ISP1.25K-12A	ISP1.5K-12A	ISP2K-24A	ISP3K-24A	ISP5K-48A	ISP10K-48A	ISP12.5K-48A
INPUT	Rated Power	1KVA / 0.8KW	1.3KVA / 1KW	1.5KVA / 1.2KW	2KVA / 1.6KW	3KVA / 2.4KW	5KVA / 4KW	10KVA / 8KW	12.5KVA / 10KW
	Voltage	110V or 220V (Range: 77-132VAC or 154-275VAC)
OUTPUT	Waveform	Pure Sine Wave
	Efficiency	>98%
	Transfer Time	<8ms
SOLAR	Type	PWM (MPPT optional)				MPPT only
	Max PV Power	800W			1600W		6400W

🖼

Product Display

Frequently Asked Questions

What battery types are compatible with the ISP inverter?

The ISP series supports adjustable charging for Lead-acid (GEL, FLD) and Lithium (Lifepo4) batteries. It also features BMS communication for 2-12.5KVA models.

How many working modes does the inverter support?

It supports three selectable priority modes: Utility Priority (UTI), Solar Priority (SOL), and Battery Priority (SBU) to optimize energy usage.

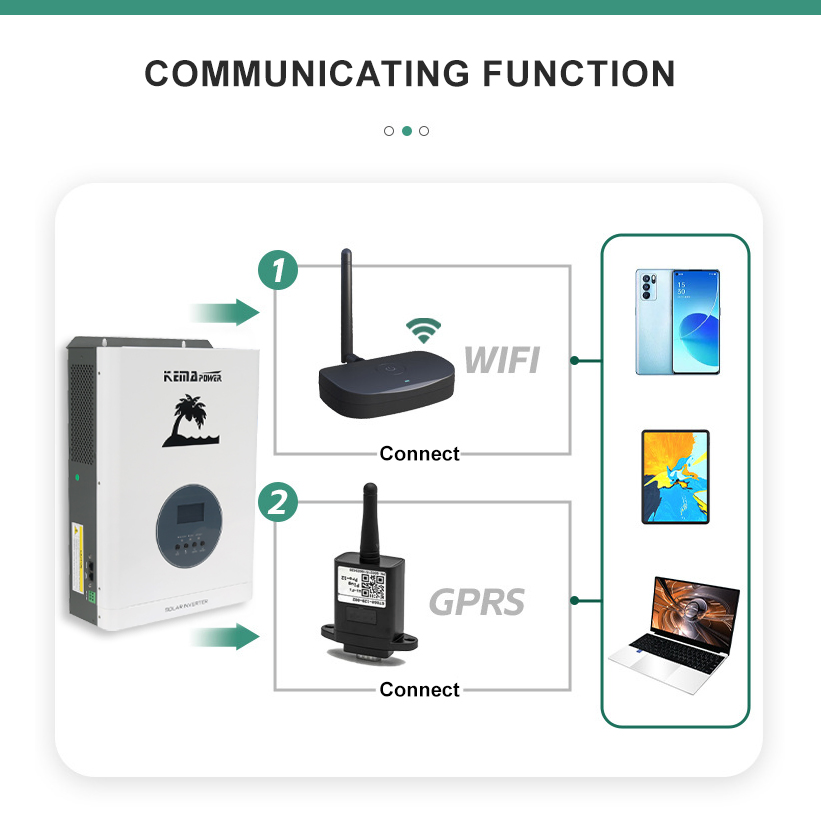

Does the inverter support remote monitoring?

Yes, there is a WiFi/GPRS plug option available which allows users to monitor and manage the system via a mobile app.

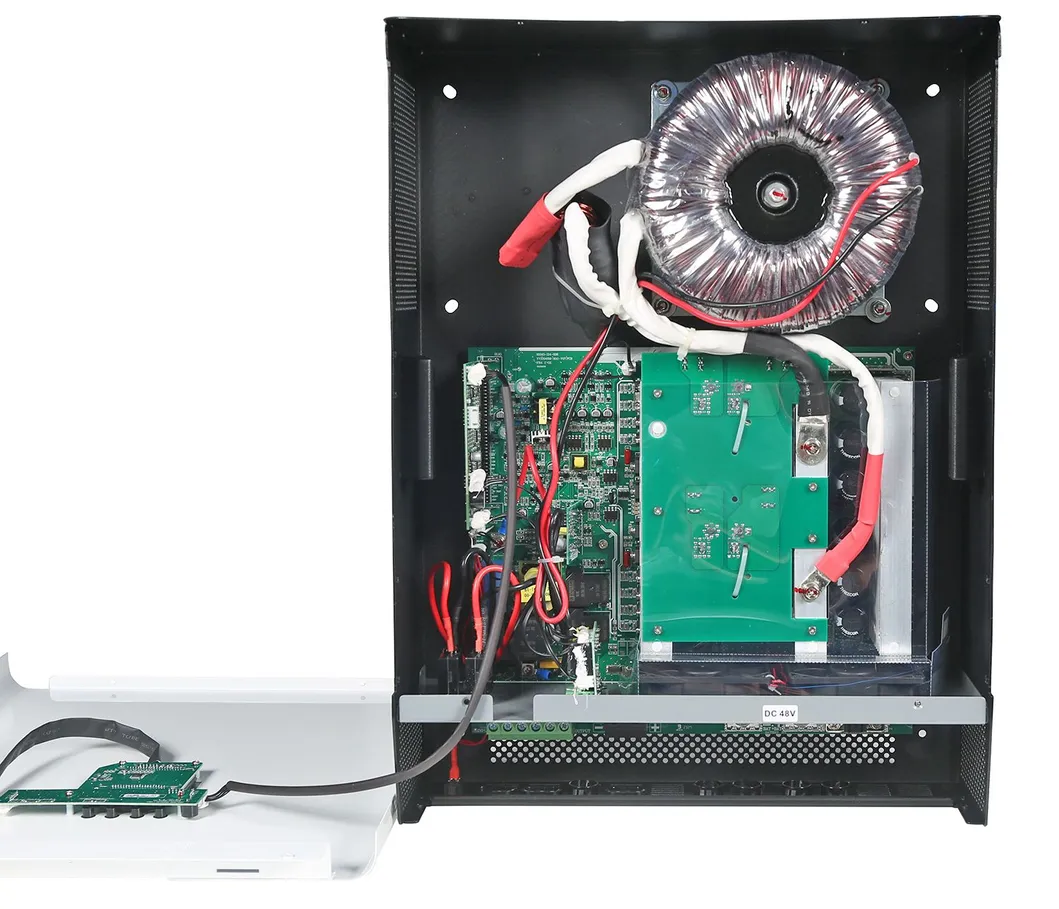

What is the advantage of the Toroidal transformer design?

The toroidal transformer design reduces static power consumption by up to 50% compared to traditional high-frequency designs, making it more efficient.

What kind of protection does the system offer?

The inverter includes comprehensive protection against overload, short-circuit, low battery voltage, and DC high voltage, ensuring long-term reliability.

Can it be used as a UPS?

Yes, it features a UPS design with an automatic transfer time of less than 10ms, ensuring your appliances stay powered during grid transitions.
