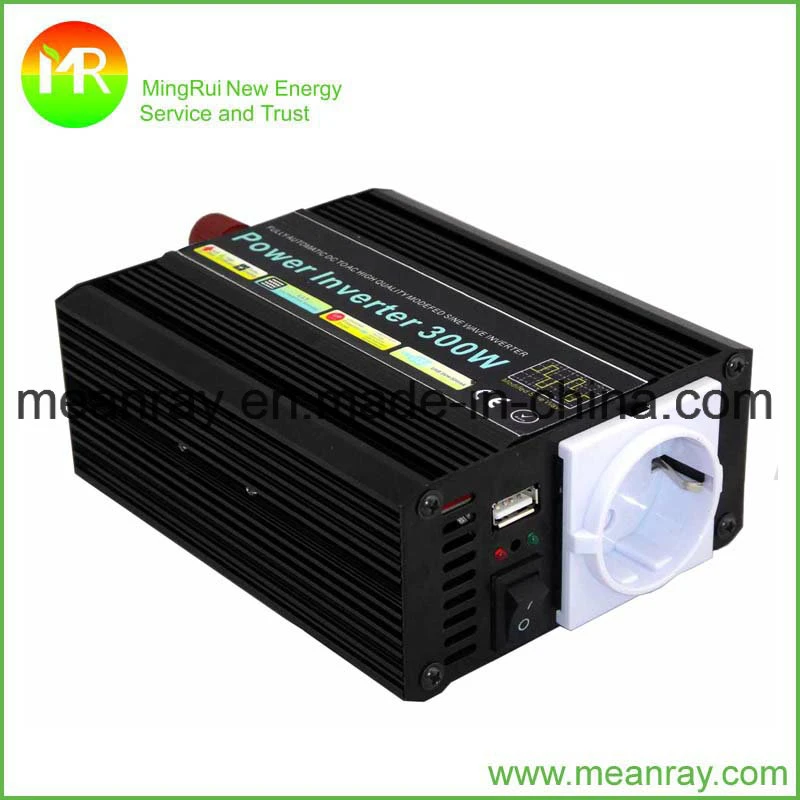

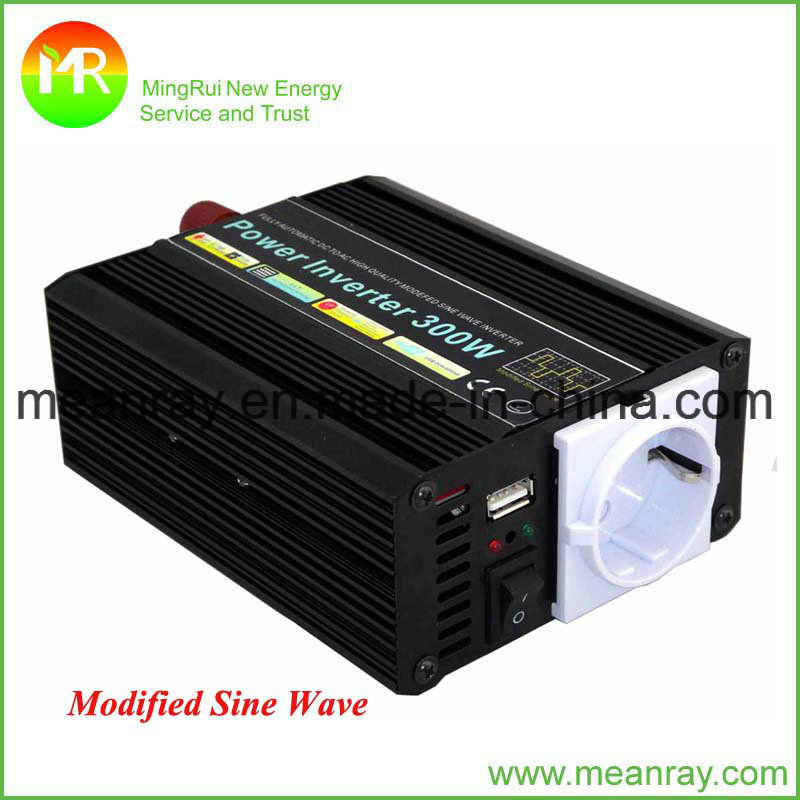

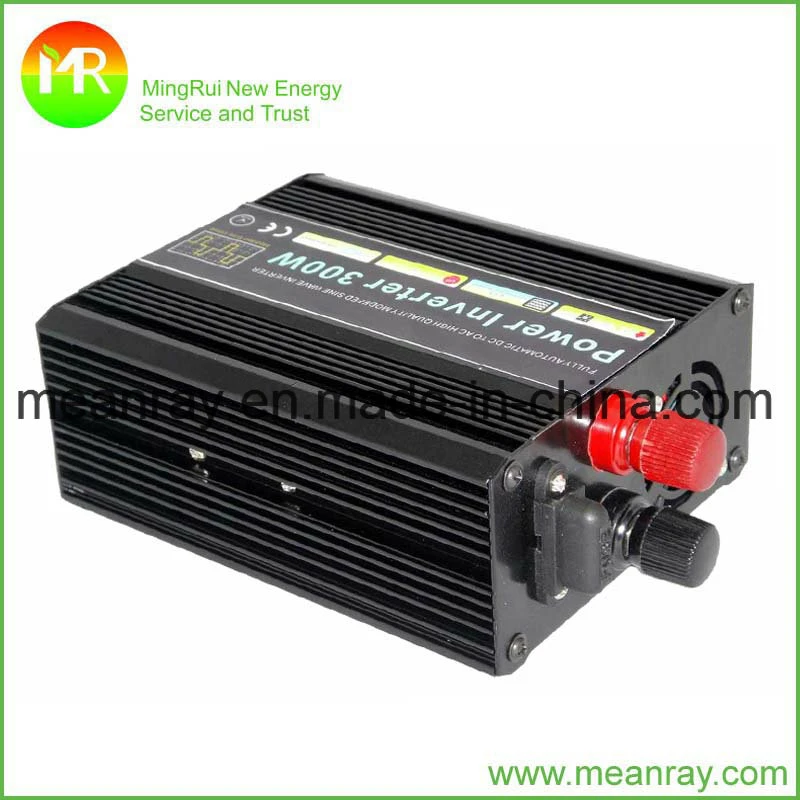

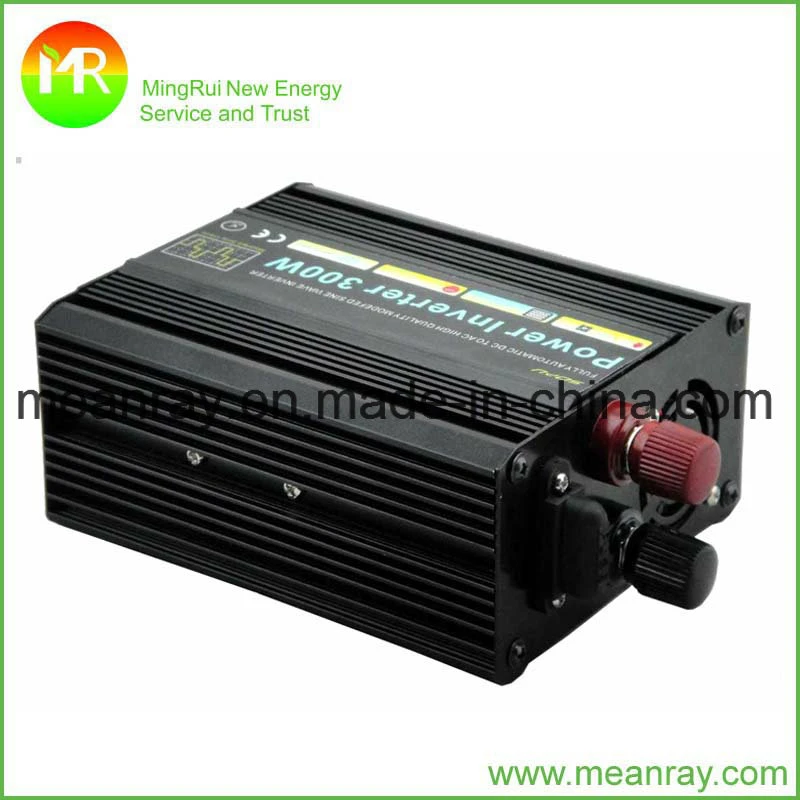

off-Grid Solar Inverter Modified Sine Wave 300W Inverter

1 / 4

off-Grid Solar Inverter Modified Sine Wave 300W Inverter

Still deciding? Get samples of $ !

Request Sample

Send Inquiry

Product Description

Basic Information

Model NO.

MRM300-1

Output Power

201 - 300W

Grid Type

Off-Grid Inverter

Output Type

Single

Circuit Topologies

Full-Bridge Type

Nature of Wave String

Sine Wave Inverter

Type

DC/AC Inverters

Warranty

18 Months

Color

Silver/Black

Weight

0.95kgs

Frequency

50/60 Hz

USB Output

5V 500mA

Specification

(137+25)*112*58mm

HS Code

8504403090

Product Description

Product Name: 300W Modified Sine Wave Power Inverter

Model: MRM-300

Continuous Power: 300 W

Max. Output Surge: 600 W

DC Input Voltage: 12V or 24V

Dimensions (mm): (137+25) x 112 x 58

Weight: 0.95kg

Technical Specifications

Model	Specifications	MRM-300-12	MRM-300-24
Output	Continuous Output	300W
	Surge Power	600W
	Voltage	100V / 110V / 115V / 120V / 200V / 220V / 230V / 240V
	Frequency	50 Hz or 60Hz ± 1Hz
	Wave Form	Modified Sine Wave
	USB Output	DC 5V ± 5% 500mA
Input	Voltage	12V	24V
	Low Battery Shutdown	10V ± 0.3V	20V ± 0.6V
	High Battery Shutdown	Over 16V	Over 32V
Protection	Efficiency	Over 85%
	Temperature Protection	>65ºC shutdown
	Short-circuit / Overload	Yes

Product Features

Digital microprocessor design
Short circuit alarm and protection
Overload alarm and protection
Reverse polarity protection
Intelligent over temperature alarm and shutdown
High and low battery voltage alarm and shutdown
Intelligent disperses heat system
High surge capacity for starting demanding loads
Stable output voltage and frequency
Low no load current draw
Advanced SMT technology
Modified Sine Wave output

Interface & Packing

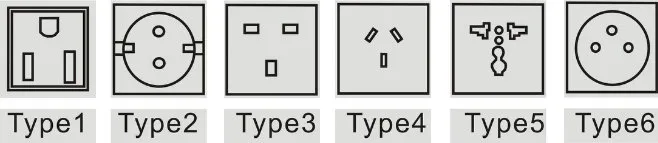

Output Receptacles:

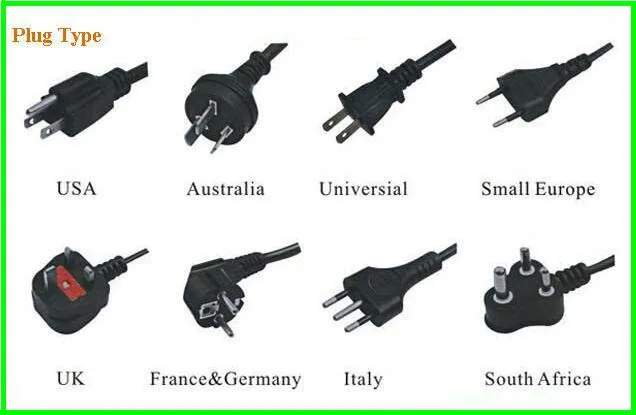

Plug Types Available:

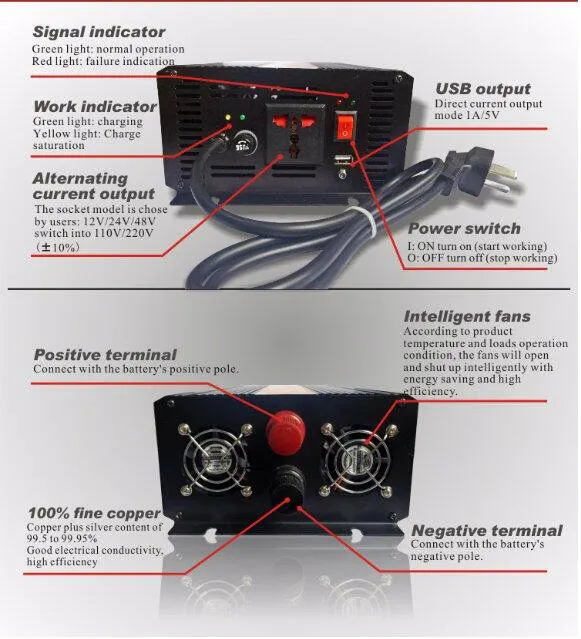

Input/Output Introduction:

Packing Details:

Shipping Information:

Frequently Asked Questions

What is the continuous output power of the MRM-300?

The inverter provides a stable continuous output power of 300W, with a surge capacity of up to 600W for starting demanding loads.

What type of wave form does this solar inverter produce?

This is a Modified Sine Wave inverter, designed for efficient off-grid power conversion for various electronic devices.

Does the inverter include safety protection features?

Yes, it features multiple protections including short-circuit, overload, reverse polarity, high/low battery voltage shutdown, and intelligent over-temperature protection.

Can I charge mobile devices directly from the inverter?

Yes, the inverter is equipped with a USB output port providing DC 5V 500mA, suitable for small electronic devices.

What are the input voltage options available?

The MRM-300 series comes in two standard DC input versions: 12V and 24V. Please ensure you select the model that matches your battery system.

What is the warranty period for this product?

This off-grid solar inverter comes with an 18-month warranty covering manufacturing defects and performance stability.
