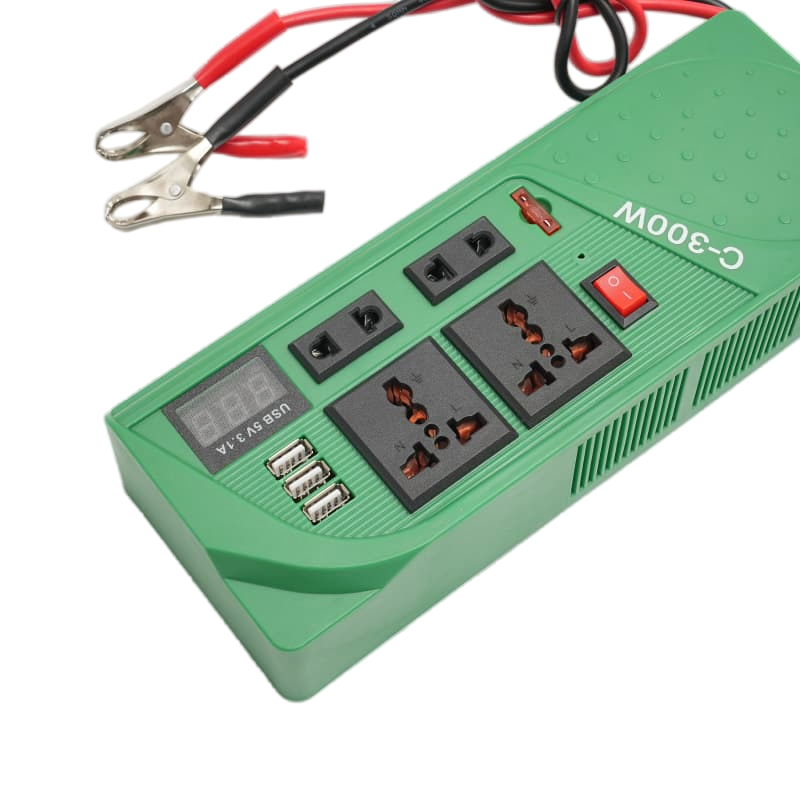

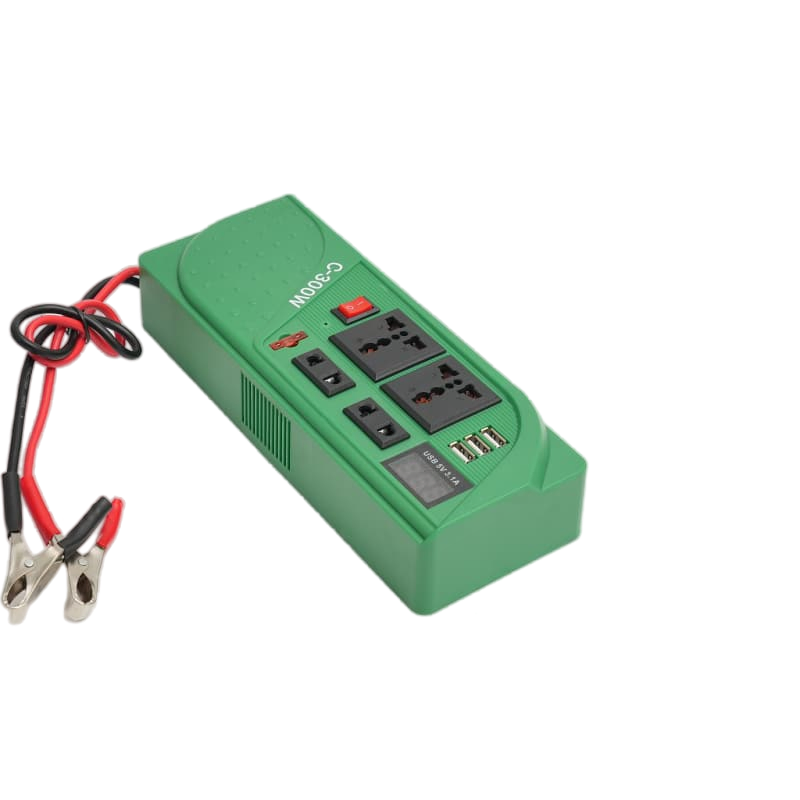

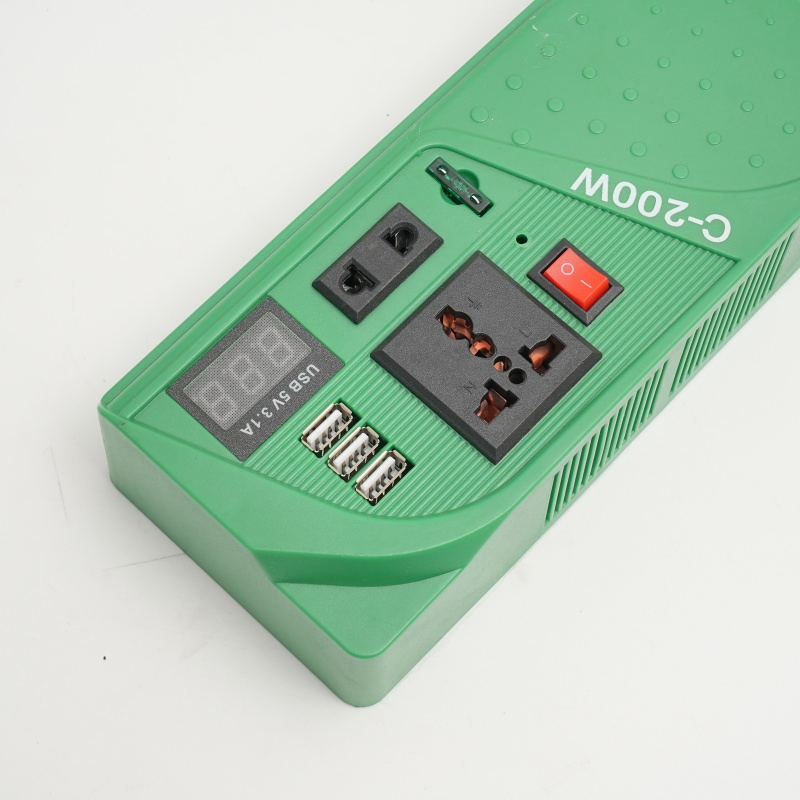

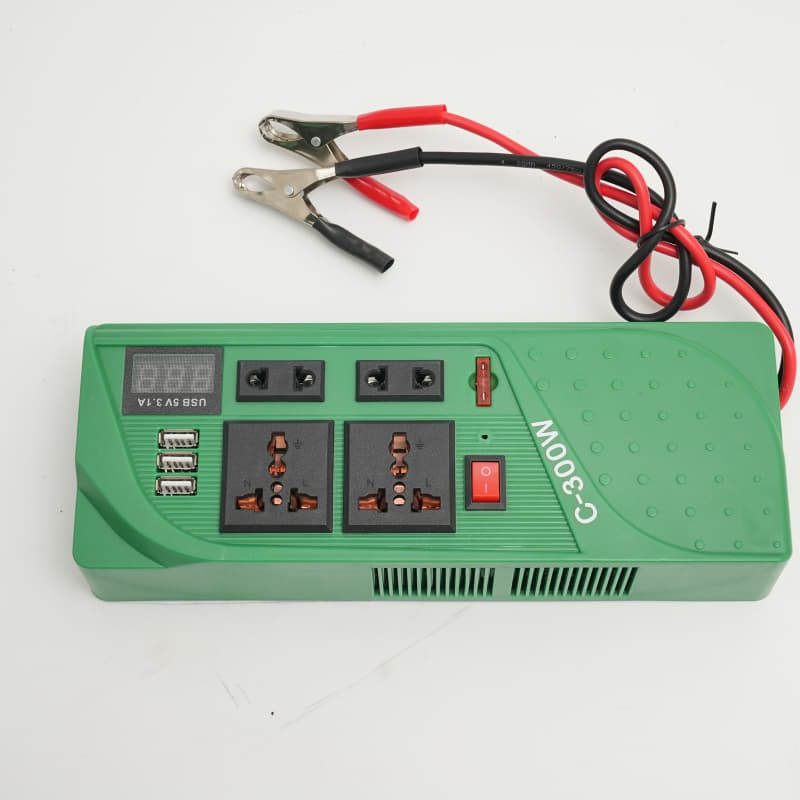

300W Modified Sine Wave Inverter for Cars and Trucks

1 / 5

300W Modified Sine Wave Inverter for Cars and Trucks

Customization:	Available
Nature of Source Flow:	Active Inverter
Certification:	CE, SAA

Send Inquiry

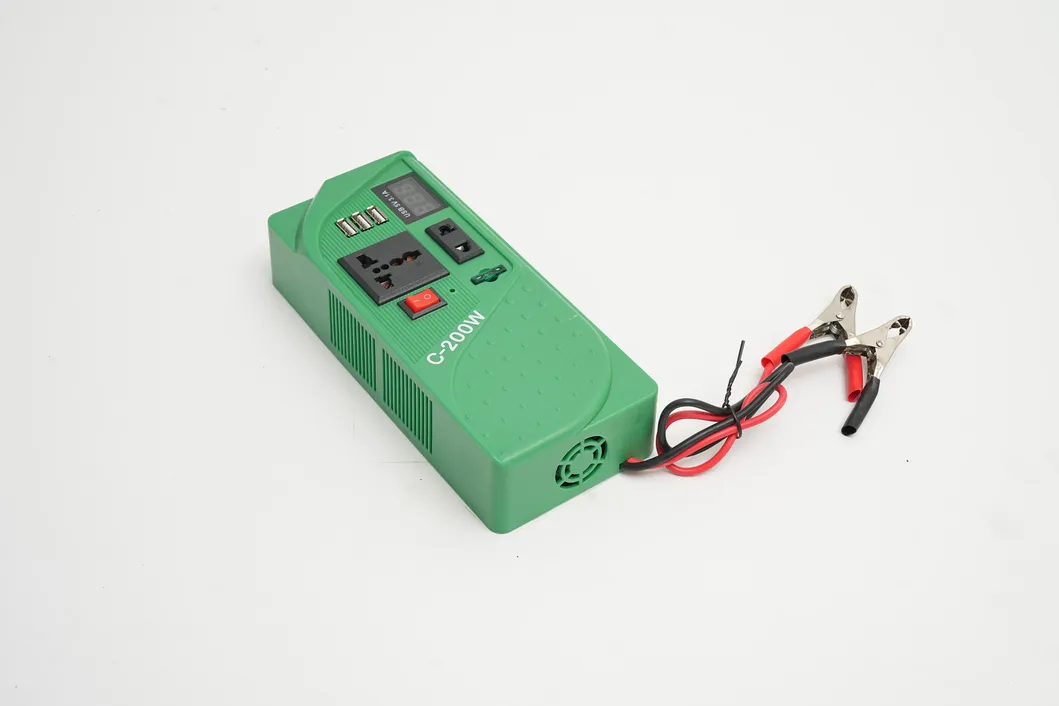

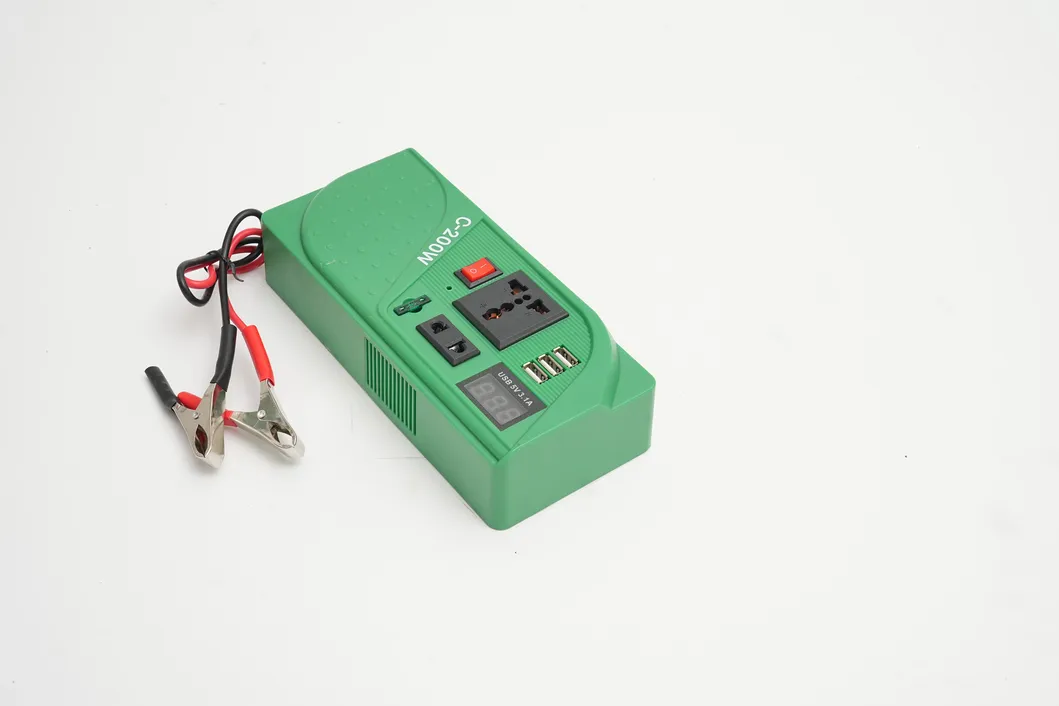

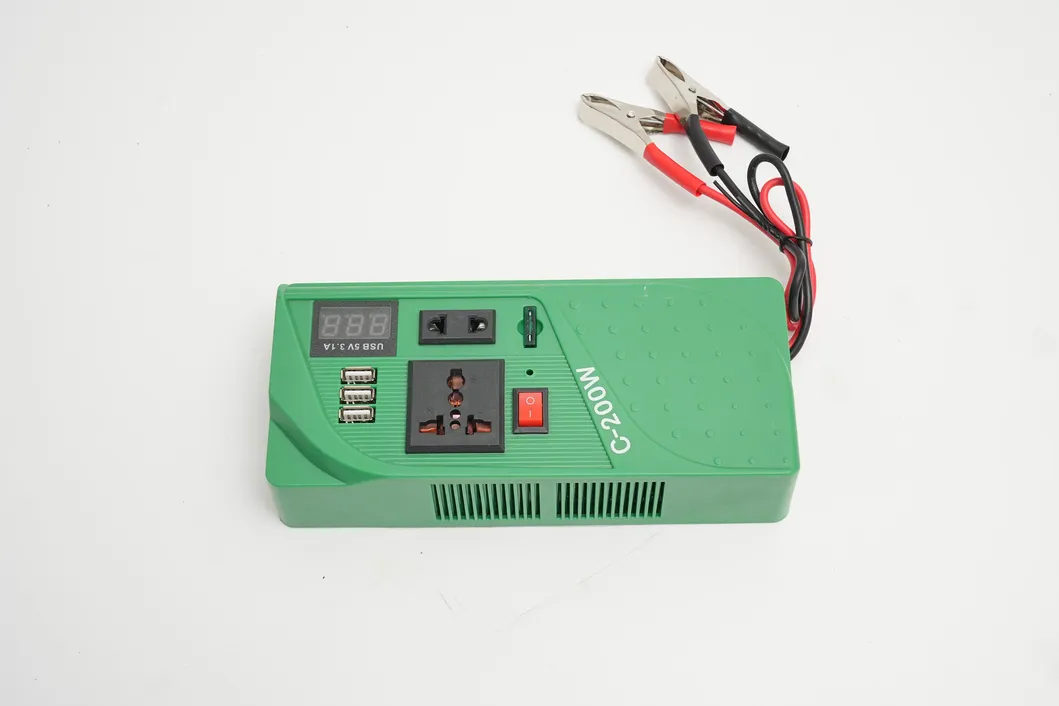

Product Description

Overview & Basic Info

Model NO.

C1191

Output Power

201 - 300W

Grid Type

off-Grid Inverter

Output Type

Single

Circuit Topologies

Push-Pull Type

Nature of Wave

Sine Wave Inverter

Type

DC/AC Inverters

Gross Weight

0.7 Kg/ PC

Transport Package

Box

Specification

257*98*52mm

HS Code

8504403010

Production Capacity

5,000,000

Technical Specifications

Model Number	C1191
Continuous power	300W
Peak power	600W
Overload protection	320W
Rated input voltage	12V
Rated output voltage	220V/110V
Output frequency	50HZ/60HZ
Static current	≤0.6A
Full load efficiency	≥85%
Short circuit protection	Yes
Input overvoltage protection	15V
Input undervoltage protection	9.5V
Undervoltage recovery	11.5V
Over Temperature protection	Yes
Reverse Polarity Protection	Blown fuse

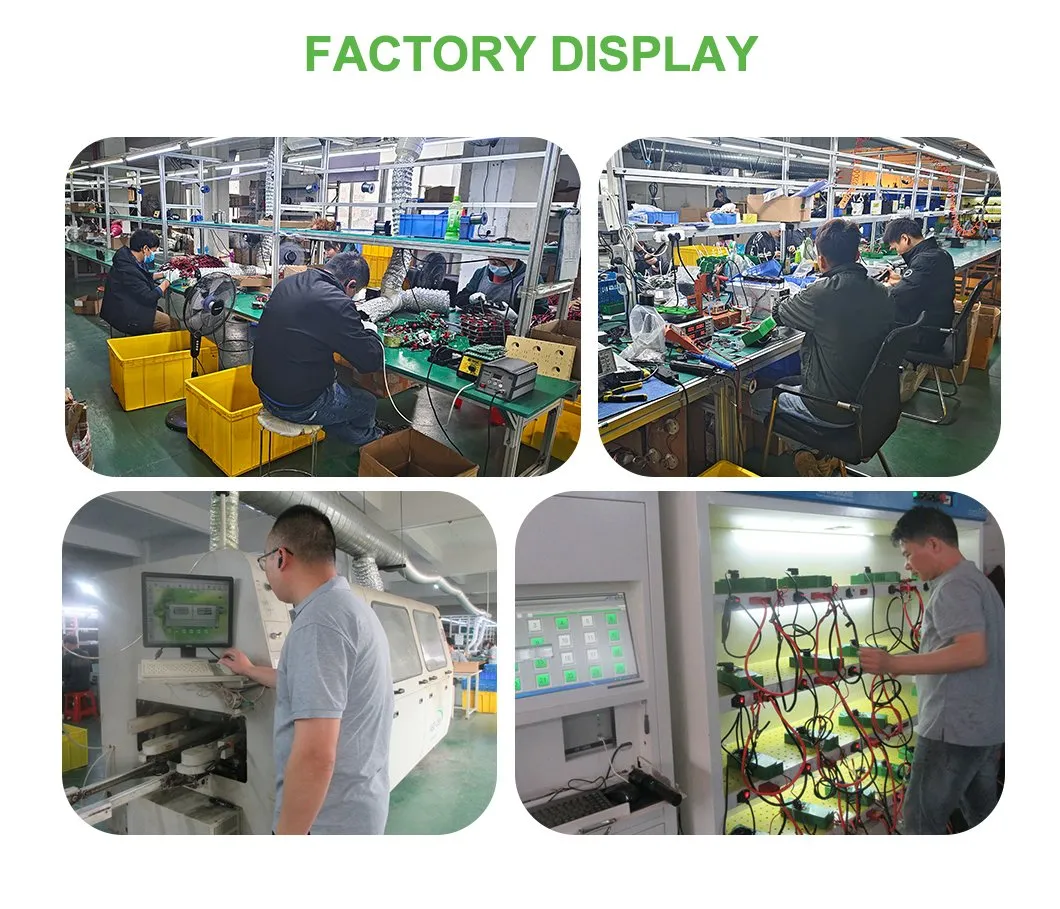

Manufacturing & Quality

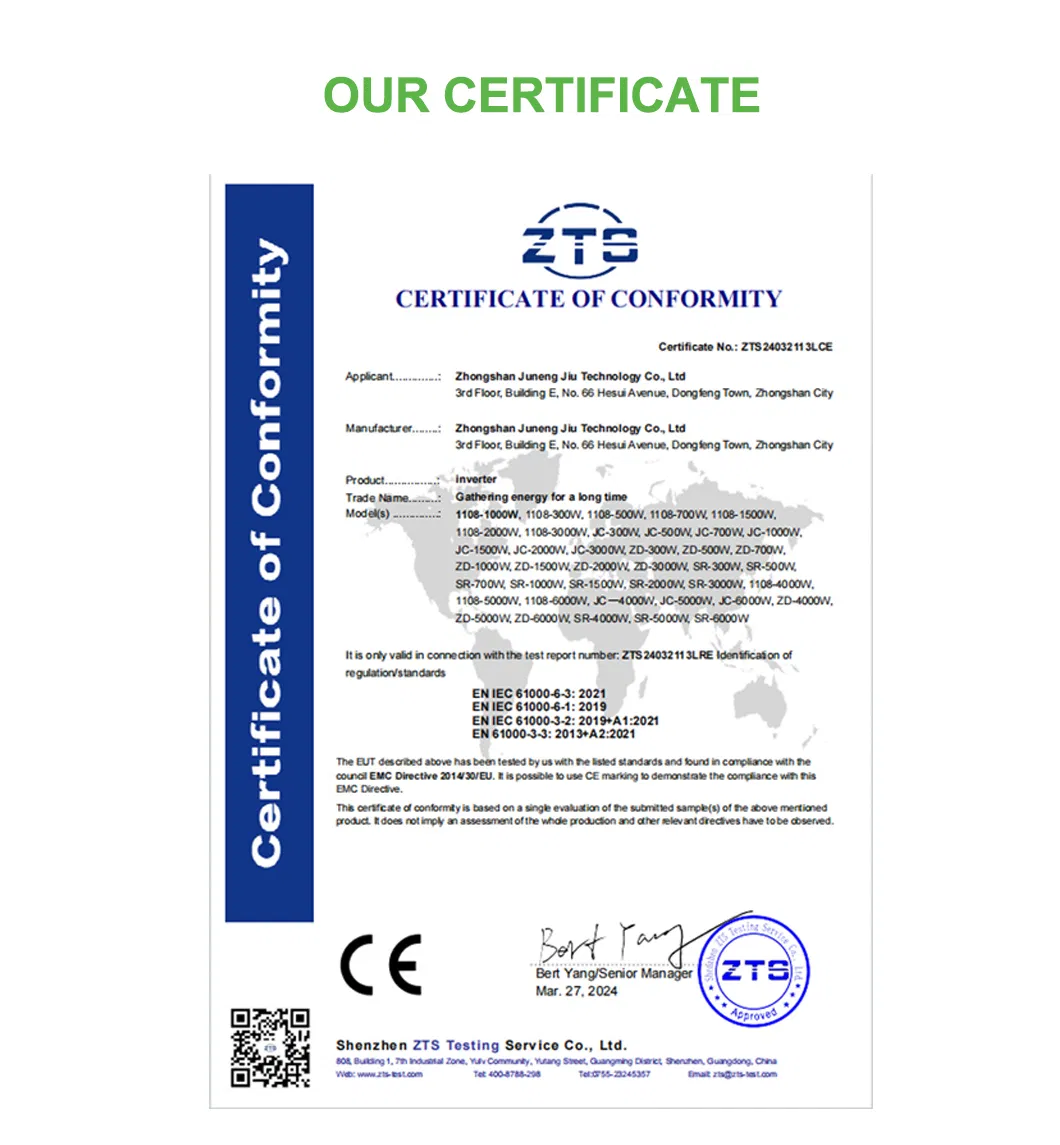

Certifications & Shipping

Frequently Asked Questions

What is an inverter?

An inverter is an electronic device that converts direct current (DC) into alternating current (AC). It is widely applied in scenarios such as solar power generation systems, electric vehicles, and UPS (Uninterruptible Power Supply).

What is the main function of an inverter?

The main function of an inverter is to convert direct current (such as the electrical energy generated by batteries or solar panels) into alternating current for the use of household appliances, industrial equipment, and so on.

What types of inverters are available?

Inverters are classified by waveform: Pure sine wave (high quality, for all appliances), Modified sine wave (suitable for most appliances), and Square wave (for simple devices like bulbs). They are also classified by purpose like Photovoltaic, Vehicle-mounted, or Household inverters.

How do I choose a suitable inverter?

Consider power requirements (total device wattage), input voltage (matching your battery/solar panel), output waveform (based on appliance sensitivity), and overall efficiency to reduce energy loss.

What devices can an inverter power?

An inverter can be used for various household appliances (such as TVs, refrigerators, and computers), industrial equipment, and power tools, depending on the inverter's specific power rating and output waveform.

What is the role of an inverter in a solar energy system?

In a solar system, the inverter converts the direct current (DC) generated by solar panels into alternating current (AC) suitable for household use or feeding back into the electrical grid.
