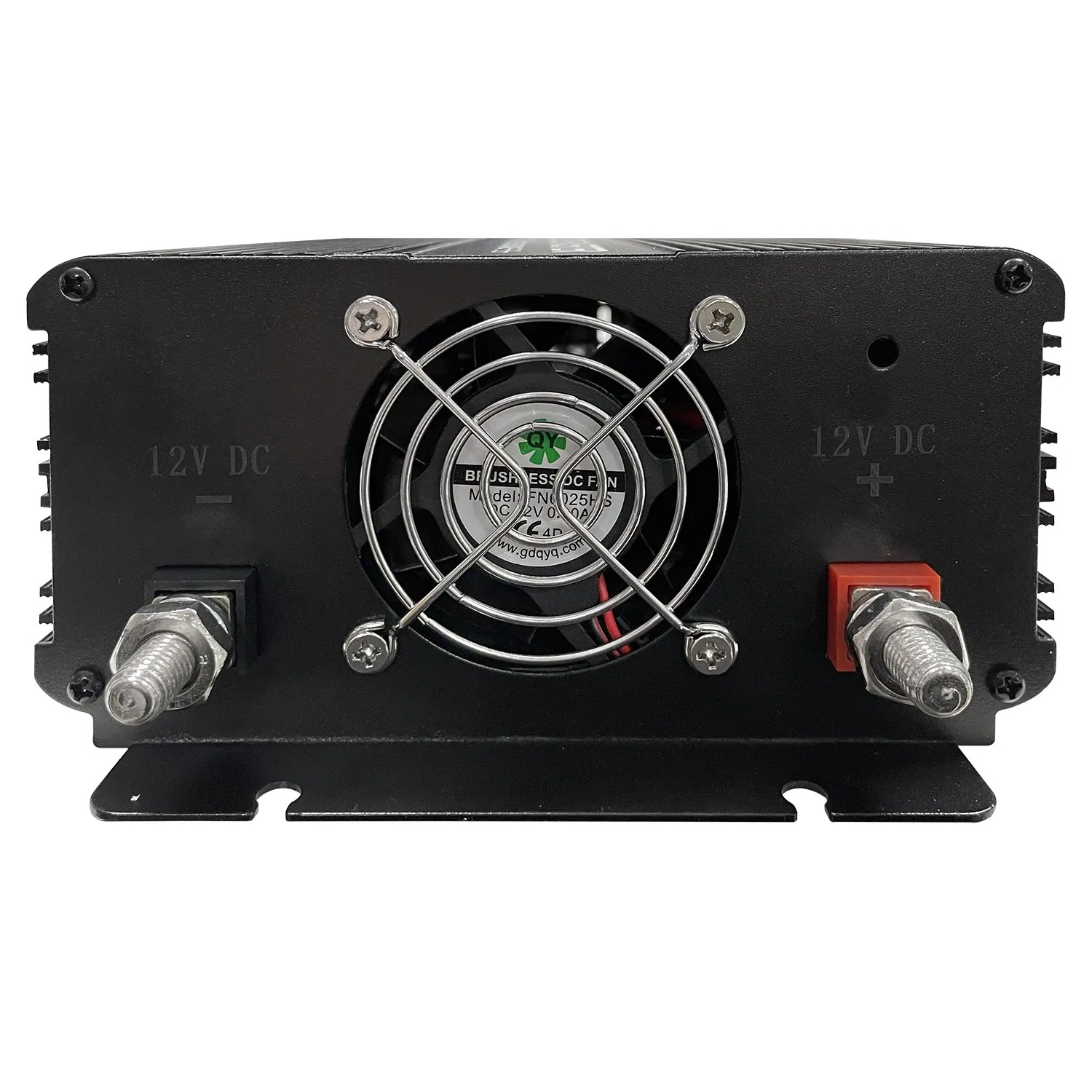

300W Modified Sine Wave Inverter DC 12/24V to 110V/220V AC Converters for off-Grid Power System or Car Use

1 / 5

300W Modified Sine Wave Inverter DC 12/24V to 110V/220V AC Converters for off-Grid Power System or Car Use

Customization:	Available
Nature of Source Flow:	Active Inverter
Certification:	ISO9001, CE

Send Inquiry

Product Description

Basic Information

Model NO.

CT 300-3000

Output Power

>1000W

Grid Type

off-Grid Inverter

Output Type

Single

Circuit Topologies

Half-Bridge Type

Nature of Wave

Sine Wave Inverter

Type

DC/AC Inverters

Origin

China

HS Code

8504401990

Capacity

50,000 PCS/Year

High Frequency Modified Sine Wave Inverter

CT 300-3000W

Key Features

✔High Frequency DC/AC Power Inverter CT300-3000W
✔Single phase Modified sine wave with USB Charger
✔Output 220V/230V or 110V/120V 50/60HZ
✔Full range protection for the output and the battery
✔Two times surge capacity for all modes
✔Use as Car inverter / Home inverter / Solar Inverter
✔Selectable Sockets (S03/S05/S11/S12/S13/S14)
✔Equipped with Battery Cable

Technical Specifications

Model	CT300	CT500	CT1000	CT1500	CT2000	CT3000
Rated Power	300W	500W	1000W	1500W	2000W	3000W
Surge Power	Two Times of the Rated Power
Input Voltage	12/24 or 48VDC (Choose while ordering)
Output Voltage	110VAC or 220VAC ±5%
Output Waveform	Modified Sine Wave
Efficiency	88% MAX
Protection	Low/Over Voltage, Over Load, Over Temperature
Size (mm)	15511258	18011258	24515077	28515077	32016792	41016792

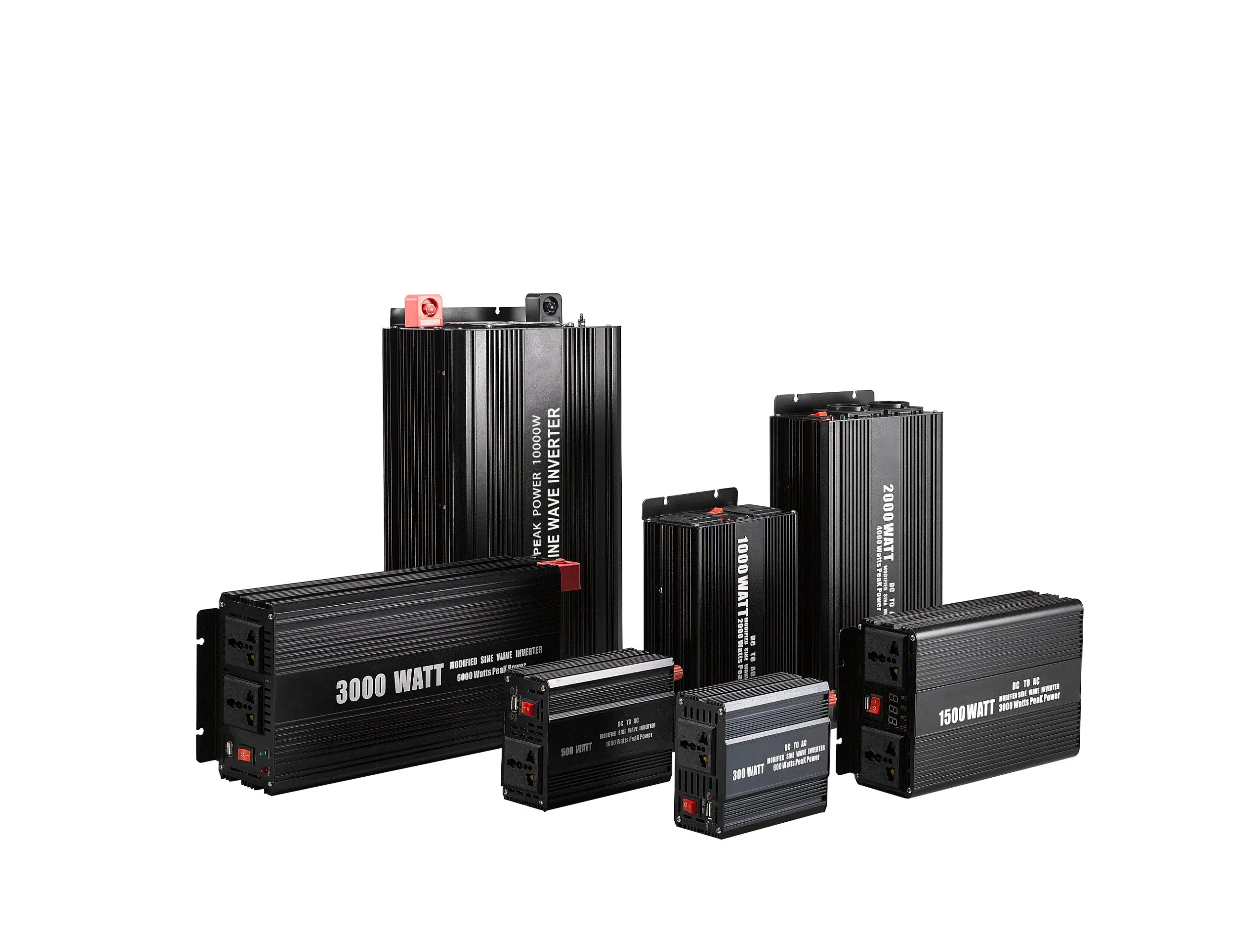

Product Display

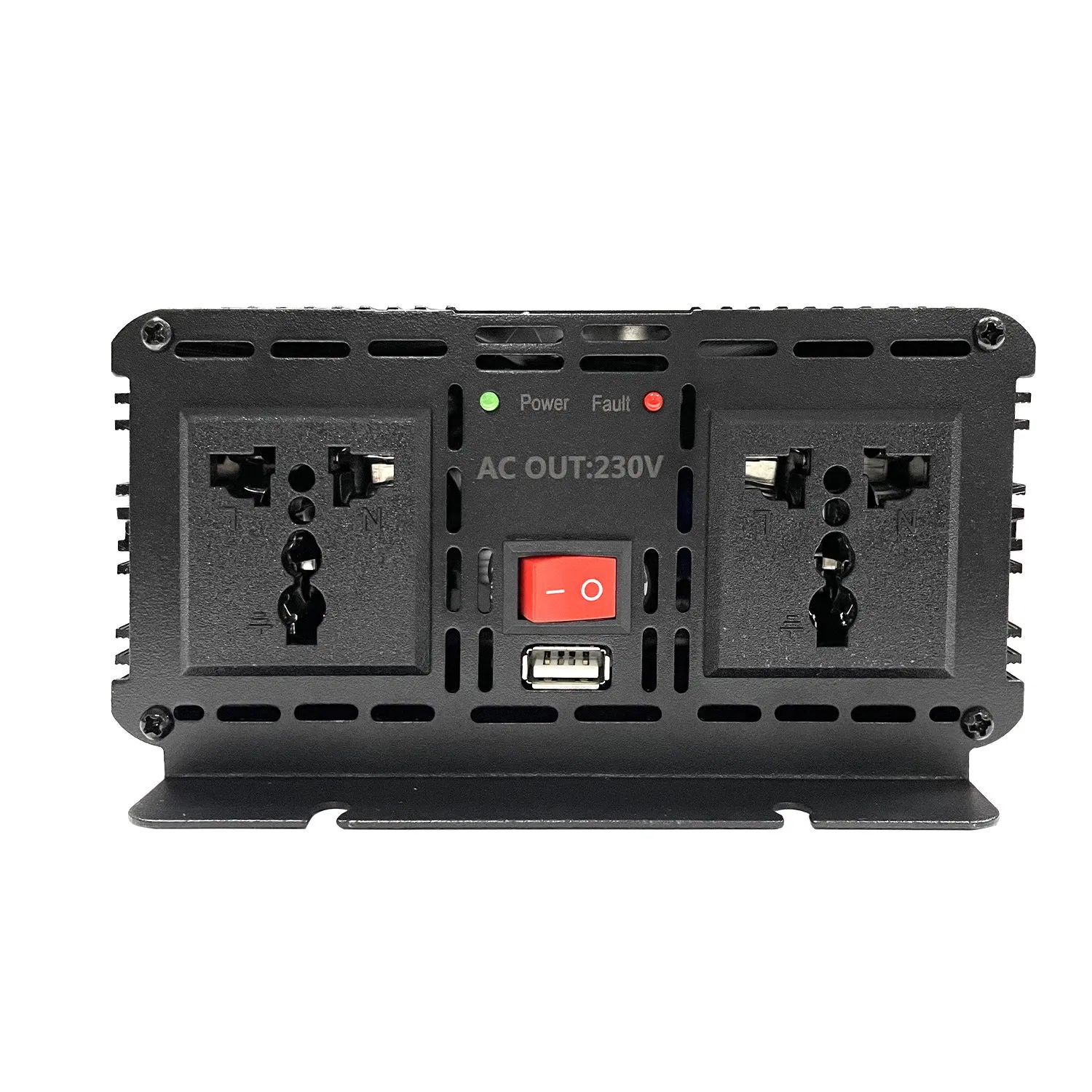

CT500 AC Side

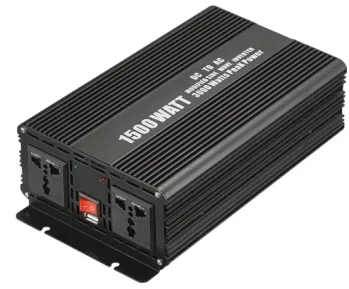

CT1500 AC Side

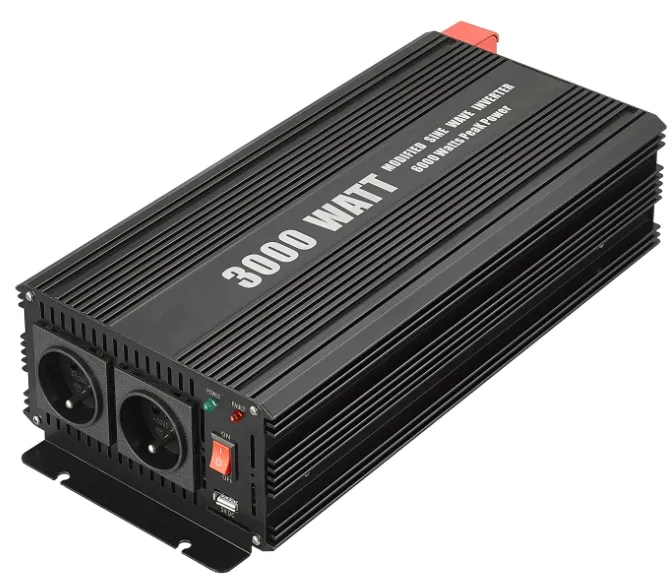

CT3000 AC Side

Frequently Asked Questions

Q1: What is the power range available for this series?

The CT series offers a wide range of power options including 300W, 500W, 1000W, 1500W, 2000W, and 3000W models.

Q2: Can I use this inverter for both car and home applications?

Yes, these high-frequency inverters are designed for versatile use as car inverters, home inverters, or within solar power systems.

Q3: Does the inverter support mobile device charging?

Yes, all models in this series include a built-in USB port (5V) for convenient charging of mobile phones and other small electronic devices.

Q4: What kind of safety protections are included?

The inverters feature full range protection, including battery low/over voltage protection, overload protection, and over-temperature protection.

Q5: What is the surge capacity of these inverters?

Each model features a surge capacity of two times its rated power for a few seconds to handle high-startup loads.

Q6: Are there different socket types available?

Yes, multiple socket types such as S03, S05, S11, S12, S13, and S14 can be selected based on your regional requirements.
