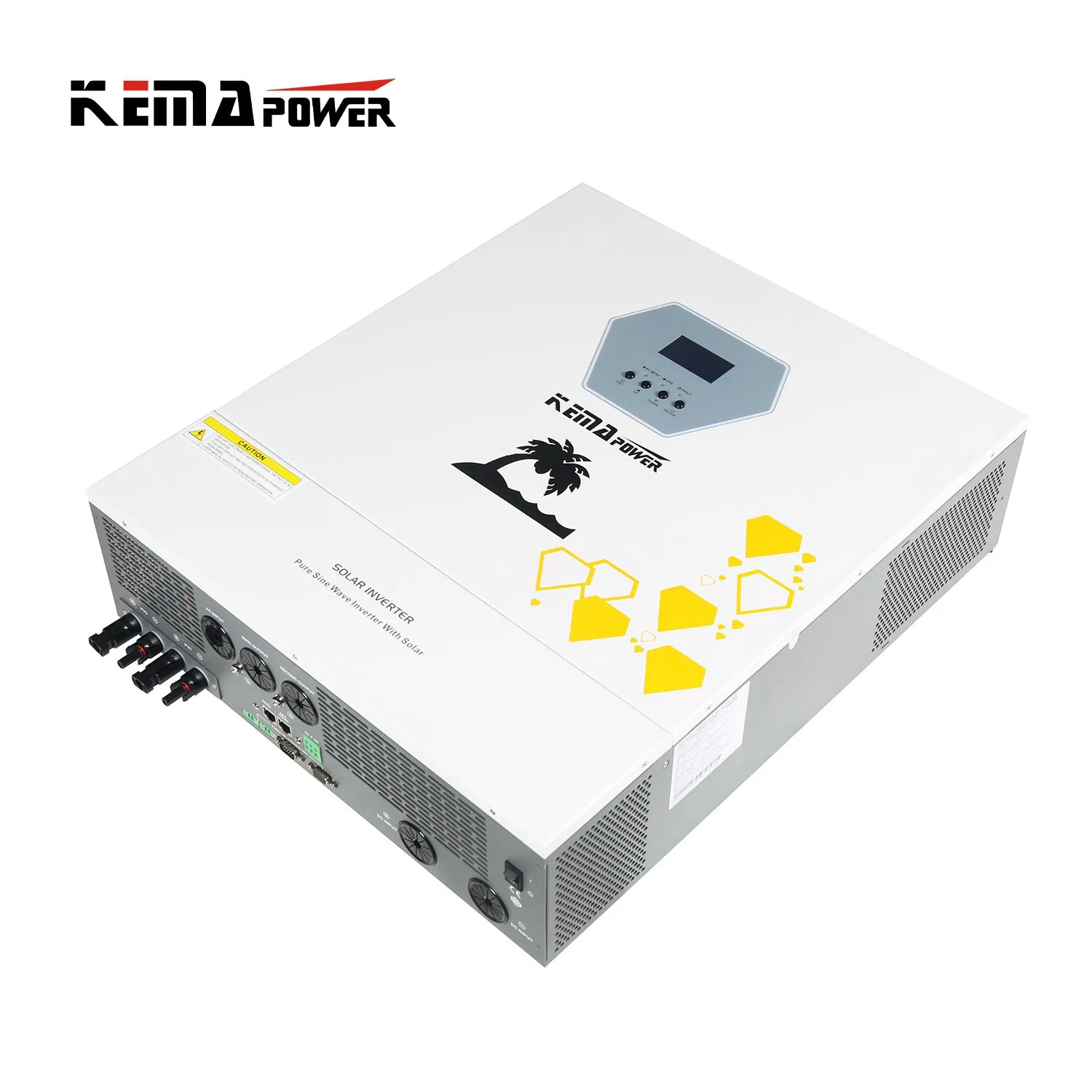

Kemapower 5kw 6kw 8kw 10kw 12kw Solar Inverter Photovoltaic Commercial Huawei Power Inverter Hybrid Inverter
Kemapower 5kw 6kw 8kw 10kw 12kw Solar Inverter Photovoltaic Commercial Huawei Power Inverter Hybrid Inverter
Kemapower 5kw 6kw 8kw 10kw 12kw Solar Inverter Photovoltaic Commercial Huawei Power Inverter Hybrid Inverter
Kemapower 5kw 6kw 8kw 10kw 12kw Solar Inverter Photovoltaic Commercial Huawei Power Inverter Hybrid Inverter
Kemapower 5kw 6kw 8kw 10kw 12kw Solar Inverter Photovoltaic Commercial Huawei Power Inverter Hybrid Inverter
1 / 5
Kemapower 5kw 6kw 8kw 10kw 12kw Solar Inverter Photovoltaic Commercial Huawei Power Inverter Hybrid Inverter
Kemapower 5kw 6kw 8kw 10kw 12kw Solar Inverter Photovoltaic Commercial Huawei Power Inverter Hybrid Inverter
Kemapower 5kw 6kw 8kw 10kw 12kw Solar Inverter Photovoltaic Commercial Huawei Power Inverter Hybrid Inverter
Kemapower 5kw 6kw 8kw 10kw 12kw Solar Inverter Photovoltaic Commercial Huawei Power Inverter Hybrid Inverter
Kemapower 5kw 6kw 8kw 10kw 12kw Solar Inverter Photovoltaic Commercial Huawei Power Inverter Hybrid Inverter

Kemapower 5kw 6kw 8kw 10kw 12kw Solar Inverter Photovoltaic Commercial Huawei Power Inverter Hybrid Inverter

Customization: Available
After-sales Service: 1 Year
Warranty: 1 Year
Send Inquiry

Product Description

Basic Information
Model NO.
SUB-D
Nature of Source Flow
Active Inverter
Phase
Single
Output Power
>1000W
Certification
CE, ISO9001
Type
DC/AC Inverters
Power Source
Solar Power
Circuit Topologies
Half-Bridge Type
Nature of Wave String
Sine Wave Inverter
Product Name
Charge Controller Solar Hybrid off Inverter
Origin
China
HS Code
8504403090

Off Grid Hybrid Solar Inverter

SUB-D 3-11KW

Key Features
  • High Frequency off grid hybrid solar inverter SUB-D 3-11KW, PF=1
  • 3 in 1 design: Power Inverter + MPPT controller + Grid Charger
  • Working without battery during daytime
  • Support lithium activation wake-up and cold start function
  • Auto restart while AC is recovering
  • Intelligent power supply mode distribution (Solar/Mains/Battery)
  • AC and PV charge voltage adjustable for various battery types
  • Selectable Lead acid / Lithium battery charging

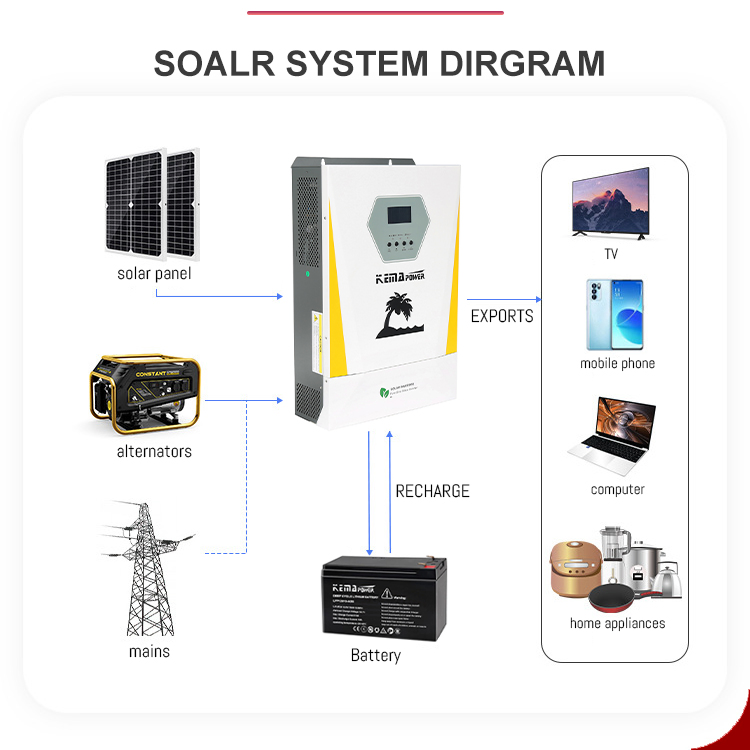

  • Solar, Grid and Battery Energy complement each other
  • RS232, BMS/RS485, Dry Contact Communication
  • WiFi Plug or GPRS option for Mobile App monitoring

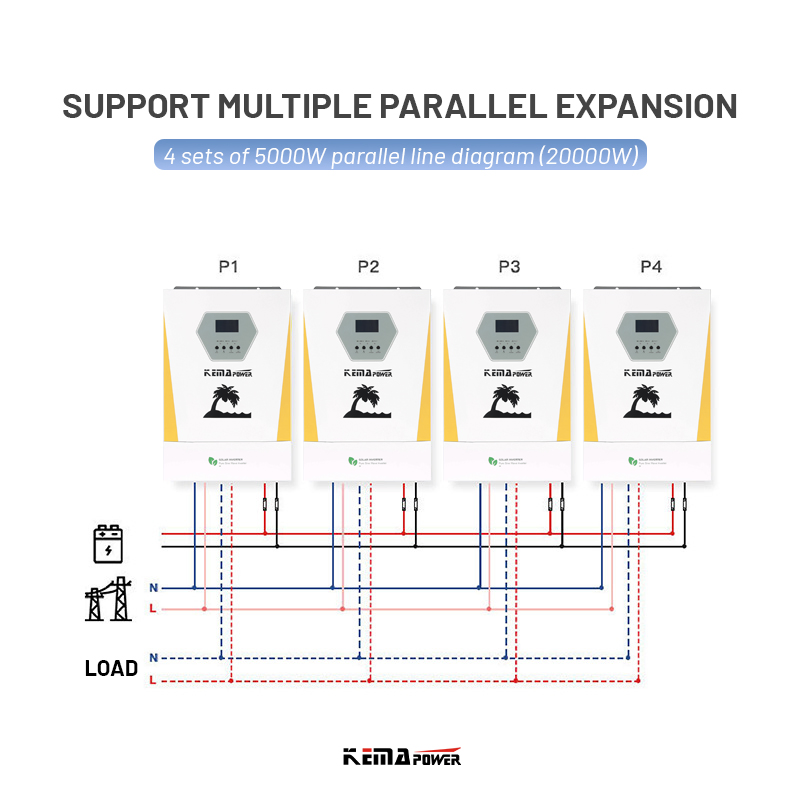

  • 6.2KW/11KW models support parallel function (up to 9 units)
  • Wide MPPT range: 40-500VDC / 120-500VDC
  • Intelligent 3 stage AC battery charger up to 150A
  • Pure sine wave output suitable for all loads
  • Full protection: Overload, Temp, Short-circuit, Battery Reverse
Technical Specifications
ITEM Model SUB-D-E3024 SUB-D-3624 SUB-D-6248 SUB-D-11048
INPUT RATED POWER 3KW 3.6KW 6.2KW 11KW
Voltage 220/230/240VAC
OUTPUT Efficiency 97% (Peak PV to INV)
Waveform Pure sine wave
Transfer Time 10 ms (PC) / 20 ms (Appliances)
BATTERY Voltage 24 VDC 48 VDC
Max Charge Current 60A 80A 80A 150A
SOLAR Max PV Array 3KW 4.2KW 6.2KW 2*5.5KW
MPPT Range 50-500 VDC 150-500 VDC
Product Display

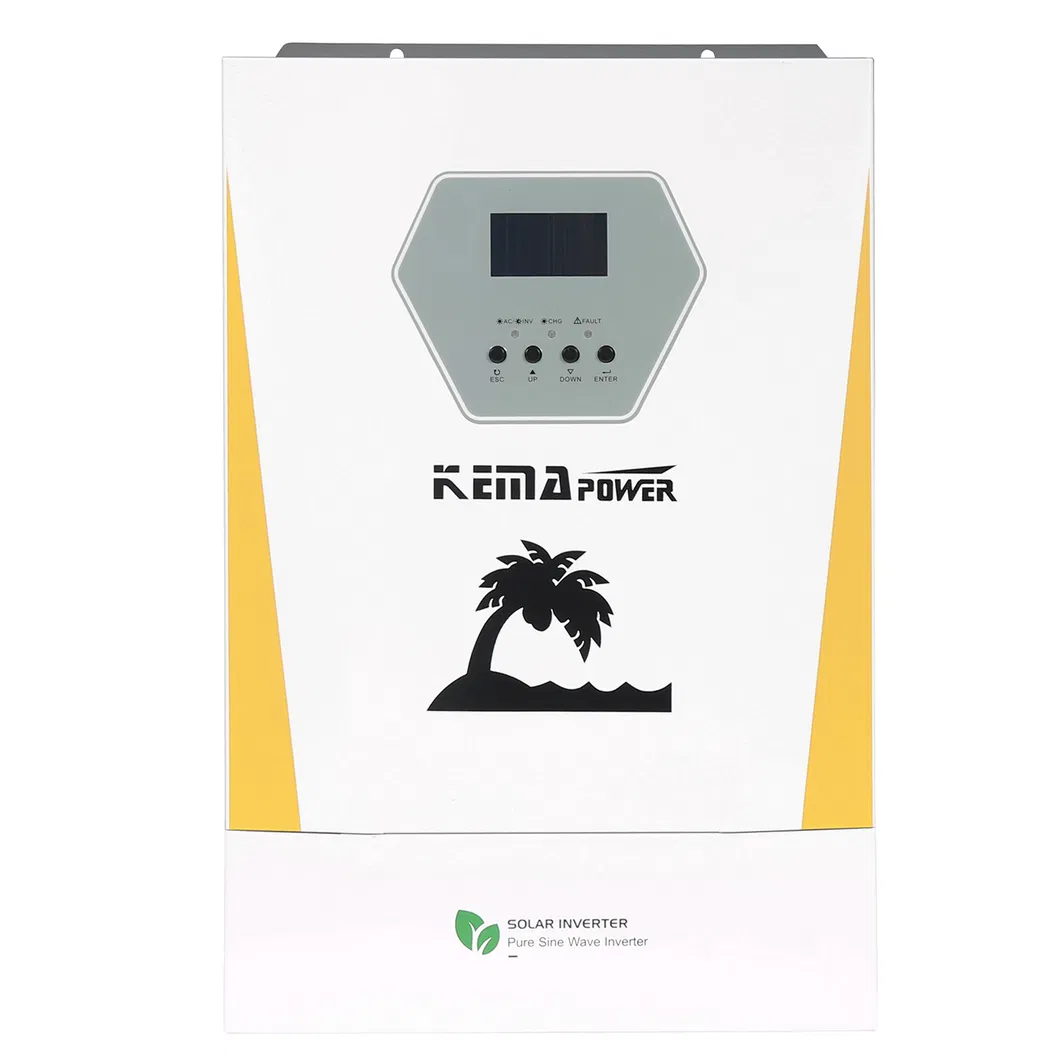

Solar Inverter Display 1

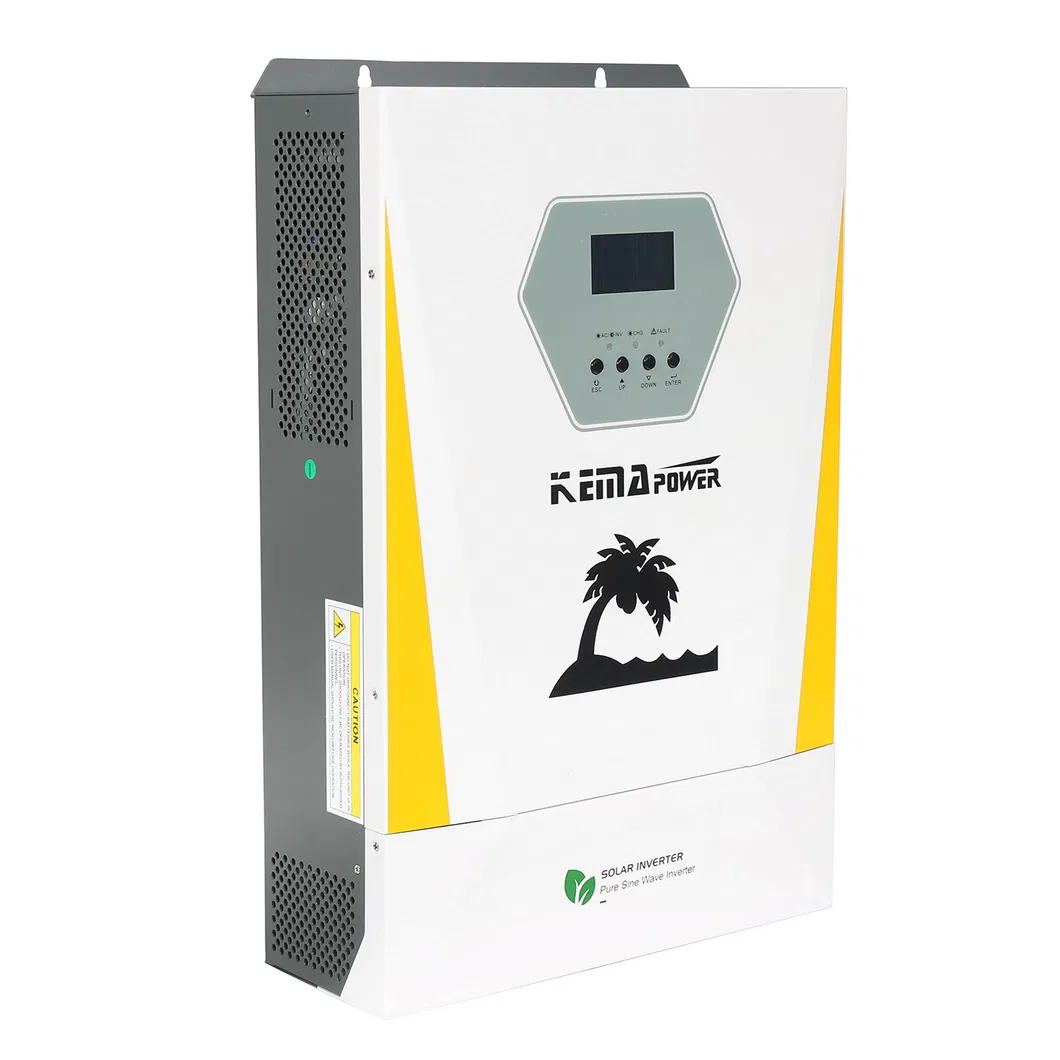

Solar Inverter Display 2

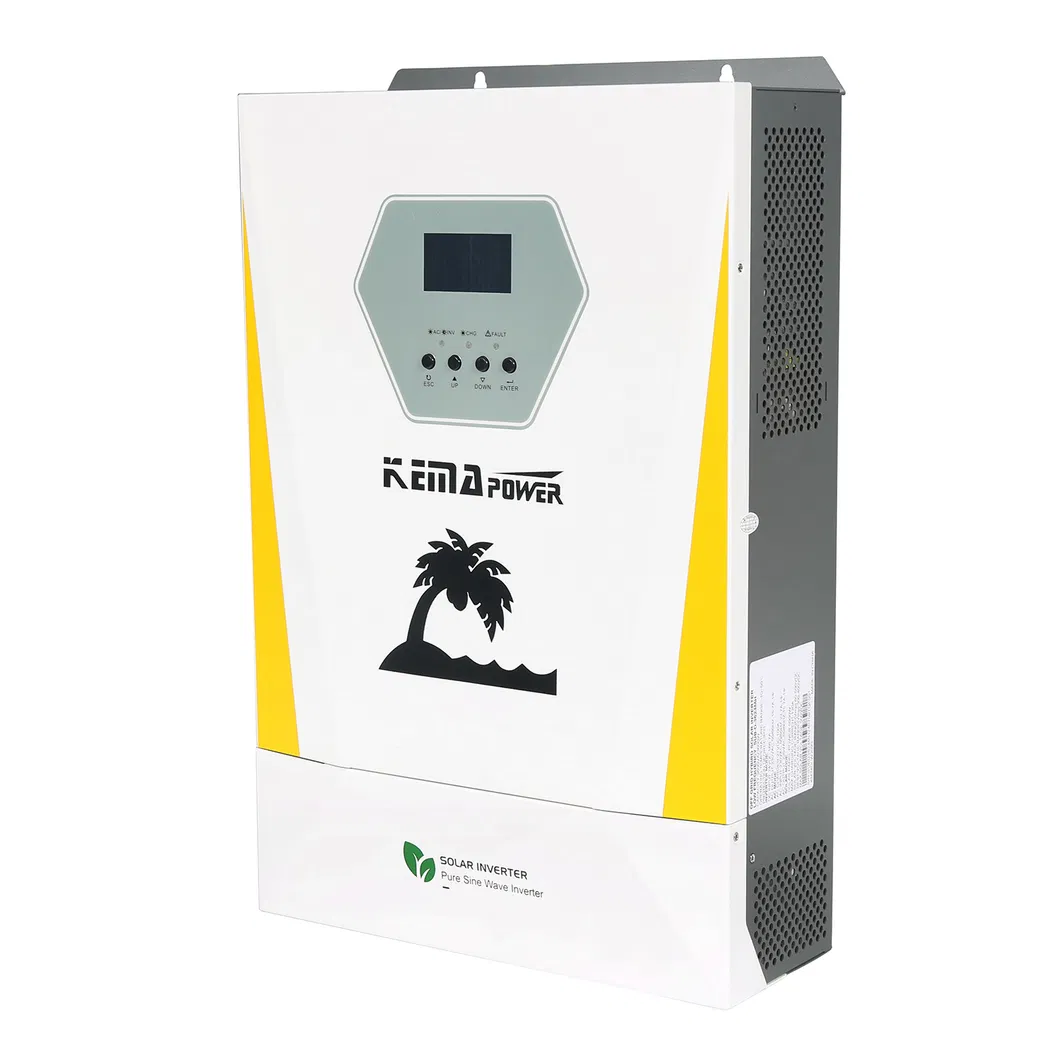

Solar Inverter Display 3

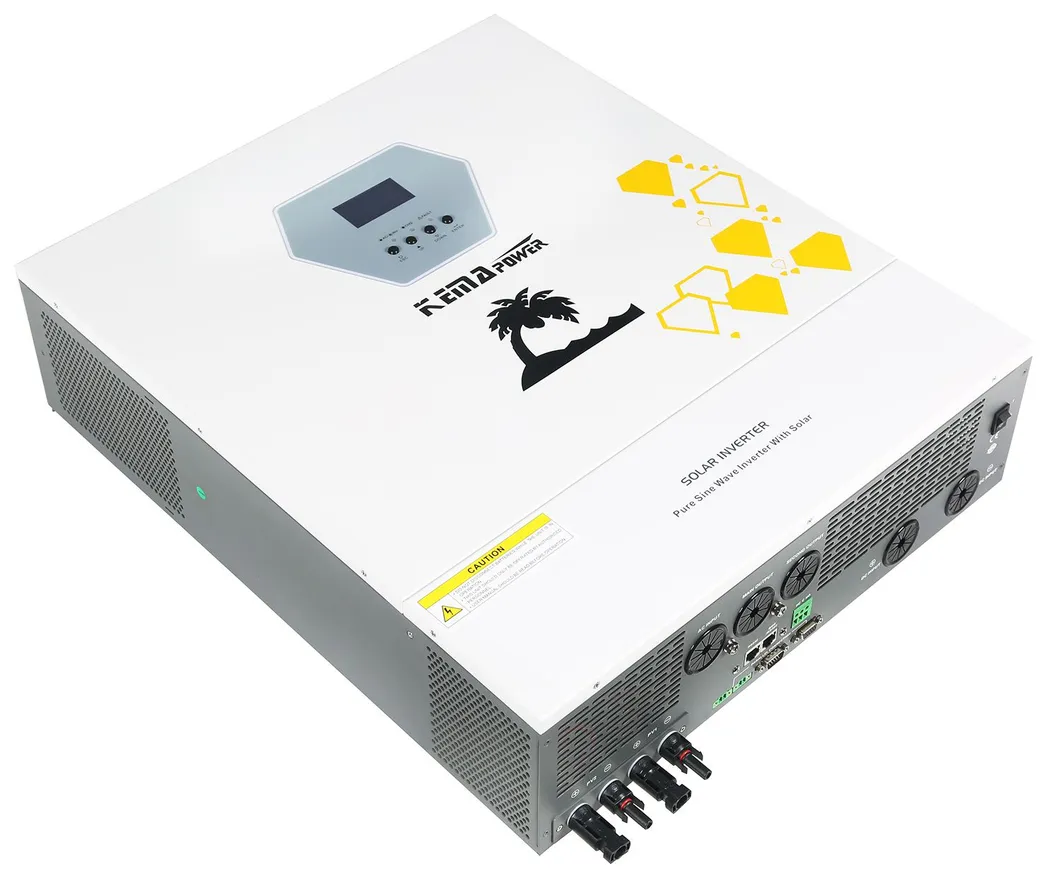

Inverter Feature Details 1

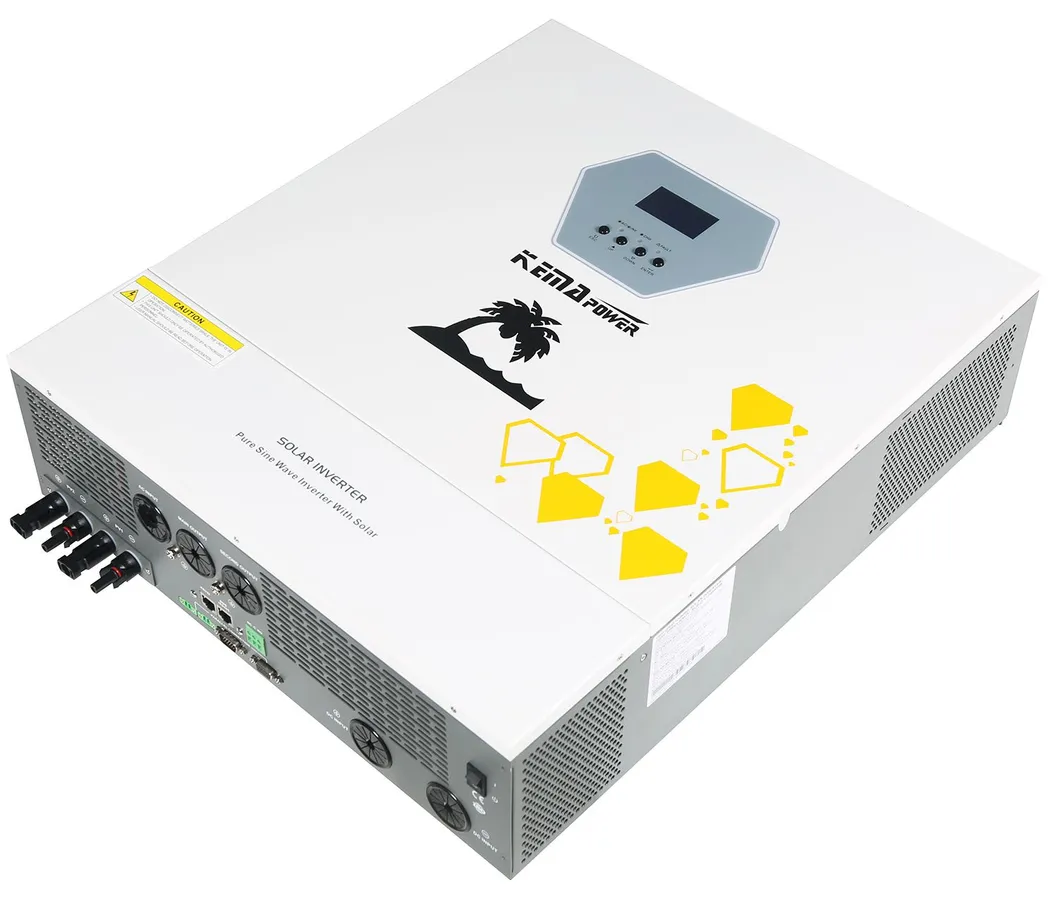

Inverter Feature Details 2

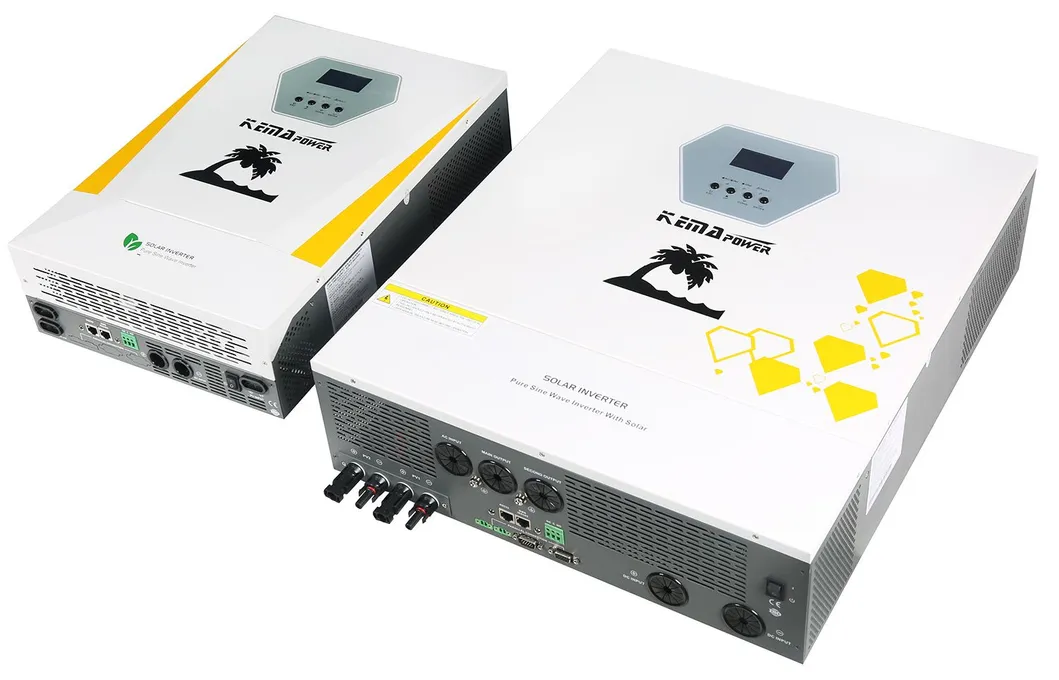

Inverter Hardware 1

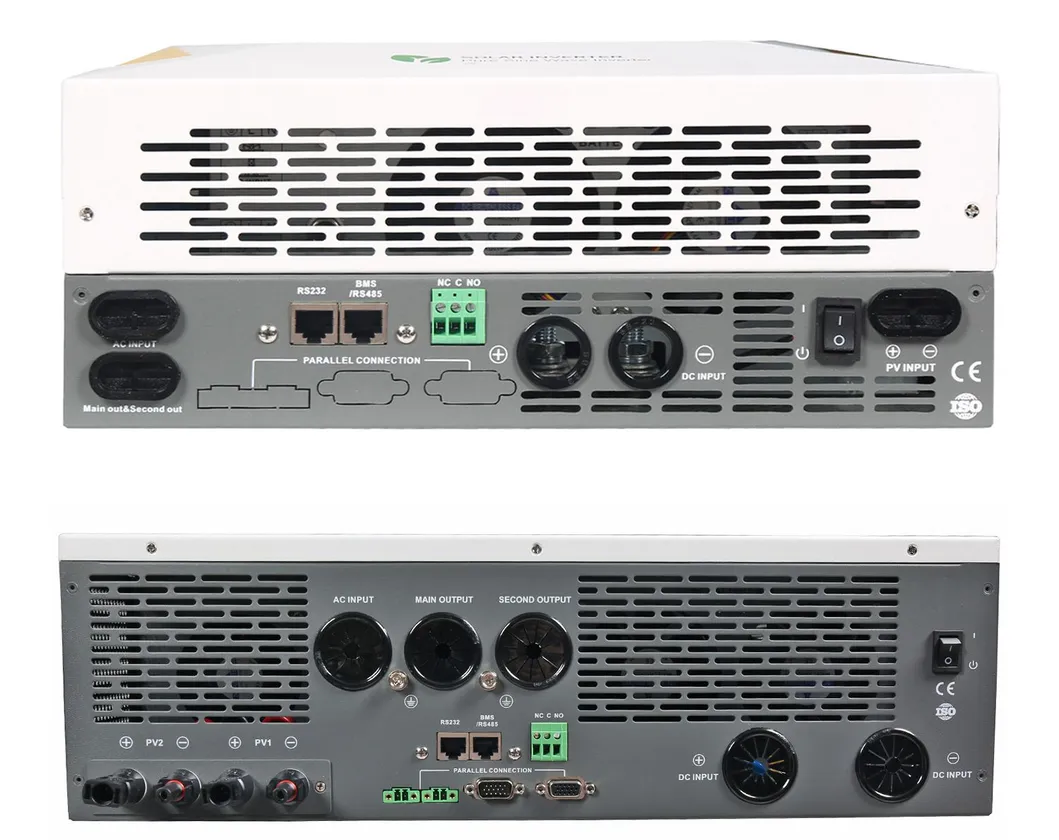

Inverter Hardware 2

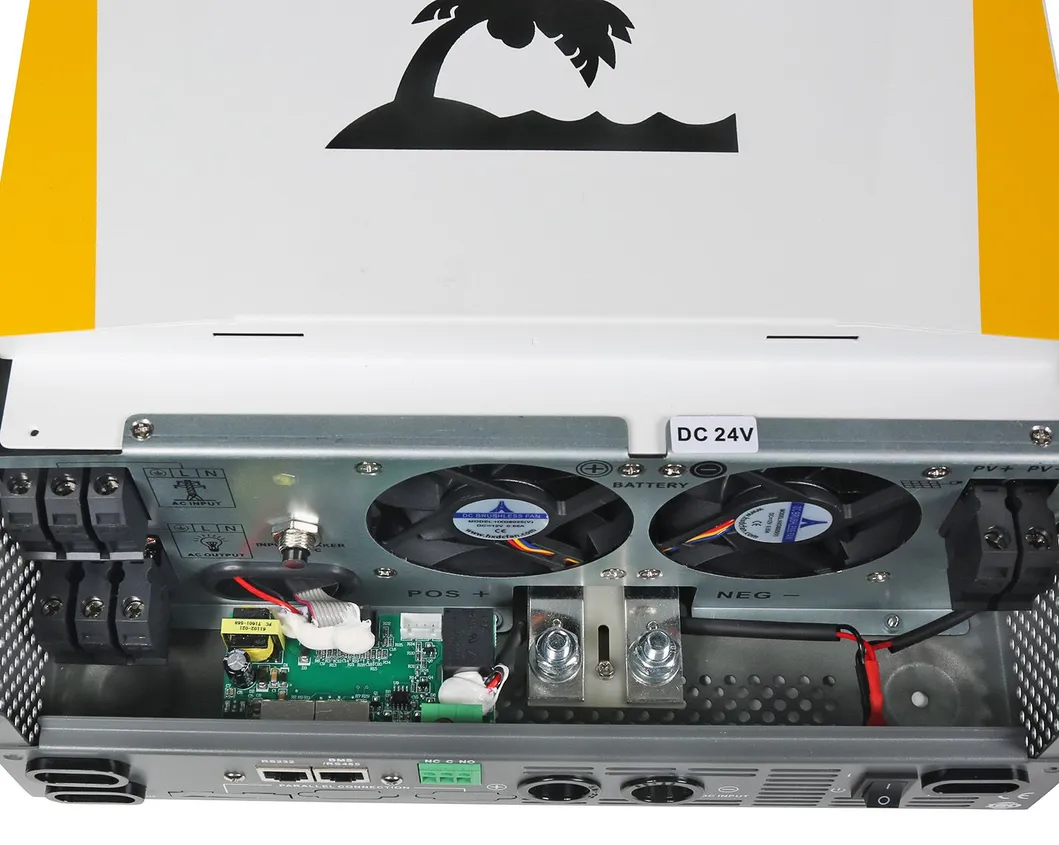

Inverter Hardware 3
Wiring Diagram and Application
Parallel Connection Setup
System Architecture
Technical Layout
Frequently Asked Questions
Can the SUB-D series inverter work without a battery?
Yes, this hybrid inverter is designed to work without a battery during the daytime, utilizing solar power directly to support the loads.
What types of batteries are compatible with this system?
The inverter is compatible with both Lead-acid and Lithium batteries. It features a lithium activation wake-up function and adjustable charging voltages.
Is it possible to expand the system capacity later?
Yes, the 6.2KW and 11KW models support parallel functionality, allowing you to connect up to 9 units for higher power requirements.
What is the advantage of the High Frequency design?
High frequency inverters are lighter, more compact, and offer high efficiency with a power factor of 1.0, making them ideal for modern home and office appliances.

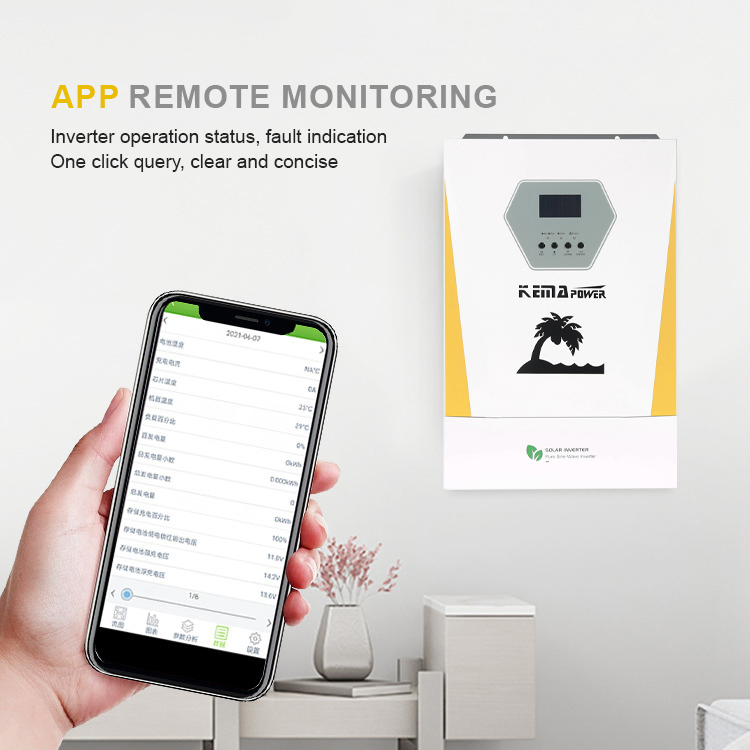

How can I monitor the inverter's performance?
The system supports RS232, RS485/BMS, and Dry Contact communication. You can also opt for a WiFi plug or GPRS module to monitor status via a mobile app.
What protections does the inverter provide?
It includes comprehensive protection against overload, over-temperature, short-circuit, battery low voltage, and battery reverse connection for maximum safety.
