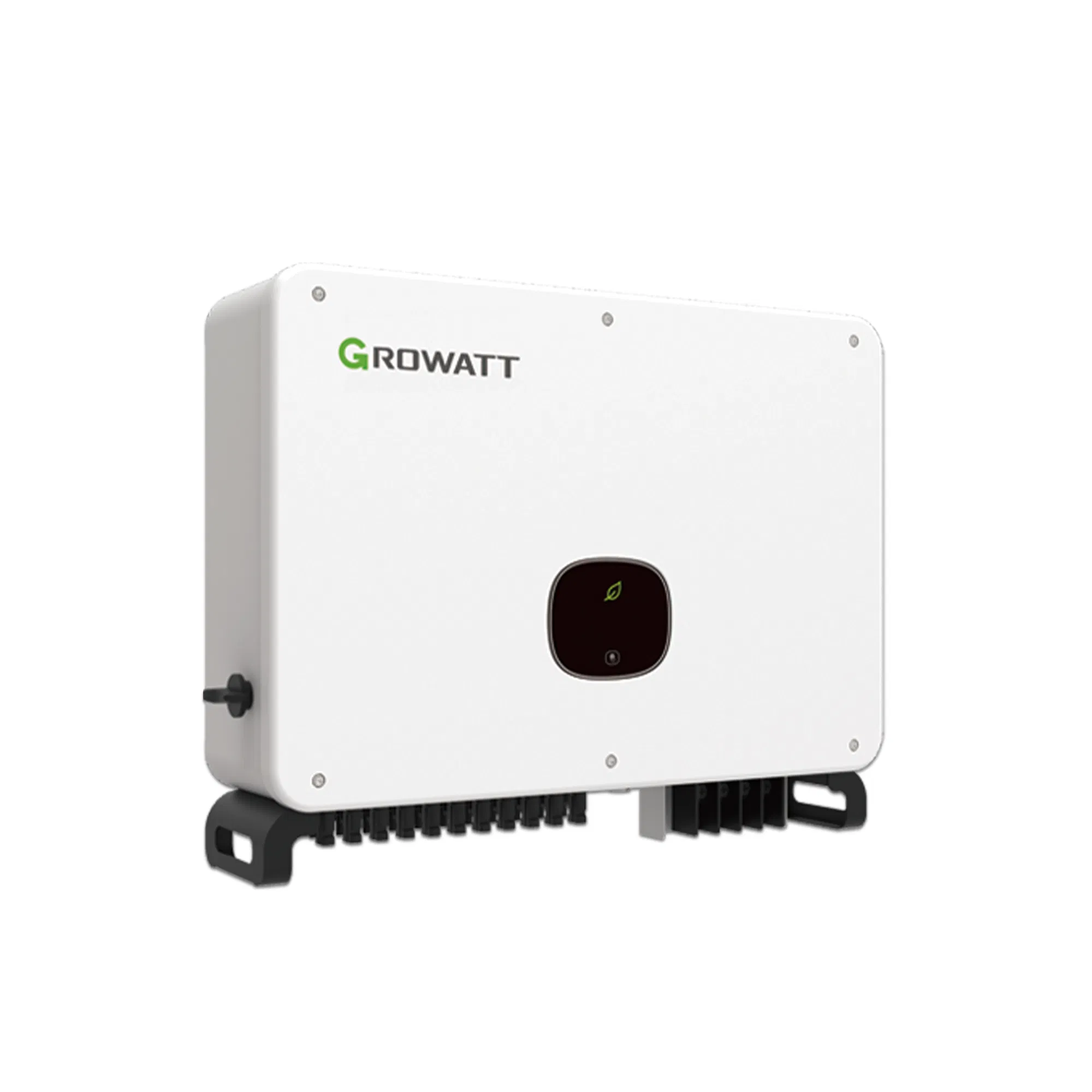

Growatt PV Inverter 60kw 70kw 600V 700V Grid Tied Solar Inverter for Commercial Use
Growatt PV Inverter 60kw 70kw 600V 700V Grid Tied Solar Inverter for Commercial Use
Growatt PV Inverter 60kw 70kw 600V 700V Grid Tied Solar Inverter for Commercial Use
Growatt PV Inverter 60kw 70kw 600V 700V Grid Tied Solar Inverter for Commercial Use
Growatt PV Inverter 60kw 70kw 600V 700V Grid Tied Solar Inverter for Commercial Use
1 / 5
Growatt PV Inverter 60kw 70kw 600V 700V Grid Tied Solar Inverter for Commercial Use
Growatt PV Inverter 60kw 70kw 600V 700V Grid Tied Solar Inverter for Commercial Use
Growatt PV Inverter 60kw 70kw 600V 700V Grid Tied Solar Inverter for Commercial Use
Growatt PV Inverter 60kw 70kw 600V 700V Grid Tied Solar Inverter for Commercial Use
Growatt PV Inverter 60kw 70kw 600V 700V Grid Tied Solar Inverter for Commercial Use

Growatt PV Inverter 60kw 70kw 600V 700V Grid Tied Solar Inverter for Commercial Use

Customization: Available
After-sales Service: Yes
Warranty: 10 Years
Send Inquiry

Product Description

Basic Specification
Model NO.
MAC 60KTL3-X MV
Phase
Three Phase
Output Power
50000 - 70000W
Certification
CE, VDE, IEC, Ksc
Type
DC/AC Inverters
Power Source
Solar Power
Circuit Topologies
Half-Bridge Type
Wave String
Sine Wave Inverter
HS Code
8543709990
Production Capacity
10000 units/Day
Product Description

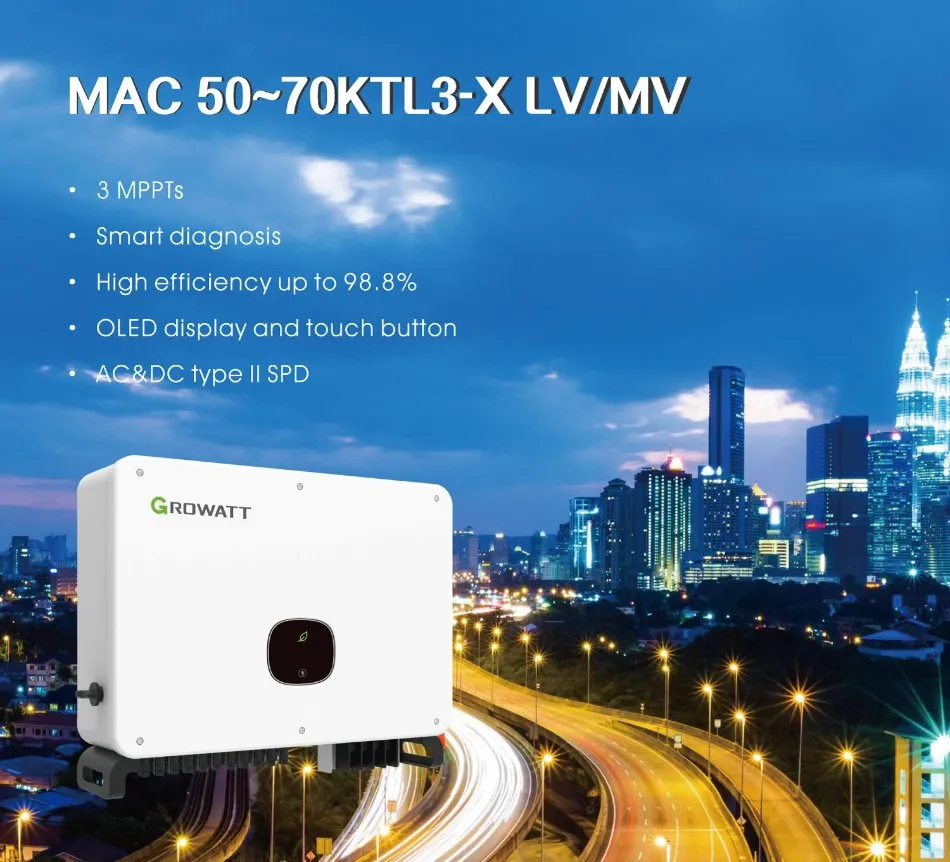

Commercial Solar Inverter

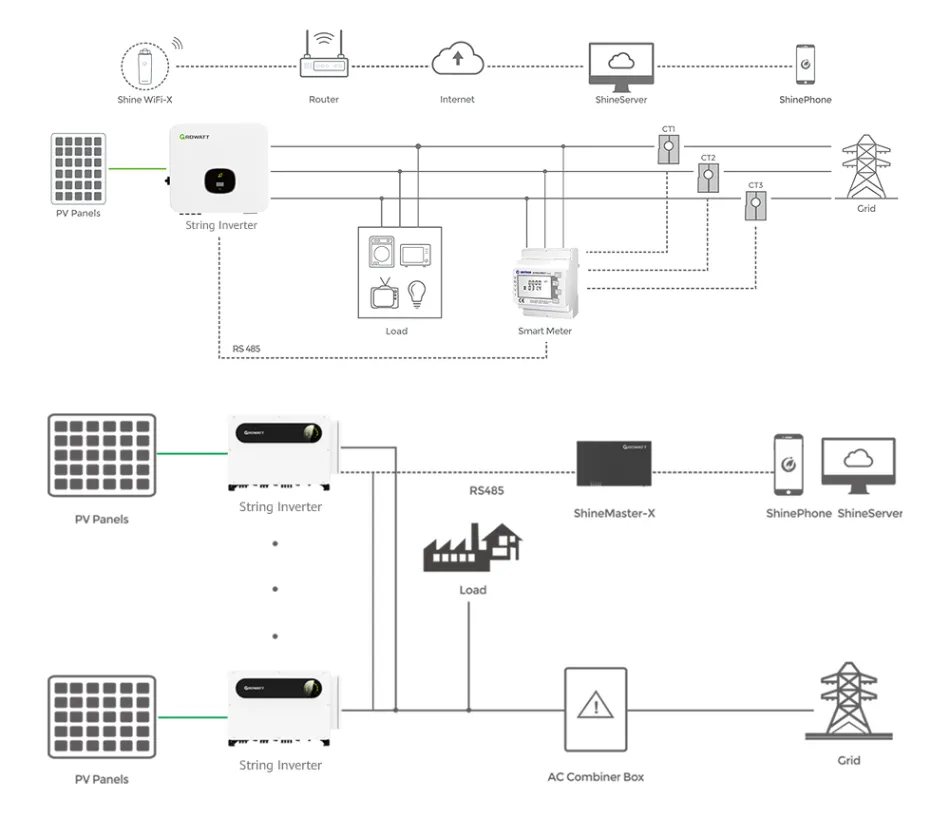

Inverter Features
Technical Parameters
Model MAC 50KTL3-X LV MAC 50KTL3-X MV MAC 60KTL3-X LV MAC 60KTL3-X MV MAC 70KTL3-X MV
Input Data (DC)
Max. recommended PV power 75000W 75000W 90000W 90000W 105000W
Max. DC voltage 1100V
Nominal voltage 600V 700V 600V 700V 700V
MPPT voltage range 200V-1000V
No. of MPP trackers 3
Output data (AC)
AC nominal power 50000W 50000W 60000W 60000W 70000W
Max. AC apparent power 55500VA 55500VA 66600VA 66600VA 77700VA
Nominal AC voltage 230V/400V 277V/480V 230V/400V 277V/480V 277V/480V
Max. efficiency 98.8%
Protection & General Data
Surge protection Type II / Type II (AC/DC)
Dimensions (W/H/D) 680/508/281mm
Weight 52kg
Protection degree IP65
Package & Delivery
Packaging Details
Project Showcases

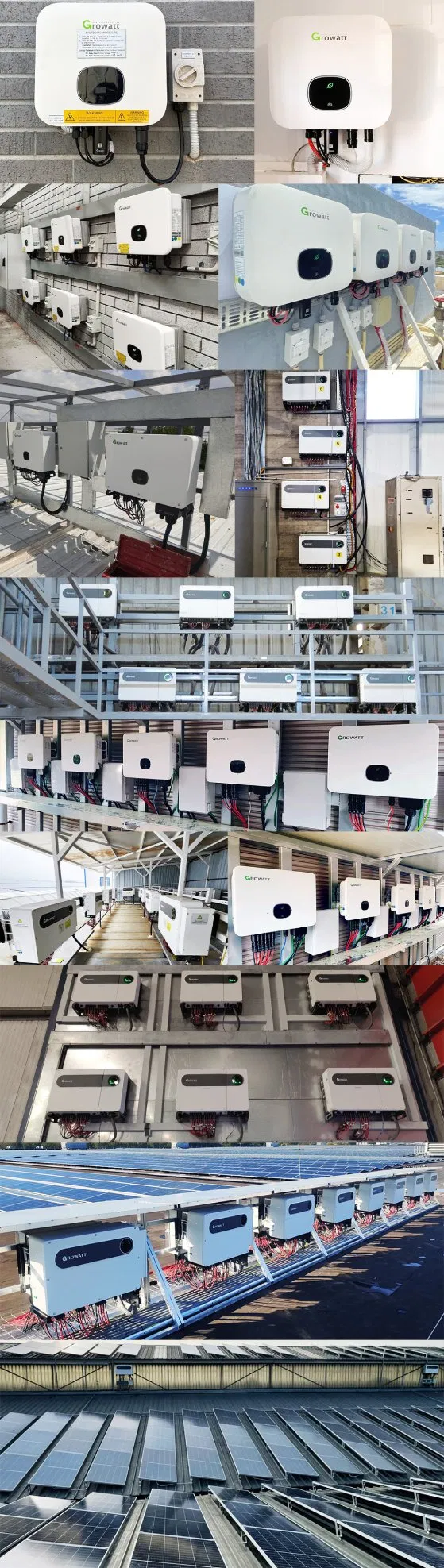

Solar Projects
Technical Support
Service Support 1
Service Support 2
Frequently Asked Questions
Q: What is the maximum conversion efficiency of this solar inverter?
A: The series features a maximum efficiency of 98.8% and a Euro weighted efficiency of 98.5%, ensuring minimal energy loss.
Q: Can these inverters be installed outdoors?
A: Yes, they are designed with an IP65 protection degree, making them suitable for various outdoor environmental conditions.
Q: What type of cooling system is used?
A: The inverters utilize a Smart Air Cooling system to maintain optimal operating temperatures even in demanding environments.
Q: Does the system include surge protection?
A: Yes, both DC and AC sides are equipped with Type II surge protection devices as standard.
Q: What communication interfaces are available for monitoring?
A: The units support USB and RS485 as standard, with options for WIFI, GPRS, LAN, and RF connectivity for remote monitoring via APP.
Q: Is it compatible with bifacial solar modules?
A: With a high MPPT input current of up to 52A per tracker, these inverters are well-suited for high-power and bifacial PV modules.
