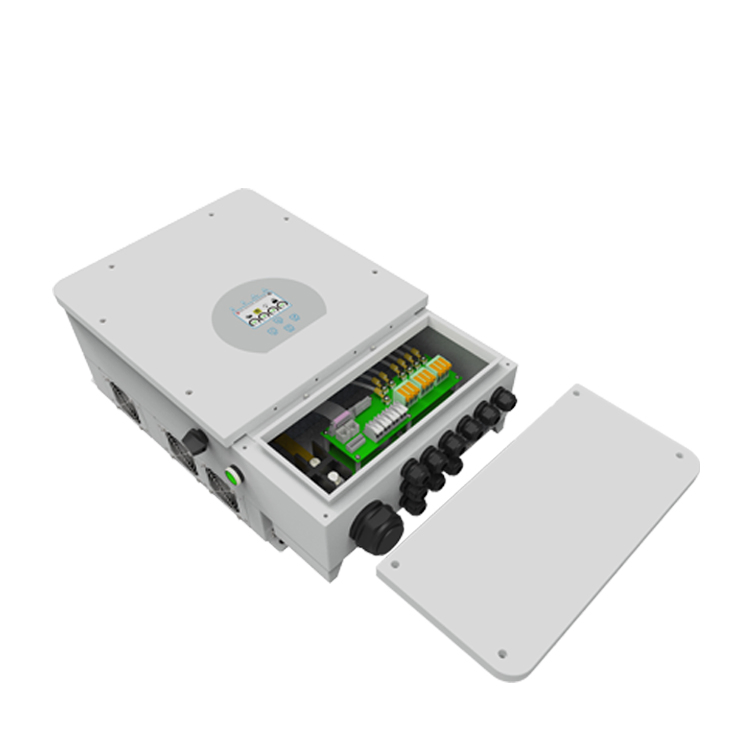

China Deye Hybrid Solar Inverter 5kw 8kw 10kw 12kw Wholesale Solar Inverter Solar Energy Storage Three Phase Hybrid Solar Inverter for Home

1 / 5

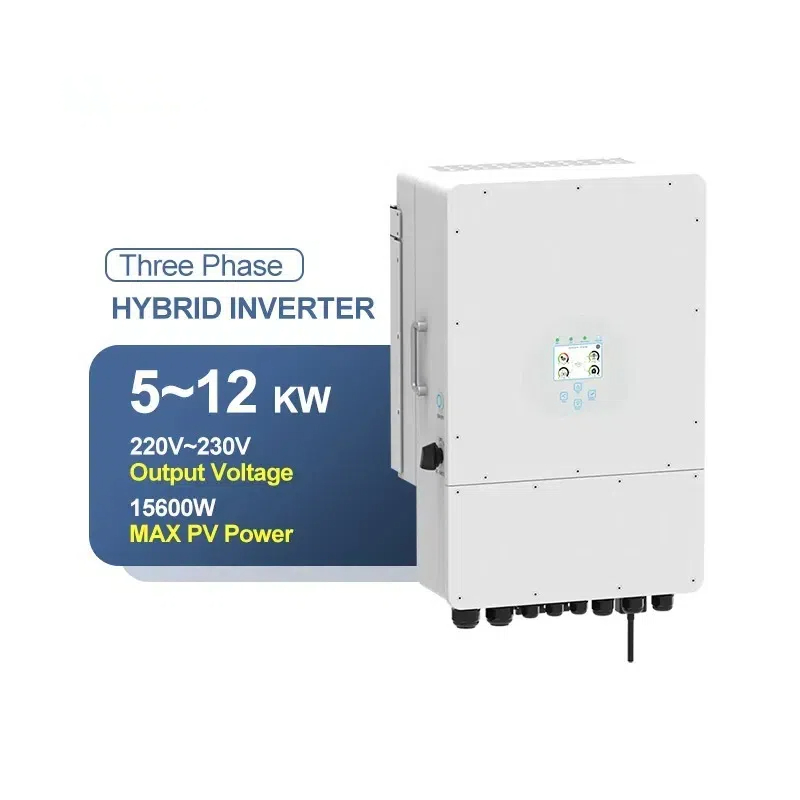

China Deye Hybrid Solar Inverter 5kw 8kw 10kw 12kw Wholesale Solar Inverter Solar Energy Storage Three Phase Hybrid Solar Inverter for Home

Customization:	Available
After-sales Service:	Yes
Warranty:	5 Years

Send Inquiry

Product Description

📊

Basic Product Specifications

Model NO.

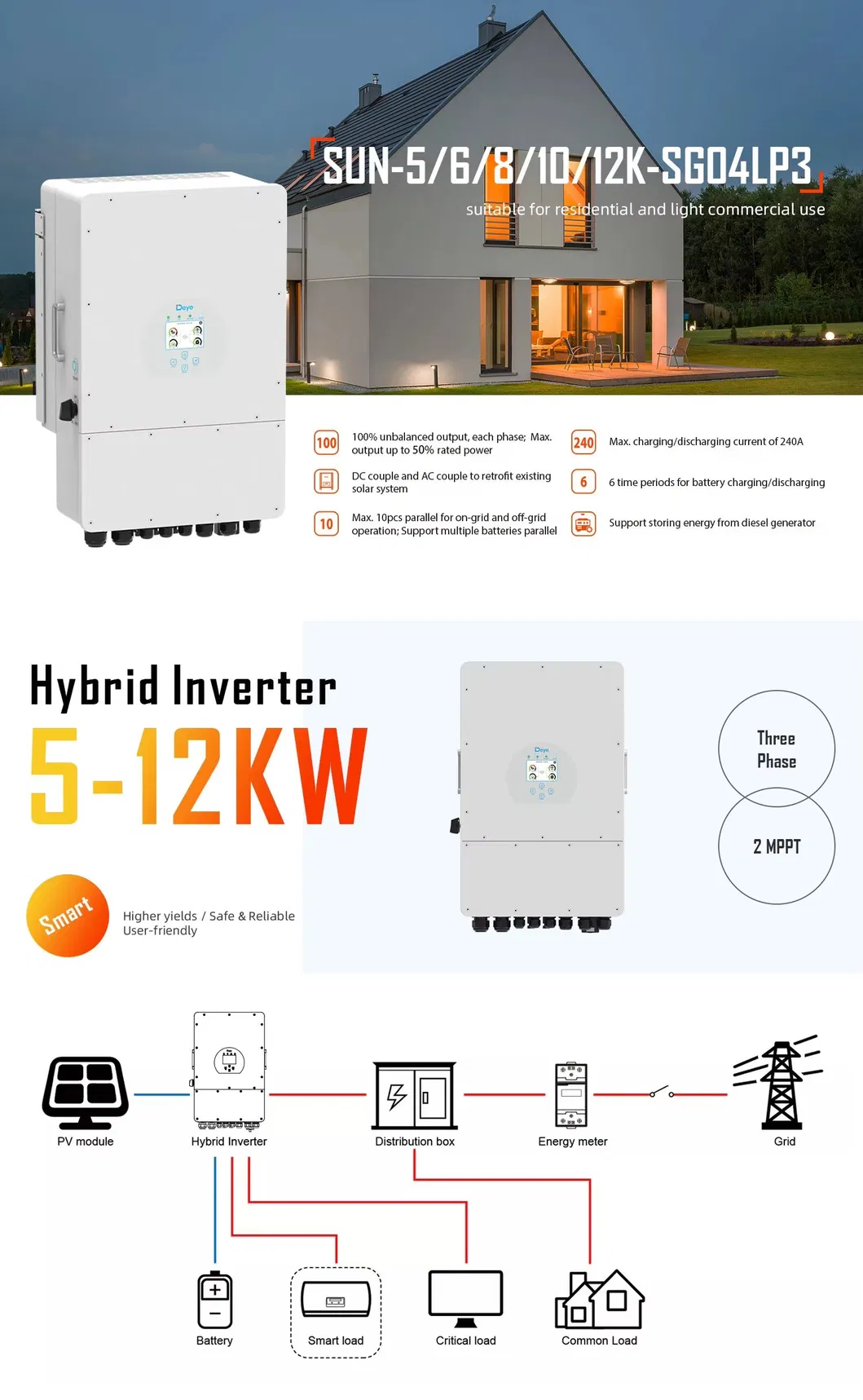

SUN-5/6/8/10/12K-SG04LP3

Phase

Three Phase

Output Power

>1000W

Certification

CE, ISO9001, TUV

Power Source

Solar Power

Battery Type

Lead-Acid or Lithium-Ion

Voltage Range

40-60V

Protection Degree

IP65

🛡️

Product Description

📋

Technical Parameters

Model	SUN-5K-SG04LP3	SUN-8K-SG04LP3	SUN-10K-SG04LP3	SUN-12K-SG04LP3
Battery Input Data
Max. Charging Current	120A	190A	210A	240A
Battery Voltage Range	40-60V
PV String Input Data
Max. DC Input Power	6500W	10400W	13000W	15600W
Rated PV Input Voltage	550V (160V~800V)
Number of MPPT	2/1+1	2/2+1
AC Output Data
Rated AC Output Power	5000W	8000W	10000W	12000W
Max. Efficiency	97.6%

🏗️

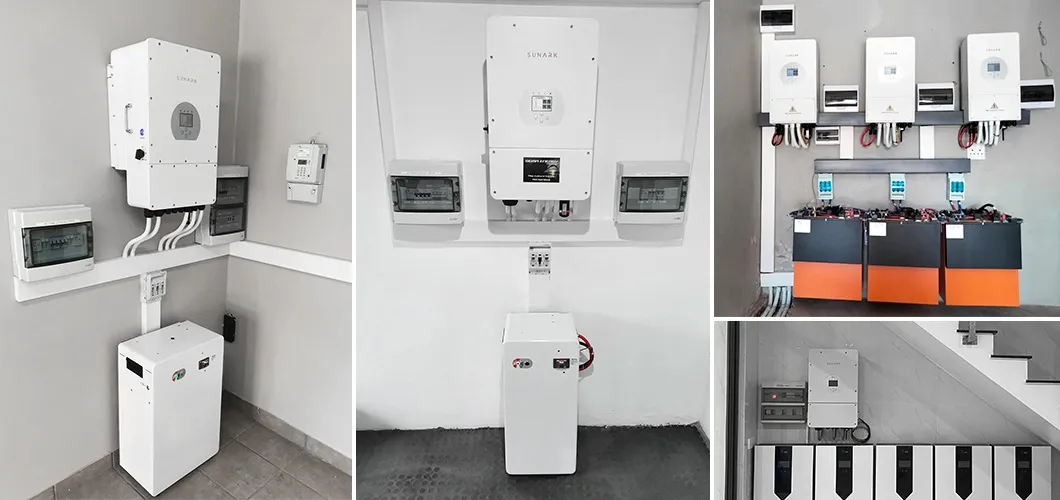

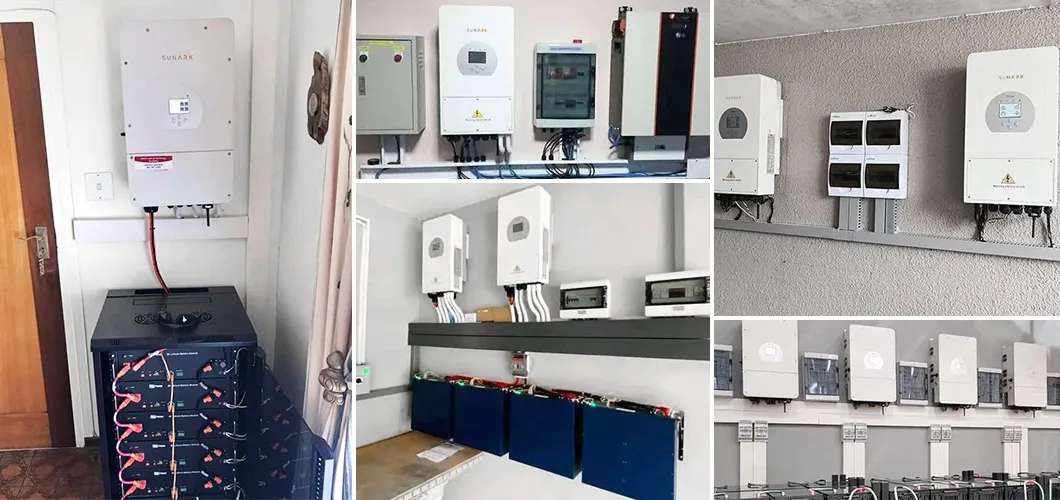

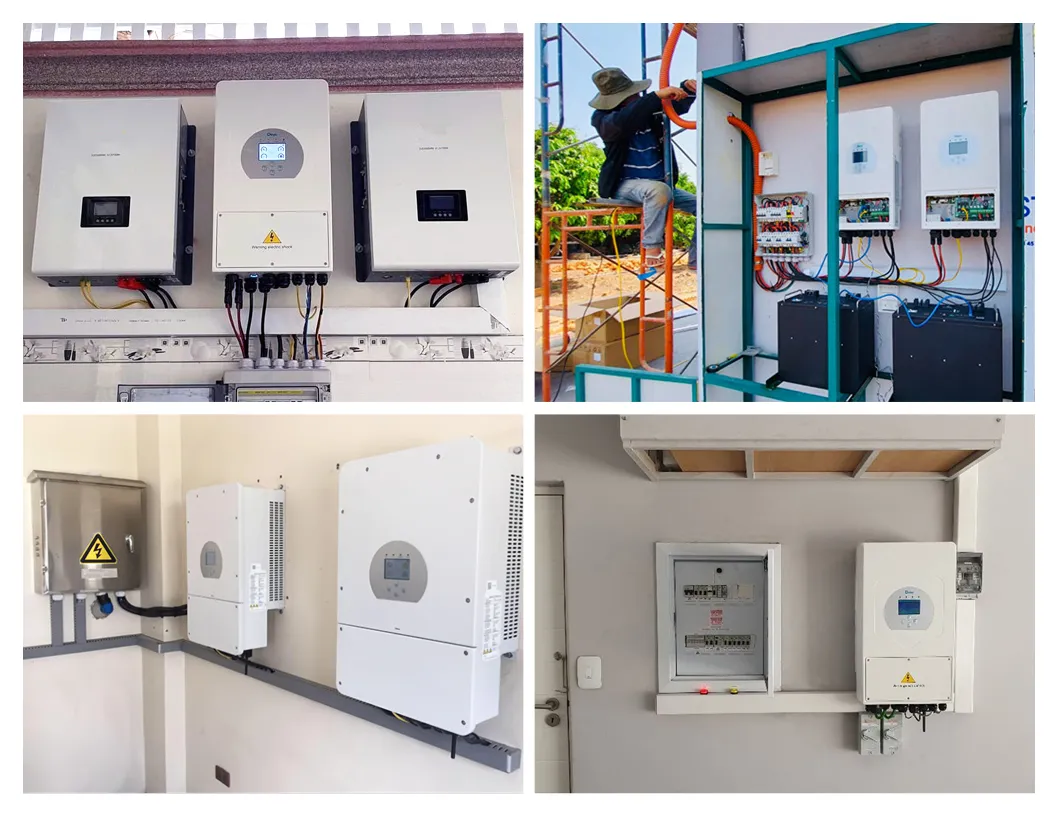

Project Case Studies

📦

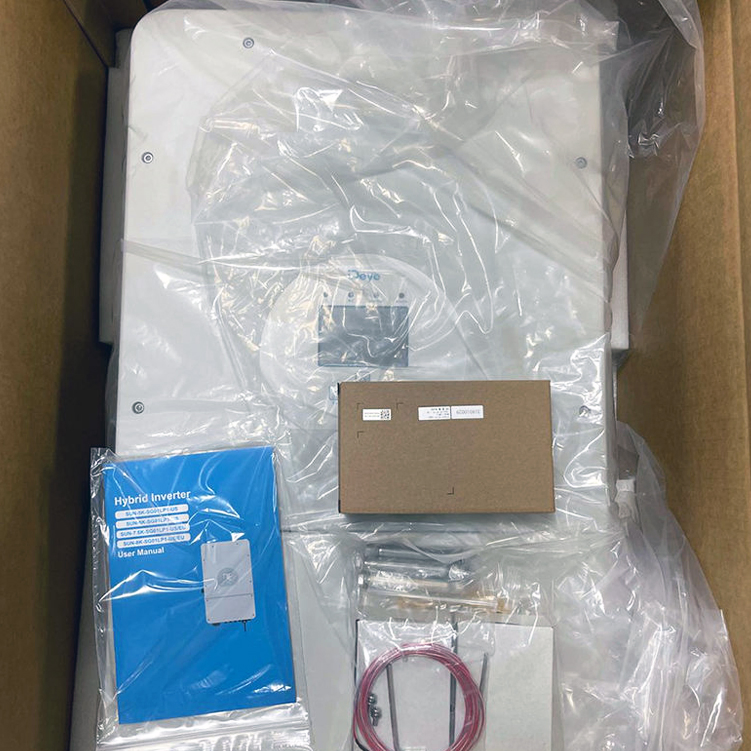

Packaging & Logistics

Package Size

45.00cm * 70.00cm * 30.00cm

Gross Weight

40.000kg

🏢

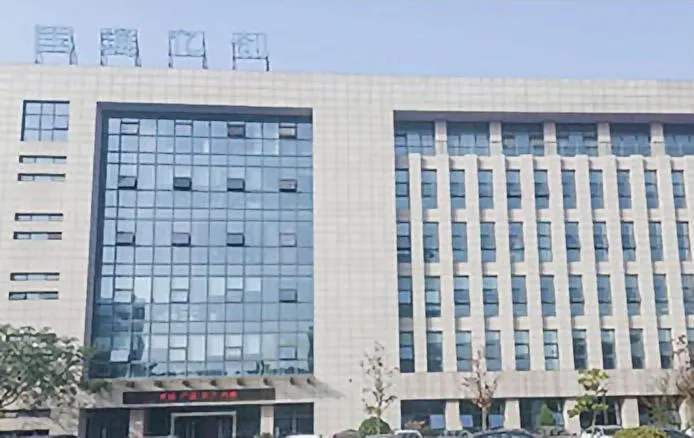

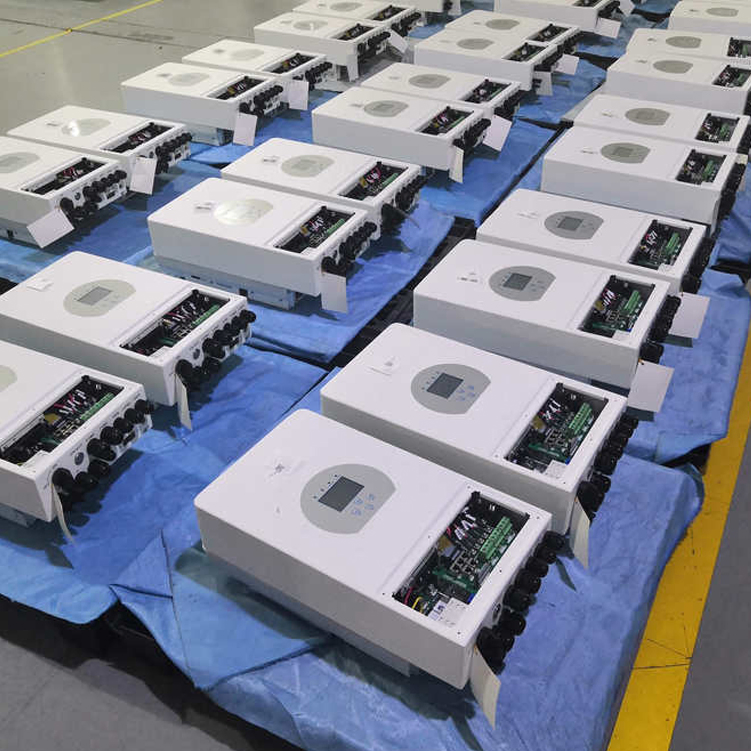

Manufacturing & Facility

❓

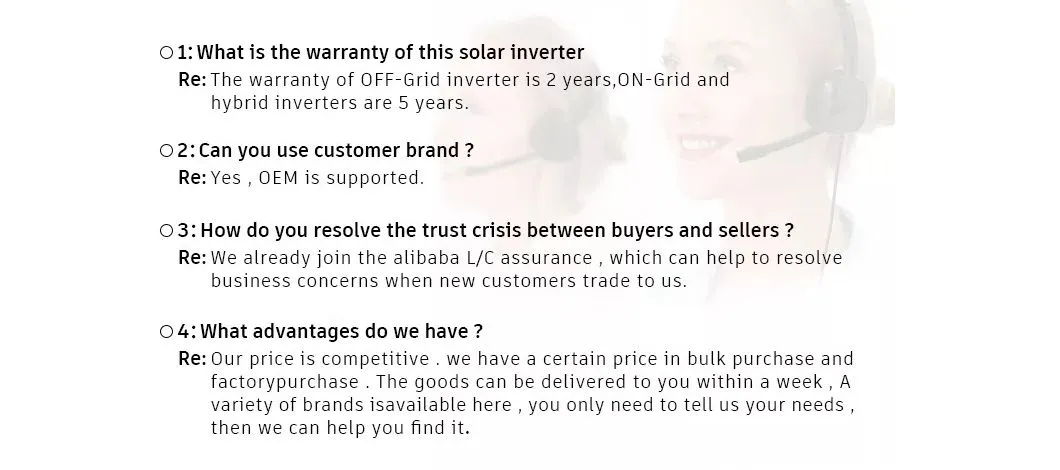

Frequently Asked Questions

Q1 What types of batteries are compatible with this inverter?

Our hybrid inverters are designed to work seamlessly with both Lead-acid and Lithium-ion batteries, featuring a wide battery voltage range of 40-60V.

Q2 Does the system support three-phase power?

Yes, this specific series (SG04LP3) is a Three Phase hybrid inverter system, ideal for larger residential or commercial applications.

Q3 What is the waterproof rating of the unit?

The inverter comes with an IP65 protection degree, making it highly resistant to dust and water, suitable for both indoor and outdoor installations.

Q4 Can it handle peak power demands during grid outages?

Yes, the inverter supports off-grid peak power of up to 2 times its rated power for 10 seconds to handle initial startup loads.

Q5 How efficient is the solar power conversion?

The series boasts a maximum efficiency of 97.6% and an MPPT efficiency of 99.9%, ensuring you get the most out of your solar panels.

Q6 What communication methods are supported for BMS?

The system supports standard RS485 and CAN communication protocols to interact with the Battery Management System (BMS).
