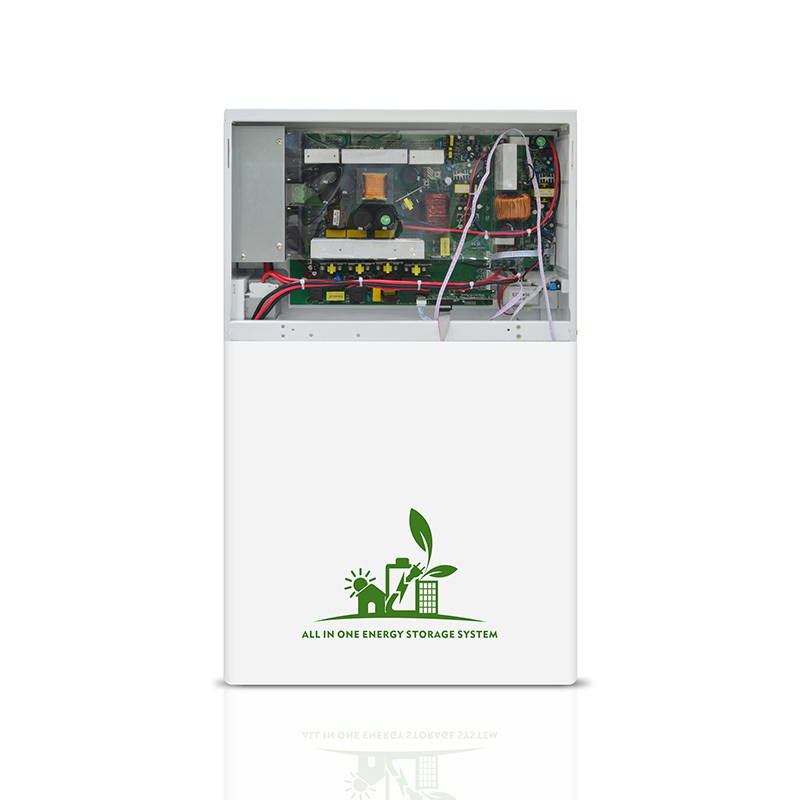

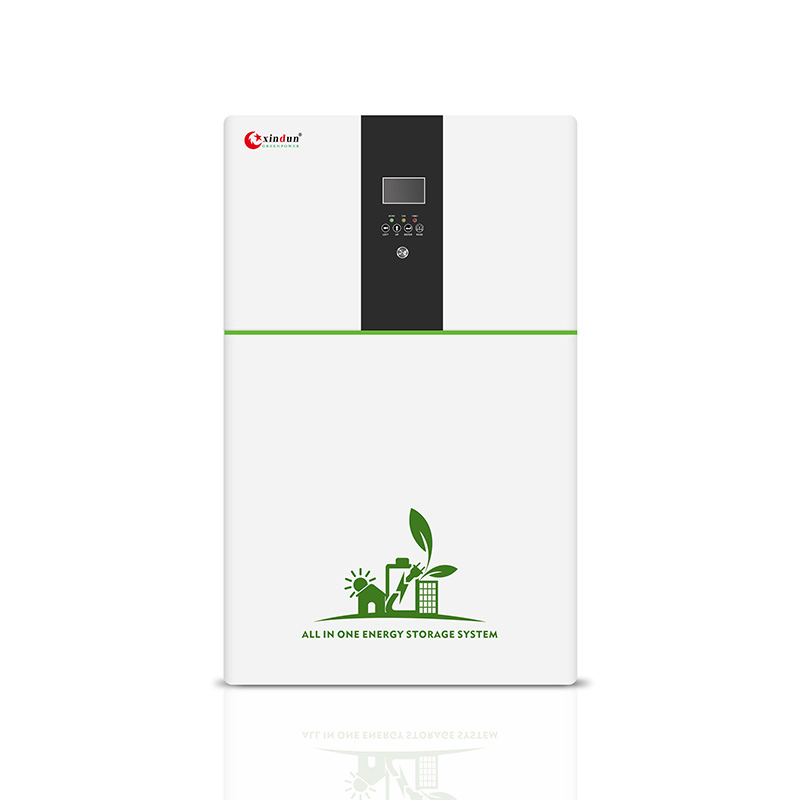

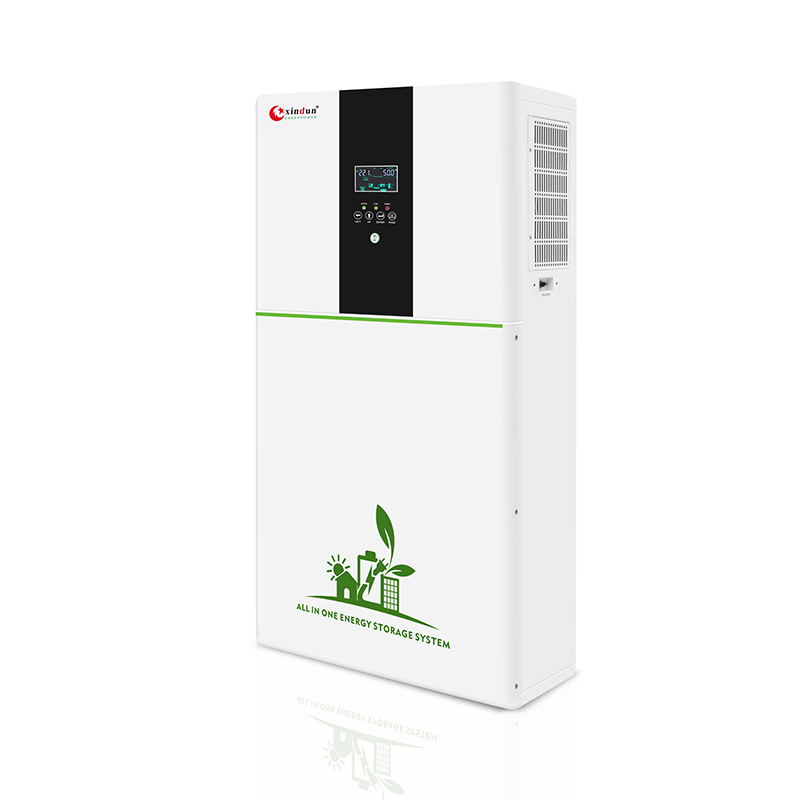

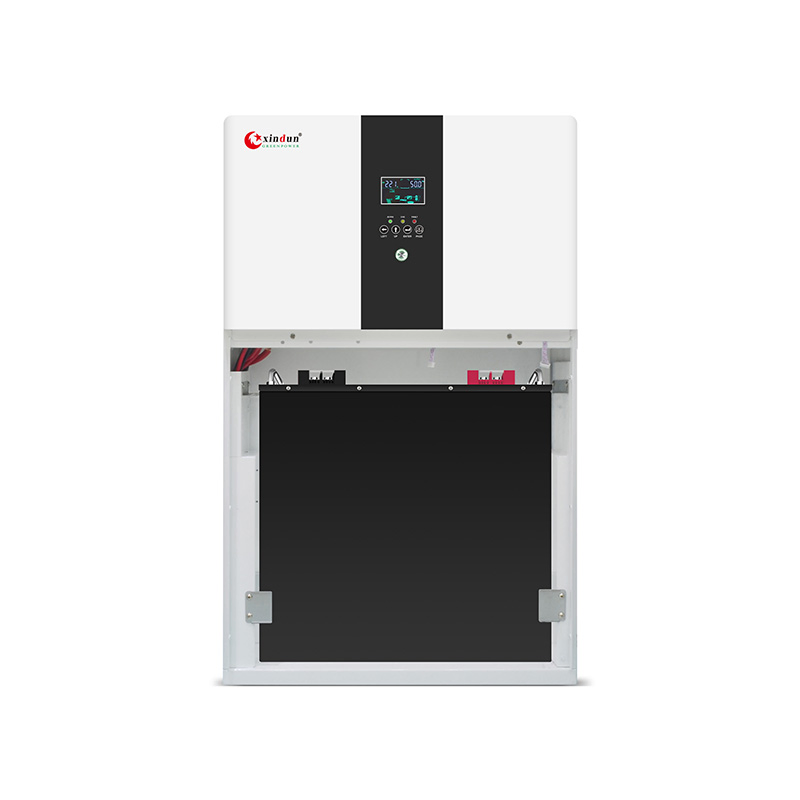

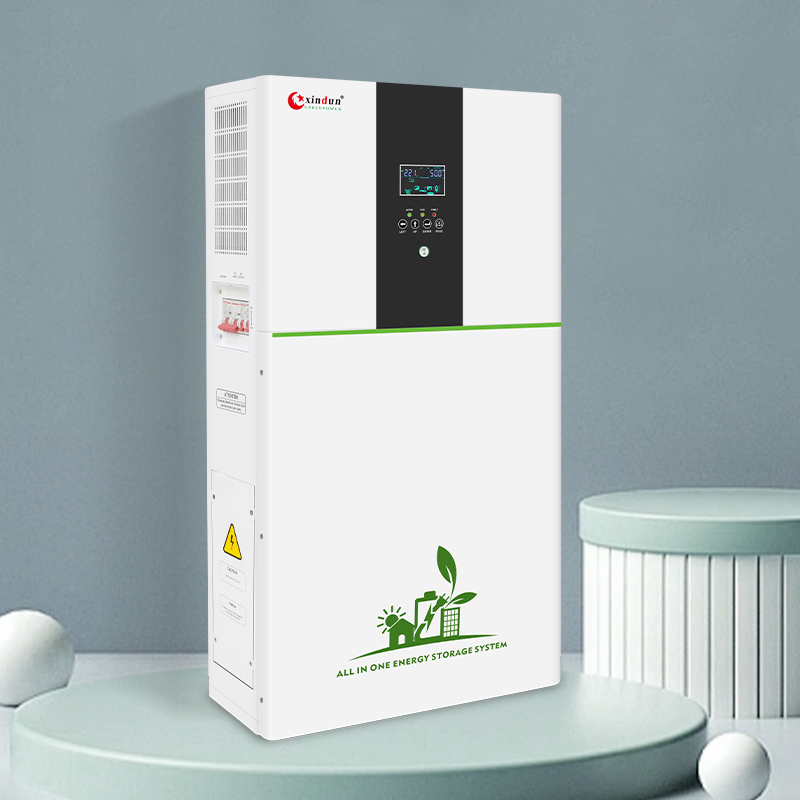

12V 48 Volt All in One Hybrid MPPT Solar Inverter Charger 48V
12V 48 Volt All in One Hybrid MPPT Solar Inverter Charger 48V
12V 48 Volt All in One Hybrid MPPT Solar Inverter Charger 48V
12V 48 Volt All in One Hybrid MPPT Solar Inverter Charger 48V
12V 48 Volt All in One Hybrid MPPT Solar Inverter Charger 48V
1 / 5
12V 48 Volt All in One Hybrid MPPT Solar Inverter Charger 48V
12V 48 Volt All in One Hybrid MPPT Solar Inverter Charger 48V
12V 48 Volt All in One Hybrid MPPT Solar Inverter Charger 48V
12V 48 Volt All in One Hybrid MPPT Solar Inverter Charger 48V
12V 48 Volt All in One Hybrid MPPT Solar Inverter Charger 48V

12V 48 Volt All in One Hybrid MPPT Solar Inverter Charger 48V

Customization: Available
After-sales Service: Yes
Warranty: Support
Send Inquiry

Product Description

Basic Specifications

Model
HES-PRO-T solar inverter charger
Certification
ISO, CE, Test Report
Rated Input
220VAC / 230VAC / 240VAC
DC Voltage
12VDC / 24VDC / 48VDC
Output Wave
Pure Sine Wave
Charging Mode
MPPT Built-in Solar Inverter
Efficiency
94% (Peak Value)
Communication
RS485/APP (WiFi or GPRS)

Key Features

✔
All-in-One Integration: Combines solar controller, inverter, and battery management into one compact machine.
✔
Elegant Design: Unique artistic aesthetic with convenient output connection ports for easy installation.
✔
Flexible Charging: Supports three energy sources: solar power, petrol/diesel generators, and grid power.
✔
Smart Monitoring: Built-in support for WiFi or Mobile App monitoring for real-time status updates.
✔
Comprehensive Protection: Equipped with overvoltage, overtemperature, and overload protection with BMS reporting.

Product Highlights

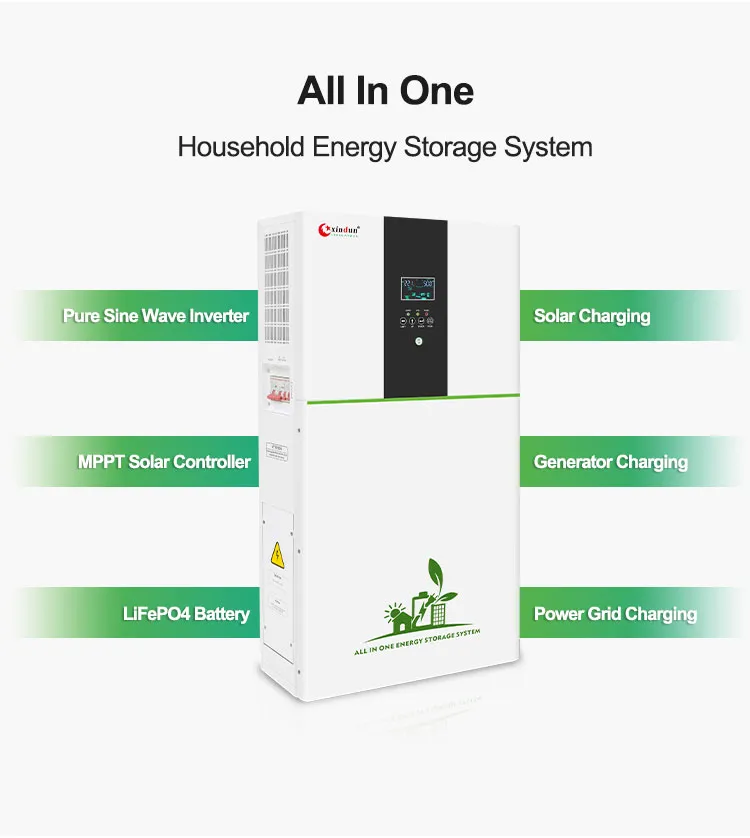

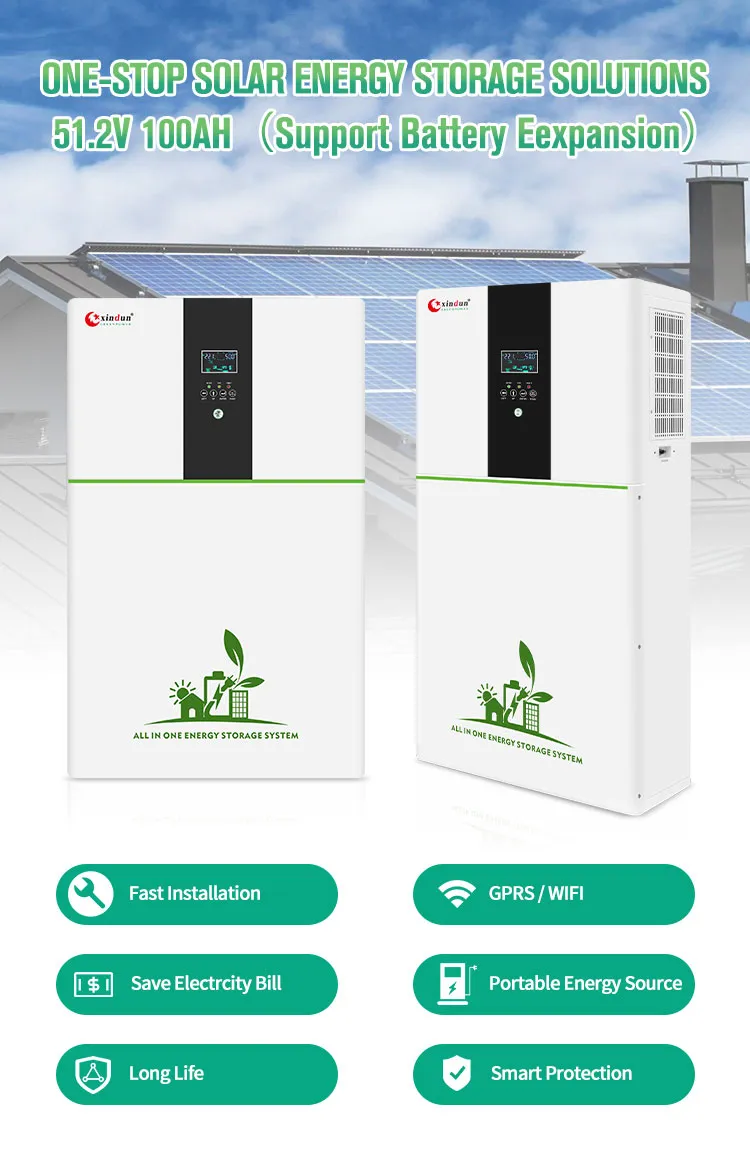

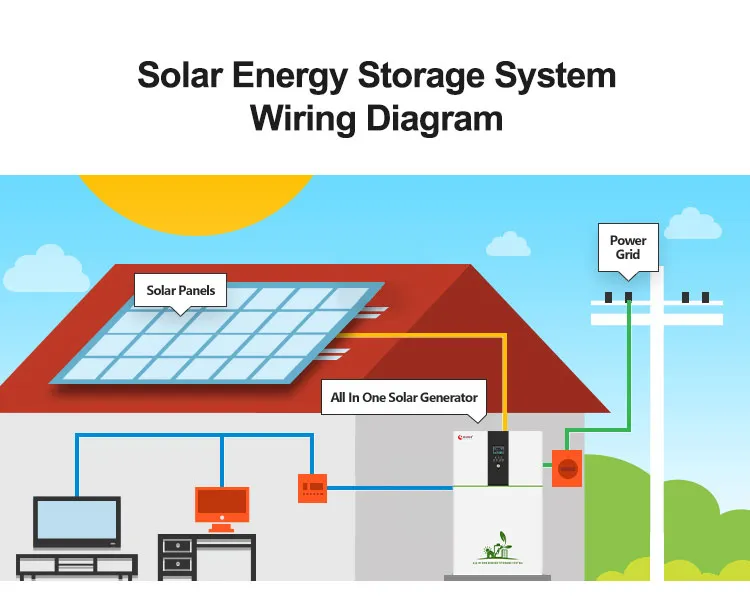

Solar Inverter Feature 1 Solar Inverter Feature 2 Solar Inverter Feature 3

Product Description

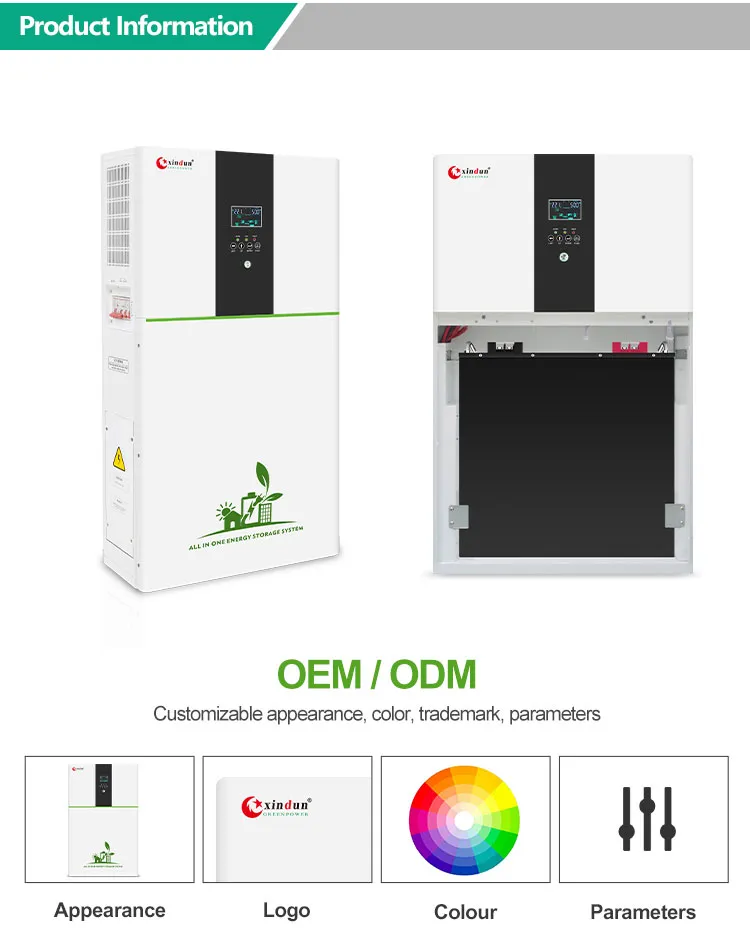

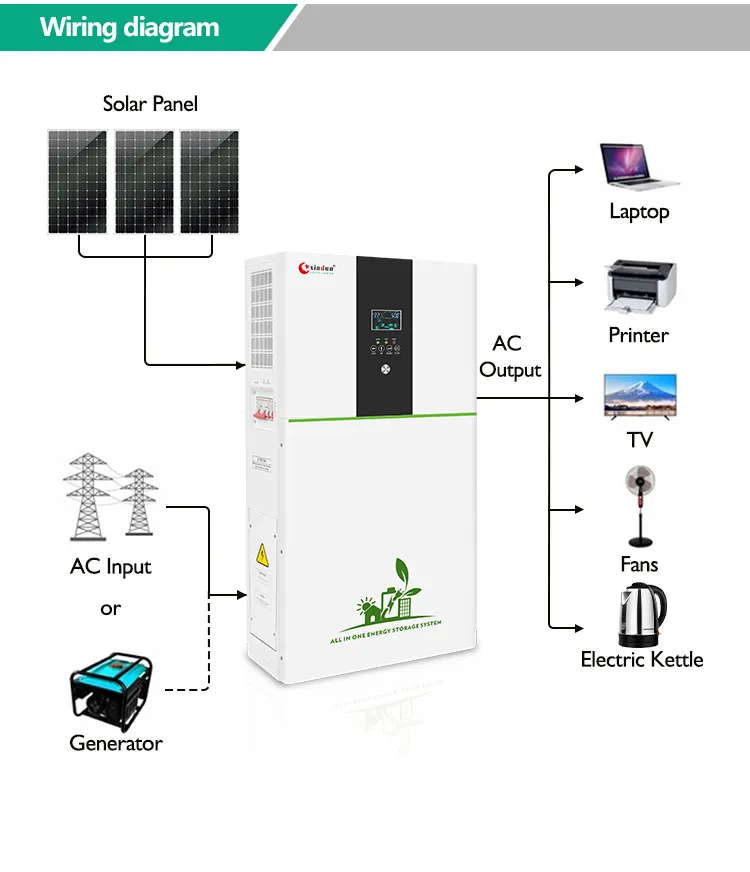

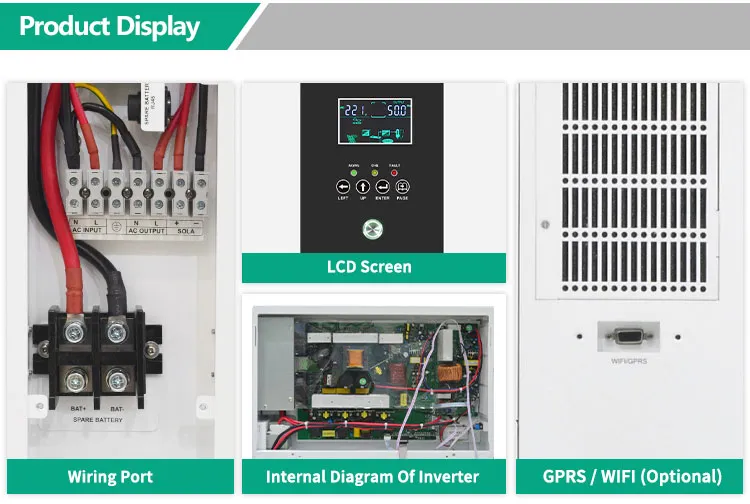

Product View 1 Product View 2 Product View 3

Technical Parameters

Model: HES-PRO-T 10212 15224 20224 32224 50248 72248 80248
Rated Power 1000W 1500W 2000W 3200W 5000W 7200W 8000W
Battery Voltage 12VDC 24VDC 48VDC
Max Charging (PV+AC) 120A 100A 110A 100A 100A 150A 150A
Max PV Input (Voc) 120VDC 500VDC 500VDC 500VDC 500VDC
Output Wave Pure Sine Wave
Dimensions (mm) 355*272*91.5 400*315*101.5 440*342*101.5 525*355*115

Application & Production

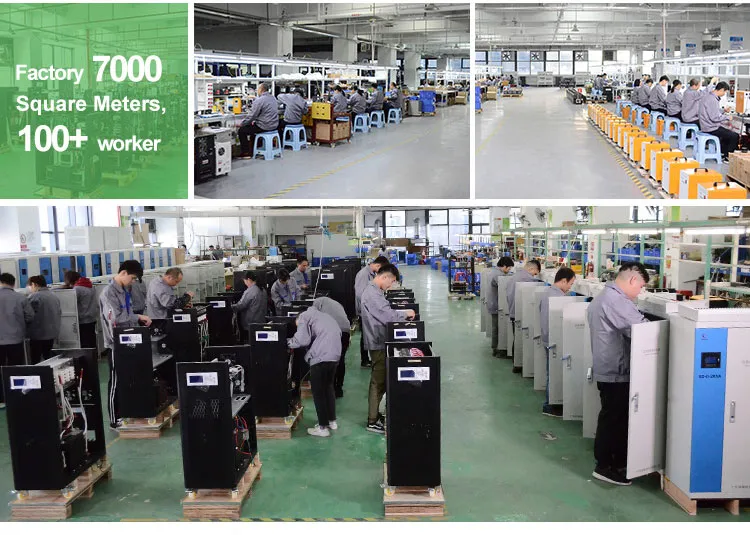

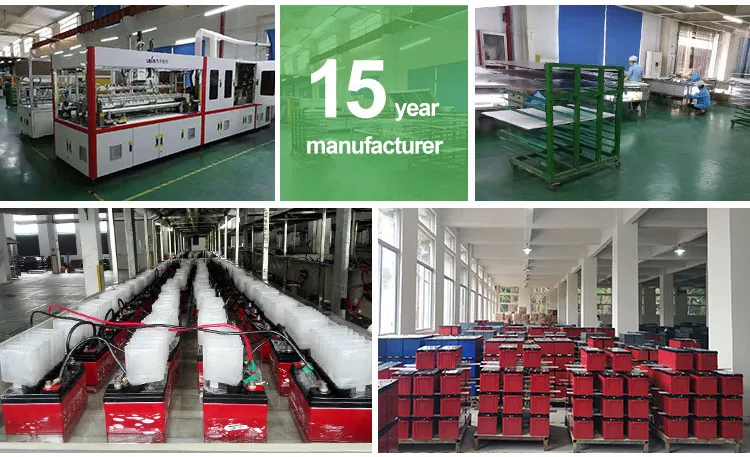

Application Scenarios Packing and Delivery Workshop 1 Workshop 2 Factory Overview 1 Factory Overview 2

Shipping Information

  • Sample Delivery: Fedex, DHL, TNT, or UPS (Door-to-door).
  • Batch Orders: By air or by sea for bulk goods.
  • Flexible Logistics: Support for customer-specified freight forwarders or negotiable methods.
  • Lead Time: 7 days for samples; 10 to 25 days for batch production.

Frequently Asked Questions

What is an all-in-one solar inverter charger?
It is an integrated system that combines a pure sine wave inverter, an MPPT solar charge controller, and battery management into a single unit, simplifying installation and saving space.
Can this inverter work with different battery types?
Yes, it supports Lead-acid batteries, Lithium batteries, and customized battery configurations to suit various energy storage needs.
How can I monitor the performance of the system?
The system supports RS485 communication and can be connected to a mobile app via WiFi or GPRS for real-time remote monitoring.
What charging priorities are available?
Users can configure the working mode to Mains Priority, Battery Priority, or Photovoltaic (Solar) Priority based on their specific requirements.
What safety protections are built into the device?
It includes comprehensive protection against battery undervoltage/overvoltage, output overload, short circuits, and intelligent temperature control.
Is the cooling system automatic?
Yes, the device features an intelligent cooling fan control system that adjusts speed based on the internal temperature to ensure efficiency and longevity.
