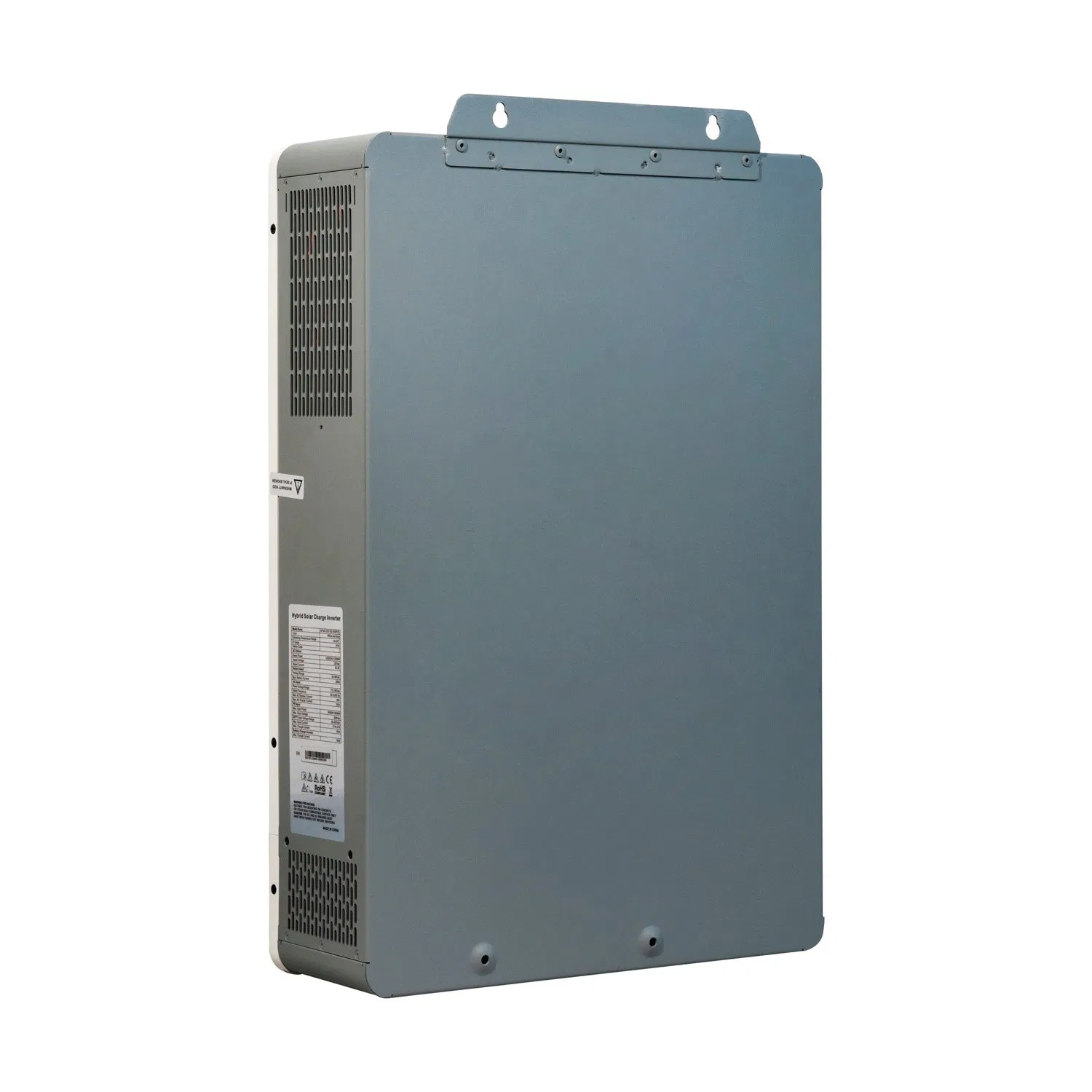

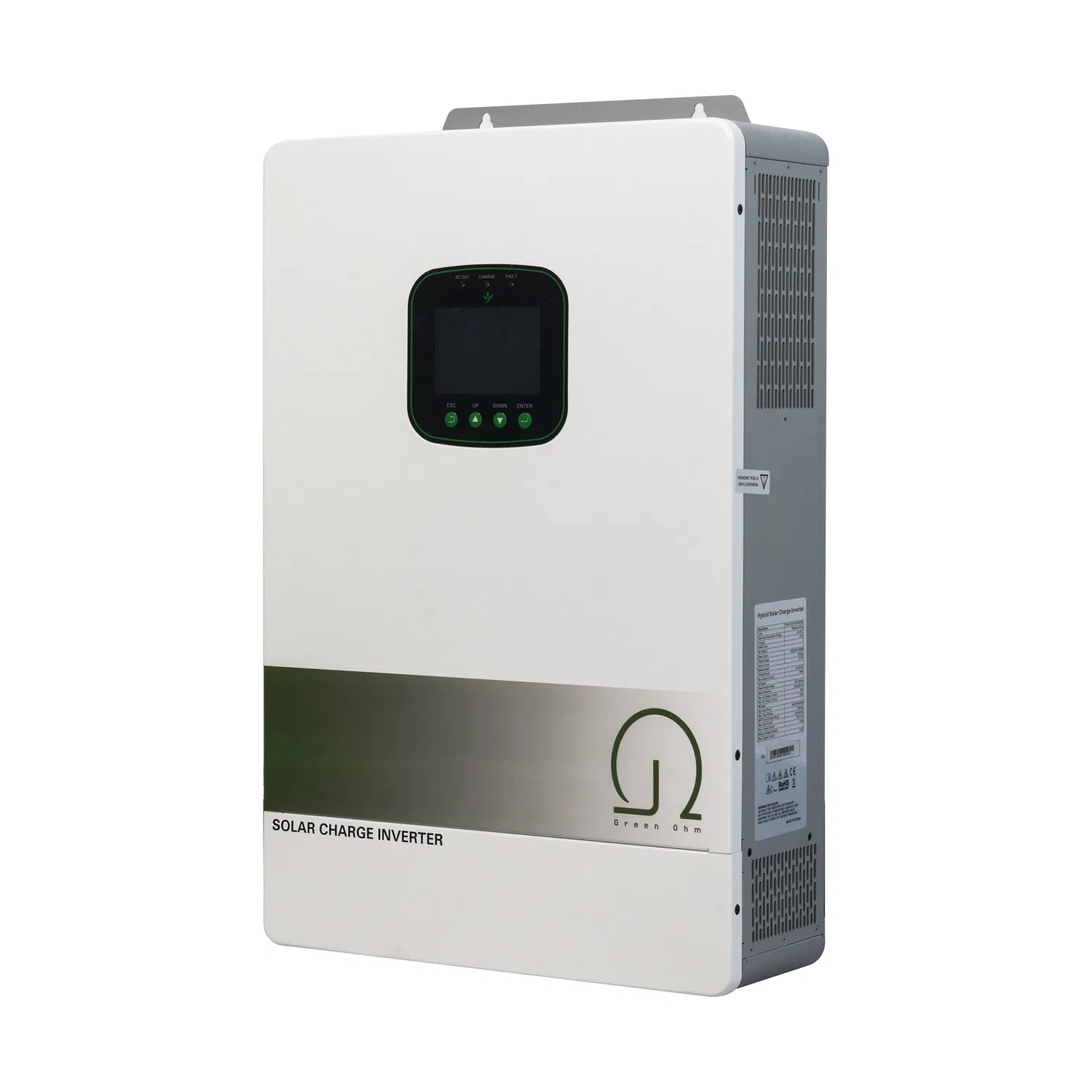

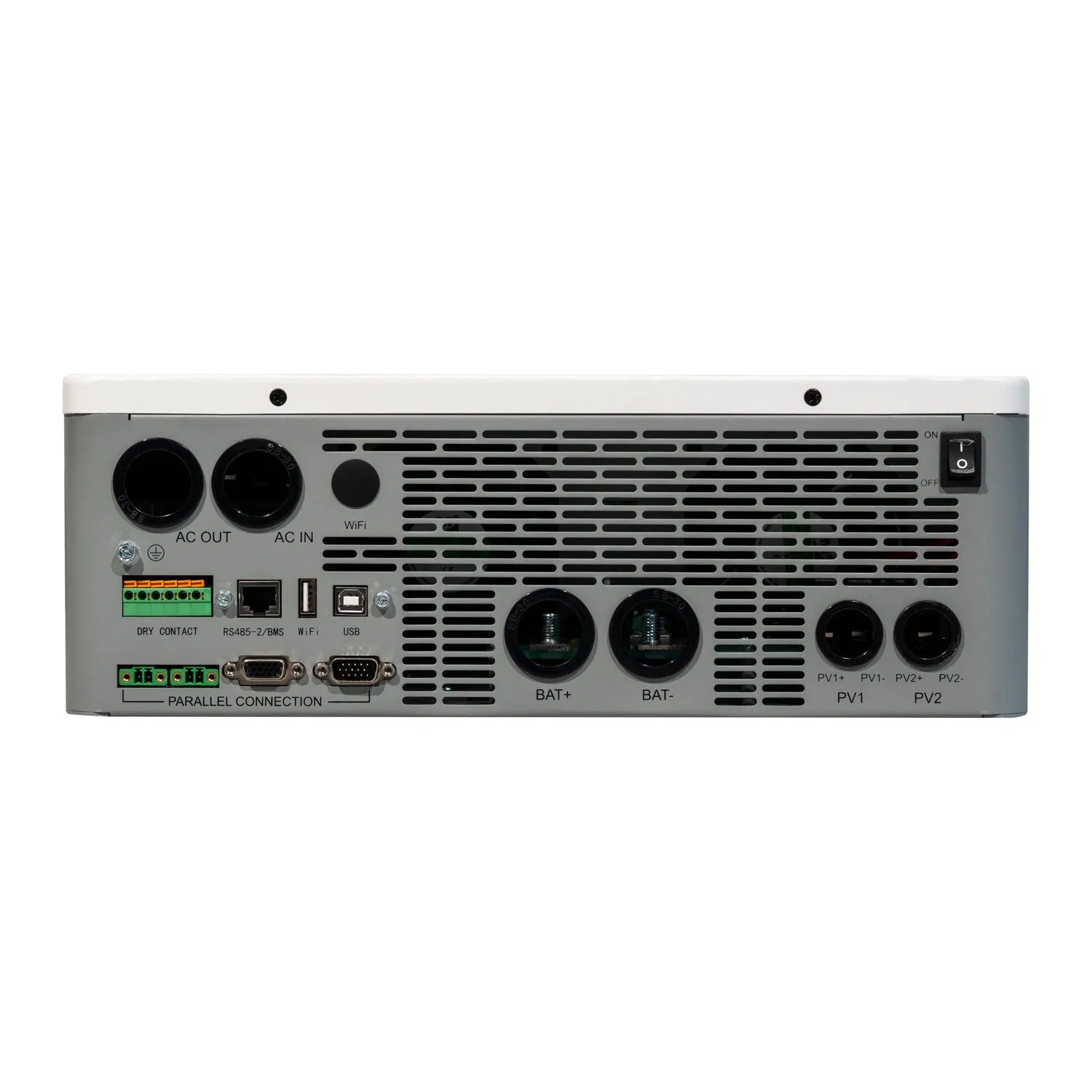

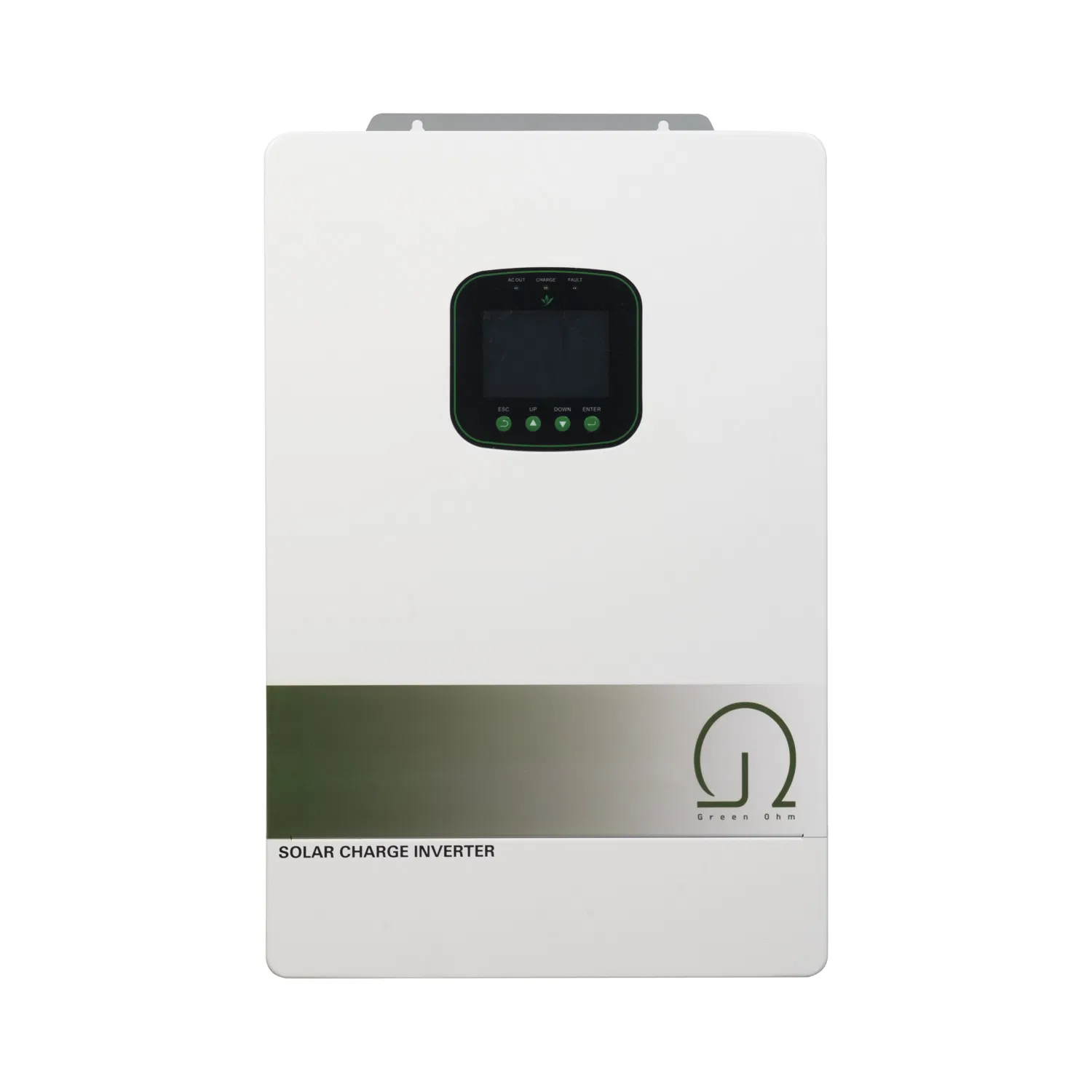

12kw Three Phase off-Grid Inverter for Commercial Solar and Energy Storage Project
12kw Three Phase off-Grid Inverter for Commercial Solar and Energy Storage Project
12kw Three Phase off-Grid Inverter for Commercial Solar and Energy Storage Project
12kw Three Phase off-Grid Inverter for Commercial Solar and Energy Storage Project
12kw Three Phase off-Grid Inverter for Commercial Solar and Energy Storage Project
1 / 5
12kw Three Phase off-Grid Inverter for Commercial Solar and Energy Storage Project
12kw Three Phase off-Grid Inverter for Commercial Solar and Energy Storage Project
12kw Three Phase off-Grid Inverter for Commercial Solar and Energy Storage Project
12kw Three Phase off-Grid Inverter for Commercial Solar and Energy Storage Project
12kw Three Phase off-Grid Inverter for Commercial Solar and Energy Storage Project

12kw Three Phase off-Grid Inverter for Commercial Solar and Energy Storage Project

Customization: Available
Nature of Source Flow: Active Inverter
Certification: ISO9001, CE
Send Inquiry

Product Description

!

Basic Information

Model NO.

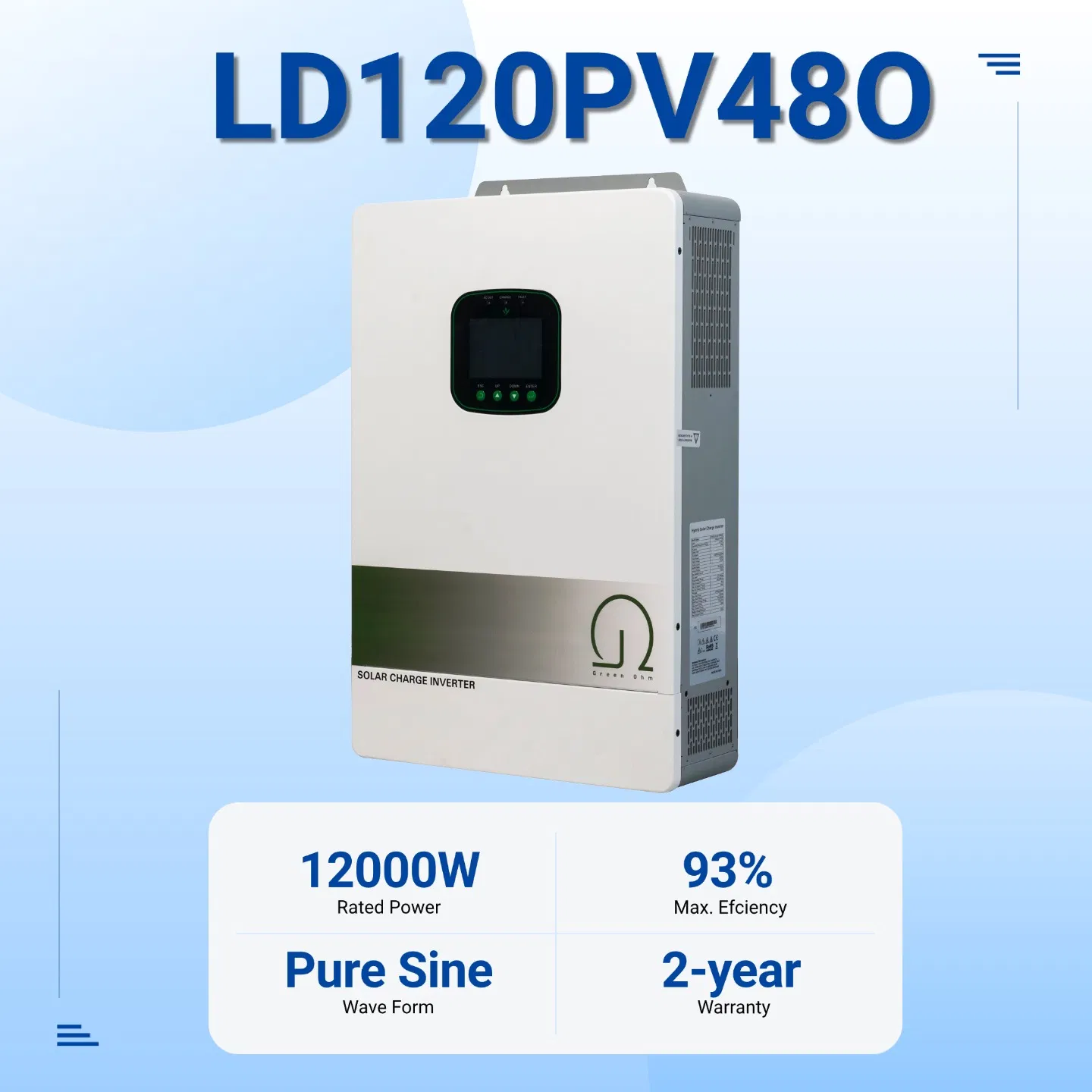

LD120PV48O*
Output Power
>1000W
Grid Type
off-Grid Inverter
Output Type
Single
Circuit Topologies
Full-Bridge Type
Nature of Wave String
Sine Wave Inverter
Surge Power
24 kVA
Rated Input Voltage
220/230/240 VAC
Origin
China
HS Code
8441200000
P

Product Presentation

Inverter Overview
Inverter Details
Feature Highlights
Operation Display

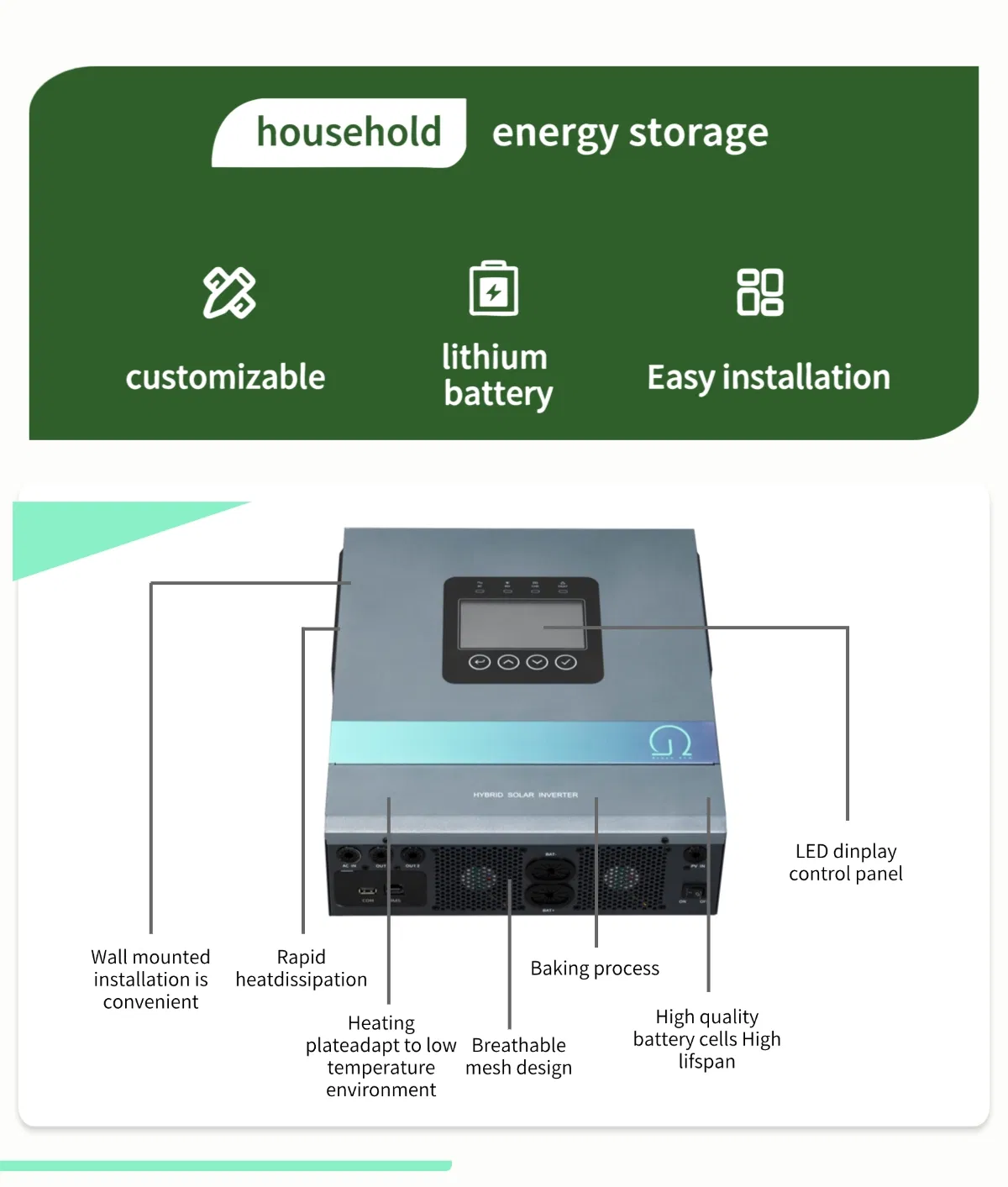

Technical Layout

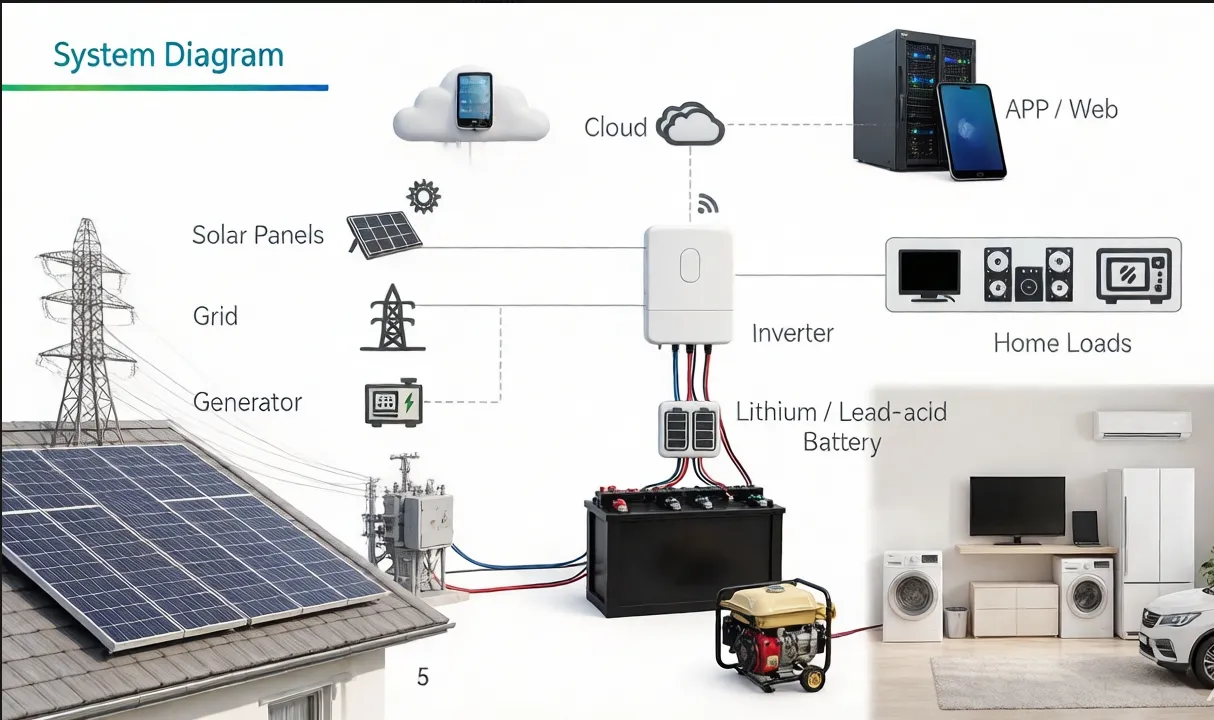

Connection Diagram
S

Technical Specification

Parameter Category LD62PV48H LD120PV48H
Inverter Mode
Rated Output Power6200W12000W
Output Voltage WaveformPure Sine Wave
Peak Power12000VA24000VA
Maximum Efficiency>94%
AC Charging
Maximum Charging Current80A150A
Battery TypeLead-Acid or Lithium Battery
PV Charging (MPPT)
Max. PV Open Circuit Voltage500Vdc
MPPT Voltage Range90Vdc~450Vdc
Maximum PV Input Power6000W9000W + 9000W
Max. Solar Charging Current100A150A
L

Packaging & Logistics

Package Size
49.50cm * 42.50cm * 12.00cm
Gross Weight
15.000kg
Certification
CE (IEC61009-1,2)
EMC Level
EMC61000, C2
C

Manufacturing Excellence

Factory Floor
Production Line
Quality Control
Testing Lab
Warehouse
Shipping Area
?

Frequently Asked Questions

Are you a trading company or a manufacturer?
We are a professional manufacturing factory. Our production facilities are equipped to handle high-volume orders with strict quality control.
Does your company provide customized manufacturing services?
Yes, we provide comprehensive OEM and ODM services. Our experienced R&D team can develop tailored solutions based on specific customer requirements.
What is the typical delivery time for orders?
For items currently in stock, the delivery time is approximately 1 month. Lead times for custom orders may vary based on project complexity.
Can I request samples for testing?
Yes, samples are available. Please note that customers are responsible for the cost of the sample and the associated freight charges.
What are the standard payment terms?
For orders under $3,000, 100% payment is required before shipment. For orders over $3,000, we require a 30% deposit with the remaining 70% due before shipment.
Does the inverter support parallel operation?
Yes, this series supports parallel operation of 1 to 6 units, making it ideal for scalable commercial and energy storage projects.
